Axis Communications AXIS 30W Midspan/IEEE 802.3AT UK Type 2 Class 4 P
search
  • Axis Communications AXIS 30W Midspan/IEEE 802.3AT UK Type 2 Class 4 P

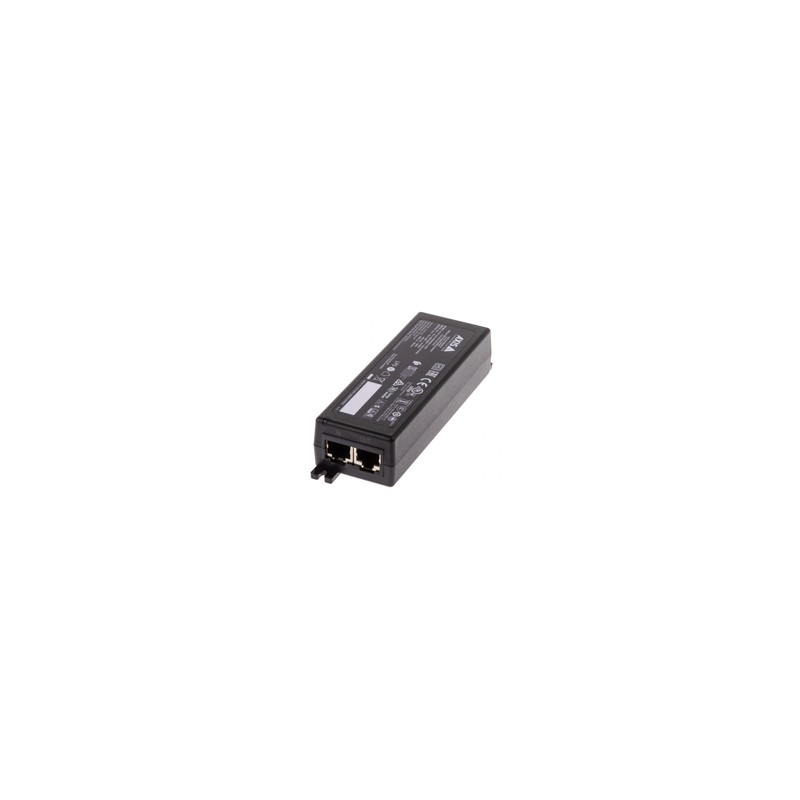

Axis Communications AXIS 30W Midspan/IEEE 802.3AT UK Type 2 Class 4 P

2 348 Kč
S DPH

Momentálně nedostupné

Kód: 02172003

  • Barva: Černá
  • Typ: Midspan
  • Certifikace: IS 13252,UL 60950-1, UL 62368-1, CCC, EMC EN 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, CISPR 24, EAC, IEC 60068-2-1, IEC 600
  • Hmotnost: 145 g
  • Šířka: 46 mm
  • Výška: 30 mm
Všechny parametry
30W, 56V, 46x140.1x30mm, 145g

Popis

AXIS 30 W Midspan is a 1-port midspan that can deliver up to 30 W to one network device. It is IEEE 802.3af (15 W) and IEEE 802.3at (30 W) compliant, which ensures compatibility with most Axis network products with built-in PoE. Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. In a single network cable, a PoE midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure.

Parametry

BarvaČerná
TypMidspan
CertifikaceIS 13252,UL 60950-1, UL 62368-1, CCC, EMC EN 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, CISPR 24, EAC, IEC 60068-2-1, IEC 600
Hmotnost145 g
Šířka46 mm
Výška30 mm
Hloubka140.1 mm
Připojení na síť EthernetAno
Provozní rozsah teplot (T-T)-20 - 40 °C
Doporučená provozní relativní vlhkost-40 - 75 %
Vstupní napětí100-240 V
LED indikátoryAno
Výstupní napětí56 V
Stručný návod k instalaciAno
Frekvence vstupního napětí47-63 Hz
KompatibilitaM5054, M5055, M5065, M5525-E, P5414-E, P5415-E, P5654-E, P5655-E, Q6074, Q6074-E, Q6075, Q6075-E, Q6128-E, Q6154-E, Q6155-E, M1065-L, M1134, M1135, M1135-E, M1137, M1137-E, M1145-L, M2025-LE, M2026-LE Mk II, P1214, P1214-E, P1224-E, P1244, P1245, P1254, P
Kompatibilita značkyAxis
Kód harmonizovaného systému85299020
NeobsahujeHalogen,PVC
Materiál krytuPlastic
Jmenovitý výkon30 W
