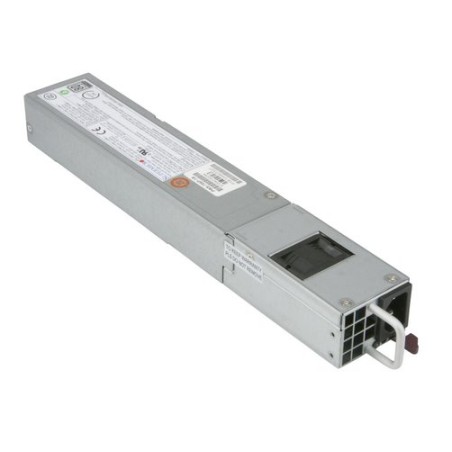

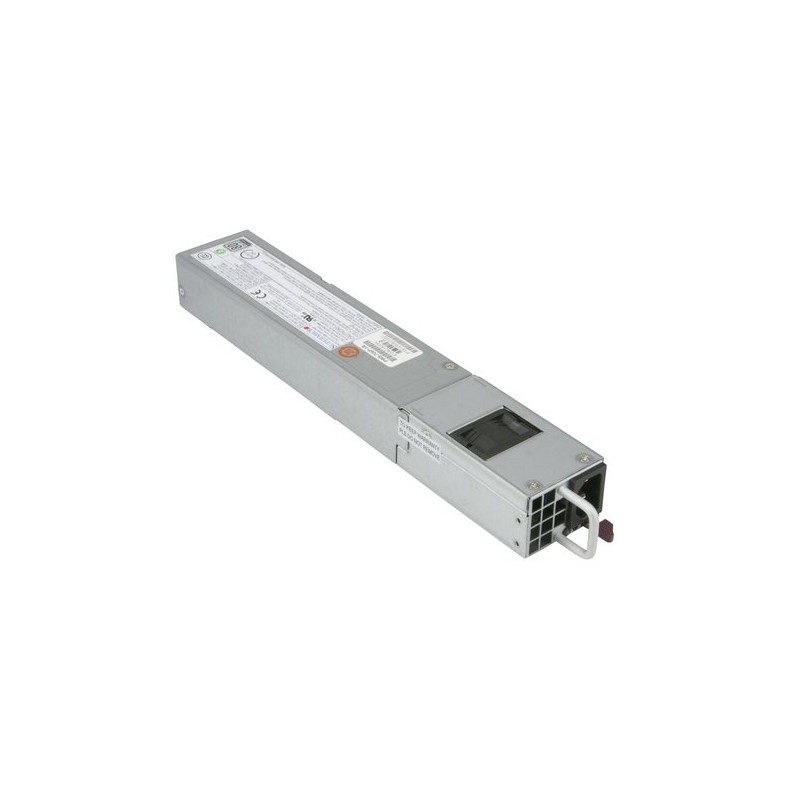

Supermicro 750W 1U Redundant Power Supply

The Supermicro PWS-706P-1R is an 80 Plus Platinum level redundant power supply capable of supplying 750W output power at 91% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 100,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro. Total Power Output 700W / 750W Type Module Type of Power Supply Power Supply Form Factor 1U Dimension (W x H x L) 54.5 x 40 x 320 mm +5V N/A +12V 58/62A +3.3V N/A 5V Standby 3A Input Voltage Range 100-140V, 200-240V Input Frequency Range 50-60Hz Input Current Range 8.0-6.0A, 4.5-3.8A Output Type Gold Finger (54.5 Wide Molex) 8Pin / 4Pin (12V) Connector N/A PFC Yes Voltage / Current Yes Energy Efficiency 91% Peak 80 Plus Certification 80 Plus Platinum Validated Systems AS-1113S-WN10RT, AS-1114S-WN10RT, SYS-1018R-WC0R, SYS-1028R-WC1R, SYS-1028R-WC1RT, SYS-1028R-WTNR, SYS-1028R-WTNRT, SYS-1028R-WTR, SYS-1028R-WTRT, SYS-1029P-WTR, SYS-1029P-WTRT, SYS-6018R-WTR, SYS-6018R-WTRT, SYS-6019P-WTR Validated Chassis CSE-113AC2-R706WB2, CSE-116AC2-R706WB, CSE-116AC2-R706WB2, CSE-116TQ-R706WB, CSE-815TQ-R706WB, CSE-815TQC-R706CB, CSE-815TQC-R706WB, CSE-815TQC-R706WB2, CSE-LA15TQC-R706AW, CSE-LB13AC2-R706AW, CSE-LB16AC2-R706AW, CSE-LB16AC10-R706AW Warranty 1 year warranty Product Environmental Compliance RoHS and REACH compliant, details available upon request
