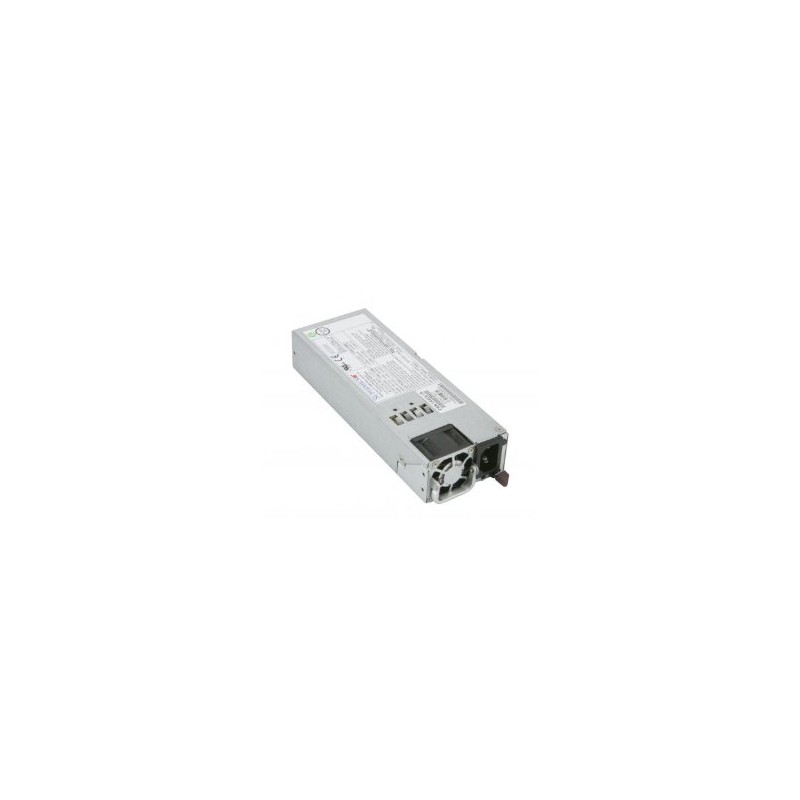

SUPERMICRO 1620W REDUNDANT POWER MODULE

The Supermicro PWS-1K62A-1R is an 80 Plus Titanium power supply capable of supplying 1000W low-line and 1600W high-line output power at 96% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro. Total Power Output 1000W / 1600W Type Redundant Type of Power Supply Power Supply Form Factor 1U Dimension (W x H x L) 73.5 x 40 x 203mm +5V N/A +12V 83.3A / 133A +3.3V N/A 5V Standby 12Vsb 2.1A Input Voltage Range 100-127V / 200-240V Input Frequency Range 50-60Hz Input Current Range 13-9A / 10-8A Output Type Gold Finger (25 Pair Connector) 8Pin / 4Pin (12V) Connector N/A PFC Yes Voltage / Current Yes Energy Efficiency 96% Peak 80 Plus Certification 80 Plus Titanium Validated Systems AS-2023US-TR4, AS-2123US-TN24R25M, SSG-1029P-NES32R, SSG-1029P-NMR36L, SSG-2028R-E1CR48L, SSG-2028R-E1CR48N, SSG-2028R-NR48N, SSG-2029P-E1CR48H, SSG-2029P-E1CR48L, SSG-6028R-E1CR24L, SSG-6028R-E1CR24N, SSG-6029P-E1CR16T, SSG-6029P-E1CR24H, SSG-6029P-E1CR24L, SSG-6129P-ACR12N4G, SYS-1029U-TN12RV-NEBS, SYS-1029UZ-TN20R25M, SYS-2028U-TN24R4T+, SYS-2029U-MTNRV, SYS-2029U-TN24R4T, SYS-2029UZ-TN20R25M, SYS-2029UZ-TR4+, SYS-2049U-TR4, SYS-6029UZ-TR4+, SYS-7088B-TR4FT, SYS-7089P-TR4T Validated Chassis CSE-121EF-R1K62P, CSE-829HE1C4-R1K62LPB, CSE-829U2TS-R1K62P-T Warranty 1 year warranty Product Environmental Compliance RoHS and REACH compliant, details available upon request
