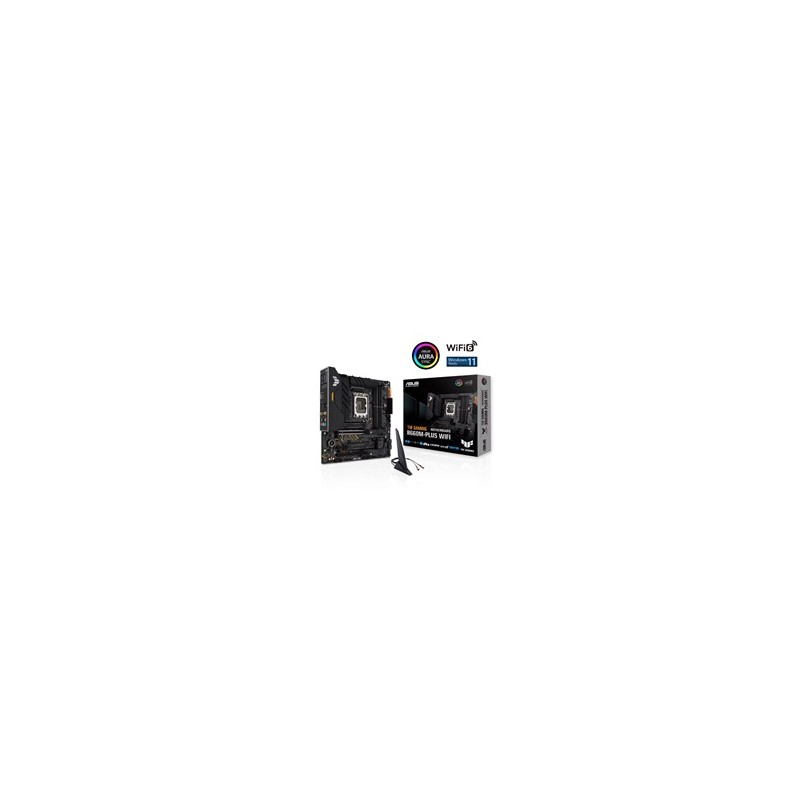

ASUS MB Sc LGA1700 TUF GAMING B660M-PLUS WIFI, Intel B660, 4xDDR5, 1xDP, 1xHDMI, WIFI, mATX

ASUS MB TUF GAMING B660M-PLUS WiFi Intel B660 (LGA 1700) mATX motherboard, 10+1 DrMOS Power stages , PCIe 5.0 support, DDR5 6000(OC), Dual PCIe 4.0 M.2 Slots with Heatsinks, Intel Wi-Fi 6, Realtek 2.5Gb Ethernet, Rear USB 3.2 Gen 2x2 Type-C, Front USB 3.2 Gen 1 Type-C, Aura Sync, Two-way AI Noise Cancelation Intel LGA 1700 socket: Ready for 13th & 12th Gen Intel Core™ processors Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+ Latest connectivity: PCIe 5.0 slot, DDR5 memory, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C, front panel header for USB 3.2 Gen 1 Type-C and Thunderbolt 4™ support Made for online gaming: Intel WiFi 6, Realtek 2.5Gb Ethernet, TUF LANGuard Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences CPU Intel Socket LGA1700 for 12th Gen Intel Core™, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel B660 Chipset Memory 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II *Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. Graphics 1 x DisplayPort** 1 x HDMI port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' resolution. Expansion Slots Intel 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot * Supports Intel Optane Memory H Series on PCH-attached PCIe slot. Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard Wireless & Bluetooth Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2* *Bluetooth v5.2 function will be ready in Windows 11 or later. USB Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header Special Features ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - VRM heatsink design - M.2 heatsinks ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers Software Features ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 Rubber Package 1 x M.2 SSD screw package 1 x TUF Gaming sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User guide Operating System Windows 11 64-bit, Windows 10 64-bit Form Factor mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
