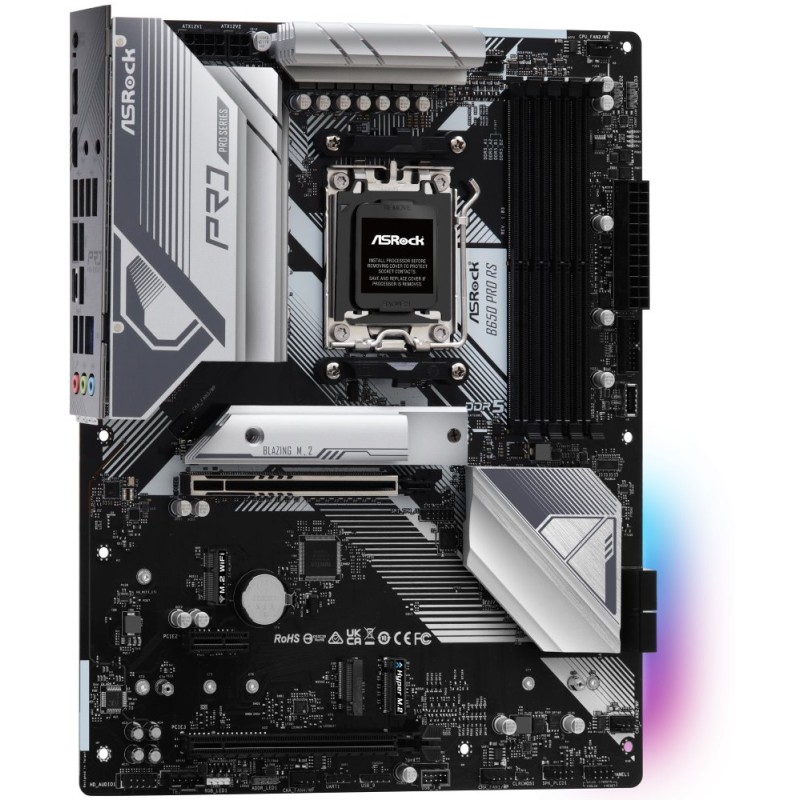

ASRock MB Sc AM5 B650 PRO RS, AMD B650, 4xDDR5, 1xDP, 1xHDMI

B650 Pro RS Supports AMD Ryzen™ 7000 Series Processors 14+2+1 Phase Power Design, SPS 4 x DDR5 DIMMs, supports up to 6200+(OC) 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key-E for WiFi Graphics Output Options: 1 HDMI, 1 DisplayPort 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen3x2 & SATA3), 4 SATA3 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front), 9 USB 2.0 (6 Rear, 3 Front) Realtek 2.5G LAN Unique Feature Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 14+2+1 Power Phase, 60A SPS with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker CPU - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors Chipset - AMD B650 Memory - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 6200+(OC) - Max. capacity of system memory: 128GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules BIOS - 256Mb AMI UEFI Legal BIOS with GUI support Graphics Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control Slots CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode* Chipset: - 1 x PCIe 4.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module* - Supports AMD CrossFire™ - 15µ Gold Contact in VGA PCIe Slot (PCIE1) *Supports NVMe SSD as boot disks Storage CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 2 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061: - 2 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disks Supports ASRock U.2 Kit RAID - Supports RAID 0 and RAID 1 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* *Requires additional M.2 NVMe expansion cards to support RAID 10 USB - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 4 x USB 3.2 Gen1 (2 Rear, 2 Front) - 9 x USB 2.0 (6 Rear, 3 Front) *All USB ports support ESD Protection Connector - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver) *Supports in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). **** CPU_FAN2/WP supports the fan power up to 2A (24W). *****CHA_FAN1~4/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O - 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) - 2 x USB 3.2 Gen1 Ports - 6 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. Accessories - 1 x User Manual - 2 x SATA Data Cables - 3 x Screws for M.2 Sockets Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB OS - Microsoft Windows 10 64-bit / 11 64-bit Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
