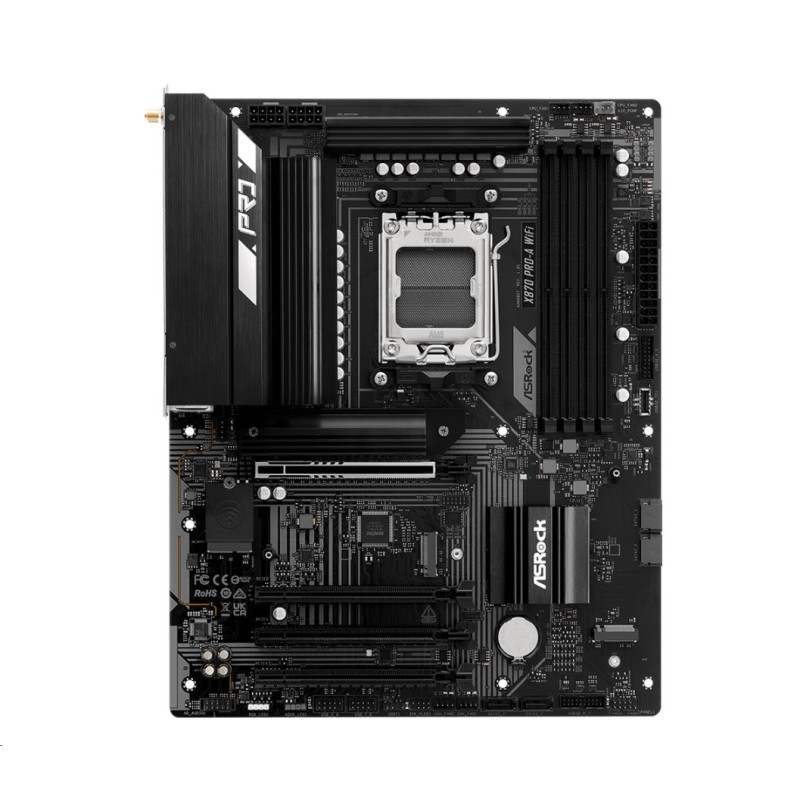

ASRock MB Sc AM5 X870 PRO-A WIFI, AMD X870, 4xDDR5, 1xHDMI, 2xUSB4, WI-FI

ASRock X870 Pro-A WiFi Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs. Unique Feature Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability - 16+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11be Wi-Fi 7 Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker CPU - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* Chipset - AMD X870 Memory - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)* - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules BIOS - 512Mb AMI UEFI Legal BIOS with GUI support Graphics Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz* Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control Wireless LAN - 802.11be 2x2 Wi-Fi 7 Module - Supports IEEE 802.11a/b/g/n/ac/ax/be - Supports 2.4GHz/5GHz/6GHz frequency band* - Supports 160MHz channel bandwidth with 6GHz frequency band* - 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.4 - Supports MU-MIMO Slots CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x1 mode* - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x1 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ Storage CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* USB CPU: - 2 x USB4 Type-C (Rear) - 2 x USB 3.2 Gen2 Type-A (Rear) Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 5 x USB 3.2 Gen1 Type-A (1 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) Internal I/O - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header Rear Panel I/O - 2 x Antenna Ports - 1 x HDMI Port - 2 x USB4 Type-C Ports (40 Gb/s)* - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) - 1 x USB 3.2 Gen1 Type-A Port - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash Accessories - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas - 1 x ARGB Splitter Cable Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB OS - Microsoft Windows 10 64-bit / 11 64-bit Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) - CEC Tier II ready
