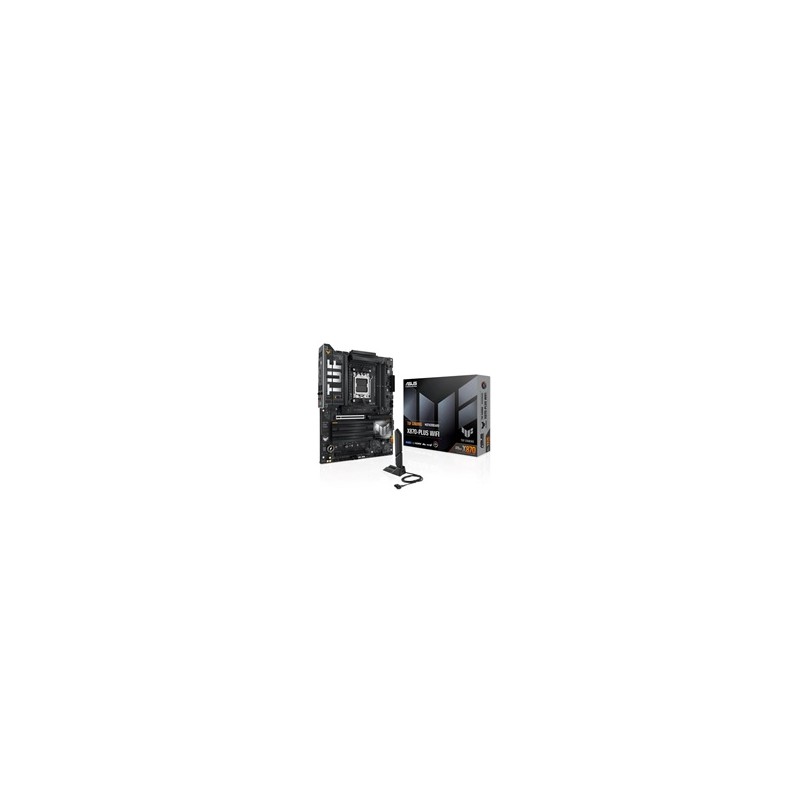

ASUS MB Sc AM5 TUF GAMING X870-PLUS WIFI, AMD X870, 4xDDR5, 1xHDMI, 2xUSB4, WiFi
7 856 Kč
S DPH
Skladem
Kód: 90MB1IU0M0EAY0
- Barva: Černá
- Model: TUF Gaming
- Šířka: 305 mm
- Hloubka: 244 mm
- Wi-Fi: ano
- Bluetooth: ano
Formát základní desky:ATX; Chipset:AMD X870; Socket (patice):Socket AM5 (LGA 1718); Pro procesory:AMD; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:4; SATA 3:2; Podpora RAID:0; PCI Express x16:2; PCI Express x8:0; PCI Express x1:0; PCI:0; LAN:2.5Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:0; HDMI:1; VGA:0; DVI:0
Popis
TUF GAMING X870-PLUS WIFI
ASUS TUF GAMING X870-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset
AMD X870 Chipset
Memory
4 x DIMM slots, max. 192GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x HDMI™ port**
2 x USB4 (40Gbps) ports support USB Type-C display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
**** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)**
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)***
AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)****
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
*** Specifications vary by CPU types.
**** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage
Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot not support
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
2 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
*** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.
Ethernet
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 10 ports)
2 x USB4 (40Gbps) ports (2 x USB Type-C)*
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)**
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A
** USB Type-C power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A.
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Back Panel I/O Ports
2 x USB4 (40Gbps) (2 x USB Type-C) ports
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
Special Features
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- Support: up to 30W fast charging and USB Wattage Watcher
- Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A
- Compatible with PD3.0
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x Quick start guide
Operating System
Windows 11
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Parametry
| Barva | Černá |
|---|---|
| Model | TUF Gaming |
| Šířka | 305 mm |
| Hloubka | 244 mm |
| Wi-Fi | ano |
| Bluetooth | ano |
| Připojení na síť Ethernet | Ano |
| Počet portů Ethernetu (RJ-45) | 1 |
| Počet HDMI portů | 1 |
| Účel | Multimediální |
| Záruční doba | 36 měs. |
| Záruční doba IČO | 36 měs. |
| Rozměry | 305 × 244 mm |
| Počet portů USB Typ C | 2 |
| Komponent pro | PC |
| Výrobce procesoru | AMD |
| Verze Bluetooth | 5.4 |
| Počet portů USB 2.0 | 2 |
| Přenosová rychlost sítě Ethernet | 2,5 Gbs |
| Standardy Wi-Fi | Wi-Fi 7 (802.11be) |
| USB port | USB Typ-A, USB typu C |
| Podporované operační systémy Windows | Windows 11 |
| Maximální vnitřní paměť | 192 GB |
| Integrovaný grafický adaptér | Ne |
| Počet portů USB 3.2 (3.1 1. generace) Typ A | 1 |
| Počet paměťových slotů | 4 |
| Patice procesoru | Zásuvka AM5 |
| Typ operační paměti | DDR5 |
| Typ rozhraní Ethernetu | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Zvukové výstupní kanály | 7.1 kanály/kanálů |
| Typ paměti | DDR5 |
| Podpora ECC | ANO |
| Herní | ANO |
| Gigabitový LAN | ano |
| Typ paměťových slotů | DIMM |
| Podporované typy úložišť | HDD & SSD |
| Podpora paměťových kanálů | 2 kanály |
| Podpora technologie paralelního zpracování | Nepodporovaný |
| Podpora RAID | Ano |
| Podporované typy paměti | DDR5-SDRAM |
| Řada čipsetu základní desky | AMD |
| Formát základní desky | ATX |
| Počet CPU socketů | Single socket |
| Výrobce čipsetu | AMD |
| Typ BIOSu | UEFI AMI |
| Zpracováno | Schváleno |
| Počet portů USB 3.0 | 4 |
| Připočítat poplatky do ceny - exportní eshopy | ano |
| HDMI | Ano |
| Počet portů SATA III | 2 |
| Čipset základní desky | AMD X870 |
| Zvukový čip | Realtek ALC1220P |
| Chipset | AMD X870 |
| Počet slotů PCI Express x16 | 2 |
| Specifikace Wi-Fi | 802.11be |
| TDP | 170 W |
| Analogový vstup/výstup zvuku (počet) | 5 |
| Podporovaná rozhraní úložiště | M.2, SATA III |
| Úrovně RAID | 0, 1, 5, 10 |
| Počet podporovaných úložných jednotek | 6 |
| Počet portů USB 3.2 (3.1 2. generace) Typ A | 3 |
| Počet konektorů SATA III | 2 |
| Konektor pro mikrofon (line-in) | Ano |
| Kompatibilní procesory | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| RAID řadič | ano |
| Počet portů USB 3.1 | 3 |
| Počet portů USB4 Gen 3x2 | 2 |
| Kompatibilita s ECC | ECC a non-ECC |
| Podporovaná rychlost taktování paměti (max.) | 8000 MHz |
| Bez vyrovnávací paměti | Ano |
| Počet podporovaných pevných disků | 2 |
| Audiokonektor na předním panelu | Ano |
| Konektor ATX zdroje (24-pin) | Ano |
| Konektor ventilátoru procesoru | Ano |
| Počet konektorů pro ventilátory | 4 |
| Typ základní desky | ATX |
| Počet slotů M.2 (M) | 4 |
| Velikost paměti BIOSu | 256 Mbit |
| Počet portů M.2 | 4 |
| M.2 port pro rozšiřující karty | ne |
| Sloty PCI Express x16 (Gen 4.x) | 1 |
| Patice | AM5 |
| EPS napájecí konektor (8pin) | Ano |
| Napájecí konektor 12V | Ano |
| Počet COM konektorů | 1 |
| Maximální frekvence paměti [MHz] | 8000 |
| Konektory USB 3.2 Gen 2×2 | 1 |
| Typ síťové karty | Realtek |
| Počet slotů M.2 | 4 |
| Výrobce chipsetu | AMD |
| Podpora generace CPU | 7. až 9. gen Ryzen |
| XMP | Ano |
| Počet konektorů SATA 6Gb/s | 2 |
| M.2 v režimu PCIe 4.0 x4 | Ano |
| PCIe 4.0 x16 | Ano |
| Počet slotů PCI | 0 |
| Počet slotů PCIe x1 | 0 |
| COM port (interní) | Ano |
| LPT port (interní) | Ne |
| ThunderBolt (interní) | Ne |
| Počet USB 3.x (externí) | 7 |
| Počet USB Typ C (externí) | 2 |
| COM port (externí) | Ne |
| LPT port (externí) | Ne |
| M.2 v režimu PCIe 5.0 x4 | Ano |
| PCIe 5.0 x16 | Ano |
| ARGB LED Header | Ano |
| Počet pinů USB 2.0 (interní) | 2 |
| Počet pinů USB 3.x (interní) | 1 |
| ThunderBolt (externí) | Ano |
