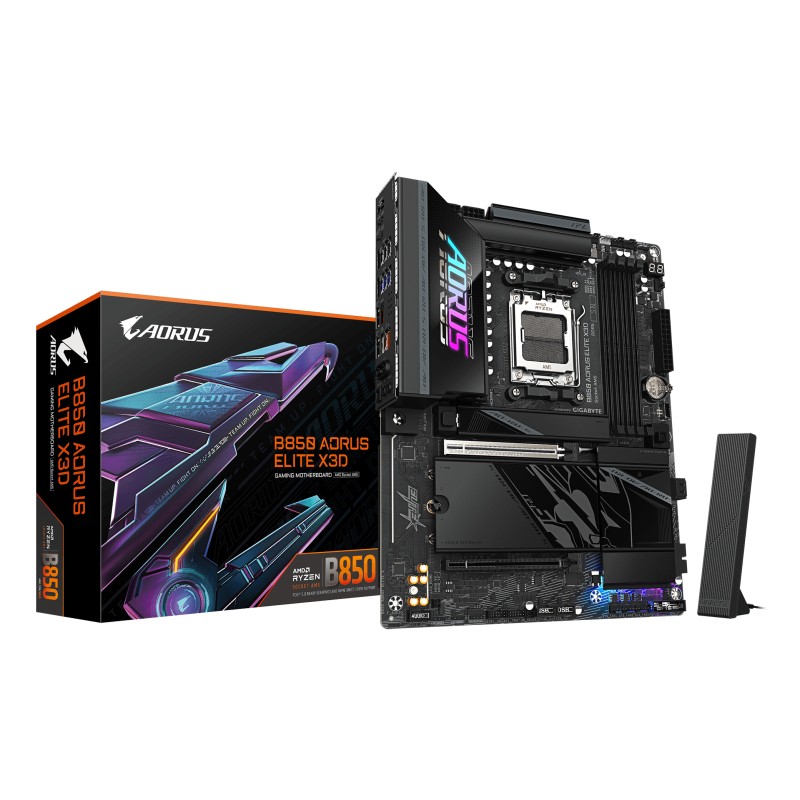

GIGABYTE B850 AORUS Elite X3D

Gigabyte B850 AORUS ELITE X3D

Chipset: AMD B850

Rozměrový formát: ATX Form Factor; 30.5cm x 24.4cm

Podpora pro procesory: *AMD Ryzen™ 9000 Series Processors *AMD Ryzen™ 8000 Series Processors *AMD Ryzen™ 7000 Series Processors

Patice procesoru: AM5

Paměť: *Podpora pro DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200/4800 MT/s paměťové moduly *4x DDR5 DIMM sloty podporující až 256GB (64GB každý slot) paměti *Dual channel memory architecture *Podpora pro non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 paměťové moduly *Podpora pro AMD EXPO a XMP

Grafické porty: Integrated Graphics Processor with AMD Radeon™ Graphics support: *1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Zvuková karta: *Realtek® ALC1220 CODEC *High Definition Audio *2/4/5.1/7.1-channel *Support for S/PDIF Out

Ethernet: Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

WLAN + Bluetooth: Realtek® Wi-Fi 7 RTL8922AE *802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands *BLUETOOTH 5.4 *Support for 11be 160MHz wireless standard

Rozšiřující sloty: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: *AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode *AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode *AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode Chipset: *1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

RAID řadič: RAID 0, RAID 1, RAID 5, RAID 10

Úložný prostor: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: *AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs *AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs *AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: *AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs *AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs *AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 2 x SATA 6Gb/s connectors

USB: CPU: *2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 support *2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU+USB 2.0 Hub: *4 x USB 2.0/1.1 ports on the back panel Chipset: *1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header *2 x USB 3.2 Gen 1 ports available through the internal USB header *4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: *4 x USB 3.2 Gen 1 ports on the back panel

Interní porty: Napájení *1× 24-pin ATX main power connector *2× 8-pin ATX 12V power connectors *1× CPU fan header *1× CPU fan / water cooling pump header *4× system fan headers *2× system fan / water cooling pump headers Související s úložištěm *4× M.2 Socket 3 connectors *2× SATA 6Gb/s connectors USB *1× USB Type-C header, USB 3.2 Gen 2x2 *1× USB 3.2 Gen 1 header *2× USB 2.0/1.1 headers Ostatní *3× addressable RGB Gen2 LED strip headers *1× RGB LED strip header *1× front panel header *1× front panel audio header *1× Trusted Platform Module header *1× reset jumper *1× Clear CMOS jumper *2× temperature sensor headers *1× noise detection header

Porty na zadním panelu: *1 x HDMI port *1 x reset button *1 x power button *1 x Clear CMOS button *1 x Q-Flash Plus button *4 x USB 2.0/1.1 ports *4 x USB 3.2 Gen 1 ports *2 x USB 3.2 Gen 2 Type-A ports (red) *2 x USB Type-C® ports, with USB 3.2 Gen 2 support *1 x RJ-45 port *2 x antenna connectors (2T2R) *2 x audio jacks *1 x optical S/PDIF Out connector

BIOS: *1 x 512 Mbit flash *Use of licensed AMI UEFI BIOS *PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

H/W Monitorování: *Voltage detection *Temperature detection *Fan speed detection *Water cooling flow rate detection *Fan fail warning *Fan speed control

OS: Podpora pro Windows 11 64-bit
