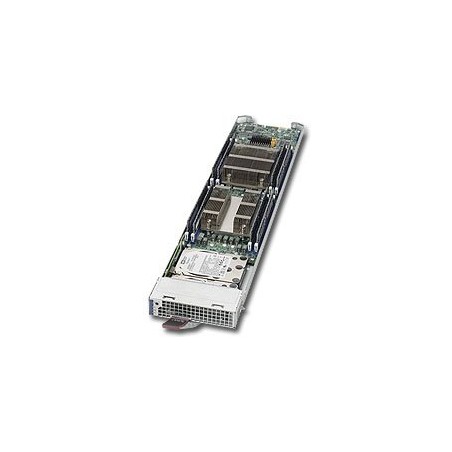

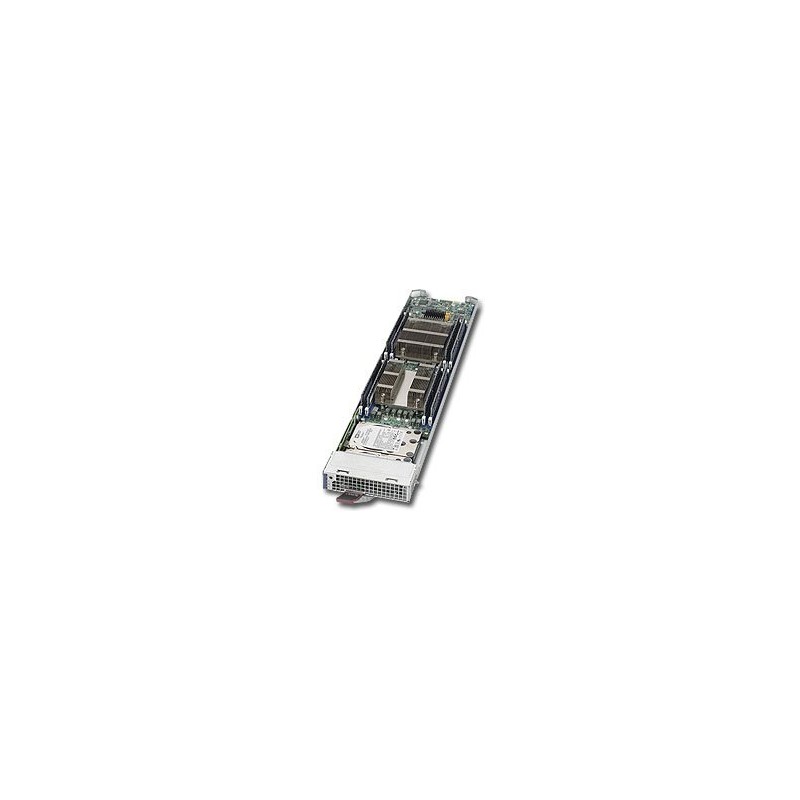

SUPERMICRO MicroBlade 2x LGA 2011-3, 8x DIMM, 2x 2,5" bay, 2x 10Gb

Product SKUs MicroBlade MBI-6128R-T2X Motherboard B1DRI Processor/Cache CPU Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 120W TDP) 105W TDP CPU or greater required 2000W PSU Dual Socket R3 (LGA 2011) Cores / Cache Up to 18 Cores / Up to 45MB Cache System Bus QPI up to 9.6 GT/s Note † BIOS version 2.0 or above is required System Memory Memory Capacity 8x 288-pin DDR4 DIMM slots Up to 256GB VLP ECC RDIMM Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit DIMM Sizes VLP RDIMM: 32GB, 16GB, 8GB, 4GB Memory Voltage 1.2 V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C612 Express chipset SATA SATA3 (6Gbps); RAID 0, 1 Input / Output DOM 1x SuperDOM (Disk on Module) port LAN 2x 10GbE ports (via AOC-XEH-I2M) System BIOS BIOS Type 128Mb SPI Flash EEPROM with AMI® BIOS BIOS Features Plug and Play (PnP) DMI 2.3 ACPI 5.0 USB Keyboard support SMBIOS 2.7.1 UEFI Dimensions Height 1.2" (30.48mm) Width 4.94" (125.48mm) Depth 23.2" (589.28mm) Weight Gross Weight: 5.7 lbs (2.59 kg) Net Weight: 3.4 lbs (1.54 kg) Available Colors Silver Grey Front Panel LEDs Power LED UID / KVM LED Network Activity LED Fault LED Drive Bays Internal 2x 2.5" 6Gb/s SATA3 HDD/SSD and 1x SATA DOM per node Operating Environment / Compliance Environmental Spec. Operating Temperature: 10°to 35°C (50°to 95°F) Non-operating Temperature: -40°to 70°C (-40°to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5 to 95% (non-condensing) Electromagnetic Compatibility (EMC) United States / Canada FCC- Emissions (US) Verification Europe EN55022 - Emissions EN55024 - Immunity EN61000-3-2 - Harmonics EN61000-3-3 - Voltage Flicker CE - EMC Directive 89/336/EEC Safety Compliance United States / Canada UL60950-1 - CSA/CUL 60950-1 Europe EN60950-1, CE - Low Voltage Directive 73/23/EEE Germany TUV
