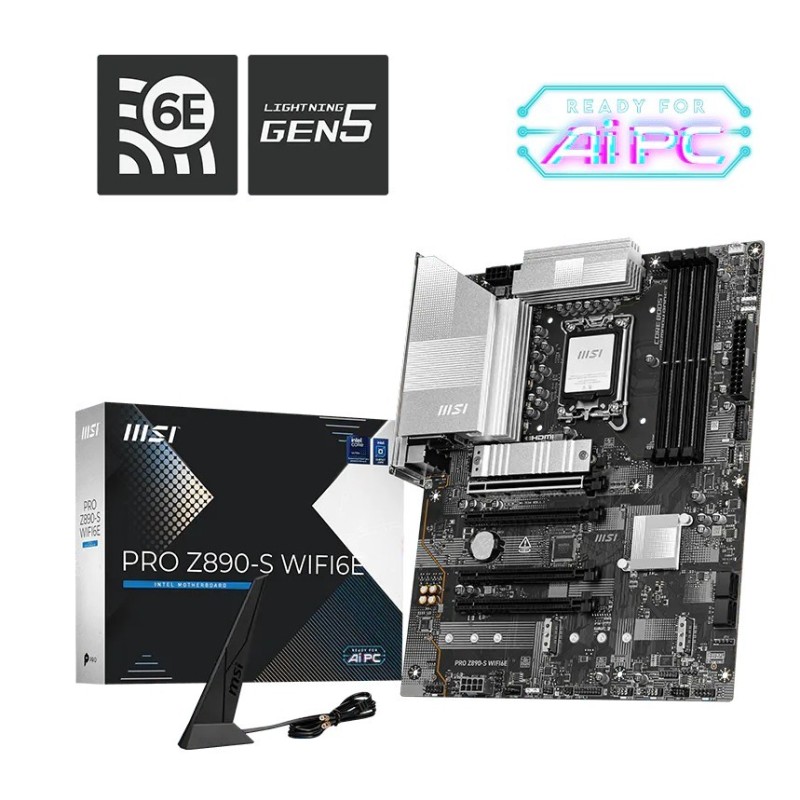

MSI Pro Z890-S WIFI6E

PRO Z890-S WIFI6E



Chipset: INTEL Z890


Rozměrový formát: ATX 243.84mmx304.8mm


Podpora pro procesory: Intel® Core™ Ultra Processors (Series 2)


Patice procesoru: LGA 1851



Paměť:

*4x DDR5 UDIMM, Maximum Memory Capacity 256GB
*Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
*Max. overclocking:
*1DPC 1R Max speed up to 8800+ MT/s
*1DPC 2R Max speed up to 7200+ MT/s
*2DPC 1R Max speed up to 6400+ MT/s
*2DPC 2R Max speed up to 5600+ MT/s
*Supports Intel® POR Speed and JEDEC Speed
*Supports Memory Overclocking and Intel® XMP 3.0
*Supports Dual-Controller Dual-Channel mode
*Supports Non-ECC, Un-buffered memory
*Supports CUDIMM



Grafické porty:
1x HDMI

*Support HDMI™ 2.1, maximum resolution of 4K 60Hz

1x DisplayPort

*Support DisplayPort 1.4, maximum resolution of 4K 60Hz



Zvuková karta:

*Realtek ALC897 Codec
*7.1-Channel High Definition Audio



Ethernet: Realtek 8125D 2.5Gbps LAN


WLAN + Bluetooth: Wi-Fi 6E module

*The Wireless module is pre-installed in the M.2 (Key-E) slot
*Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
*Supports 802.11 a/ b/ g/ n/ ac/ ax
*Supports Bluetooth® 5.3**, FIPS, FISMA



Rozšiřující sloty:
4x PCI-E x16 slot

*PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
*PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
*PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
*PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)



RAID řadič: RAID 0, RAID 1, RAID 5, RAID 10



Úložný prostor:
3x M.2

*M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
*M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
*M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G



USB:
Zadní USB

*6x USB 5Gbps Type A
*1x USB 20Gbps Type C

Přední USB

* 4x USB 2.0
*2x USB 5Gbps Type A
*1x USB 20Gbps Type C



Interní porty:

Napájení

*1× Power Connector (ATX_PWR)
*2× Power Connector (CPU_PWR)
*1× Power Connector (PCIE_PWR 8pin)
*1× CPU Fan
*1× Combo Fan (Pump_Sys Fan)
*4× System Fan

USB

*4× USB 2.0 ports
*2× USB 5Gbps Type-A ports
*1× USB 20Gbps Type-C port

Ostatní

*2× Front Panel (JFP)
*1× Chassis Intrusion (JCI)
*1× Front Audio (JAUD)
*1× Tuning Controller connector (JDASH)
*3× Addressable V2 RGB LED connectors (JARGB_V2)
*1× RGB LED connector (JRGB)
*1× TPM pin header (TPM 2.0)



Porty na zadním panelu:

*DisplayPort
*USB 5Gbps Type-A
*2.5G LAN
*Wi-Fi / Bluetooth
*Audio Connectors
*HDMI™
*USB 20Gbps Type-C
*USB 5Gbps Type-A



OS: Windows 11 64-bit
