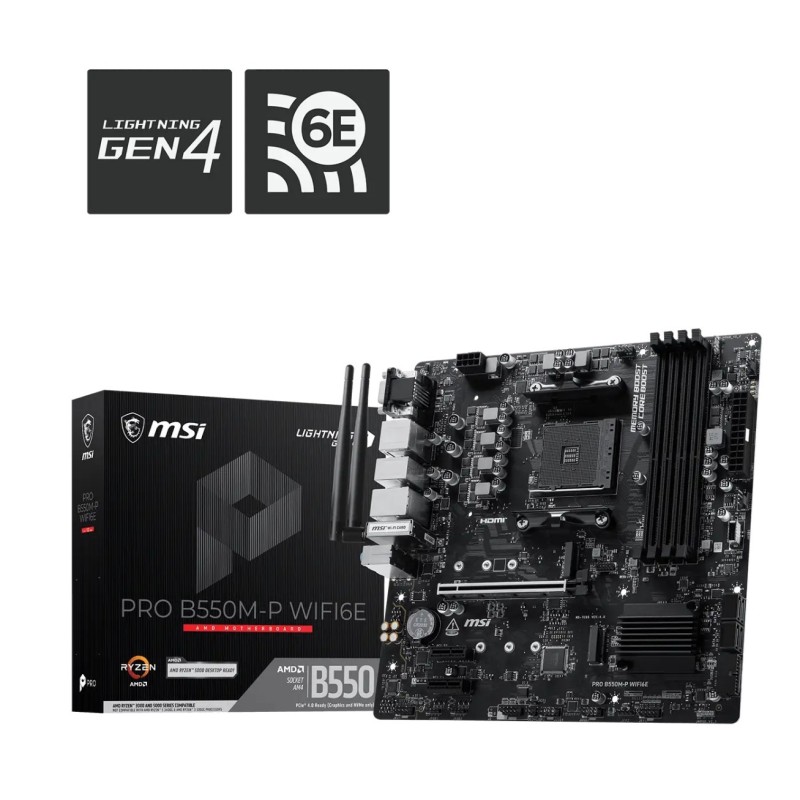

MSI Pro B550M-P WIFI6E

MSI PRO B550M-P WIFI6E



Chipset: AMD B550


Rozměrový formát: mATX 243.84mmx243.84mm


Podpora pro procesory: AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors


Patice procesoru: AM4



Paměť:

*4x DDR4, Maximum Memory Capacity 128GB
*Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
*Max. overclocking:
*1DPC 1R Max speed up to 4400+ MT/s
*1DPC 2R Max speed up to 3733+ MT/s
*2DPC 1R Max speed up to 3866+ MT/s
*2DPC 2R Max speed up to 3466+ MT/s
*Supports JEDEC Speed
*Supports Dual-Channel mode
*Supports non-ECC, un-buffered memory
*Supports Memory Overclocking by A-XMP OC mode



Grafické porty:
1x HDMI

*Support HDMITM 2.1, maximum resolution of 4K 60Hz

1x DisplayPort

*Supports DP 1.4, maximum resolution of 4K 60Hz

1x VGA

*Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz



Zvuková karta:

*Realtek® ALC897 Codec
*7.1-Channel High Definition Audio



Ethernet: Realtek RTL8111H 1Gbps LAN


WLAN + Bluetooth: Wi-Fi 6E

*The Wireless module is pre-installed in the M.2 (Key-E) slot
*Dual-band 1T1R mode
*Supports MU-MIMO RX
*Supports 2.4GHz/ 5GHz/ 6GHz* frequency band
*Supports 802.11 a/ b/ g/ n/ ac/ ax
*Supports Bluetooth® 5.3



Rozšiřující sloty:

1x PCI-E x16 slot

2x PCI-E x1 slot

*PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
*PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
*PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)



RAID řadič: RAID 0, RAID 1, RAID 10



Úložný prostor:

2x M.2

*M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
*M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices

4x SATA 6G



USB:
Zadní USB

*2x USB 2.0
*4x USB 5Gbps Type A

Přední USB

*4x USB 2.0
*2x USB 5Gbps Type A
*1x USB 5Gbps Type C



Interní porty:

Napájení

*1× Power Connector (ATX_PWR)
*1× Power Connector (CPU_PWR)
*1× CPU Fan
*2× System Fan

USB

*4× USB 2.0 ports
*2× USB 5Gbps Type-A ports
*1× USB 5Gbps Type-C port

Ostatní

*2× Front Panel (JFP)
*1× Chassis Intrusion (JCI)
*1× Front Audio (JAUD)
*1× COM Port (JCOM)
*2× Addressable V2 RGB LED connectors (JARGB_V2)
*2× RGB LED connectors (JRGB)
*1× TPM pin header (TPM 2.0)



Porty na zadním panelu:

*USB 5Gbps Type-A
*Keyboard / Mouse
*LAN Port
*Wi-Fi / Bluetooth
*Audio connectors
*DisplayPort
*HDMI™
*USB 2.0
*USB 5Gbps Type-A

OS: Windows 11 64-bit, Windows 10 64-bit
