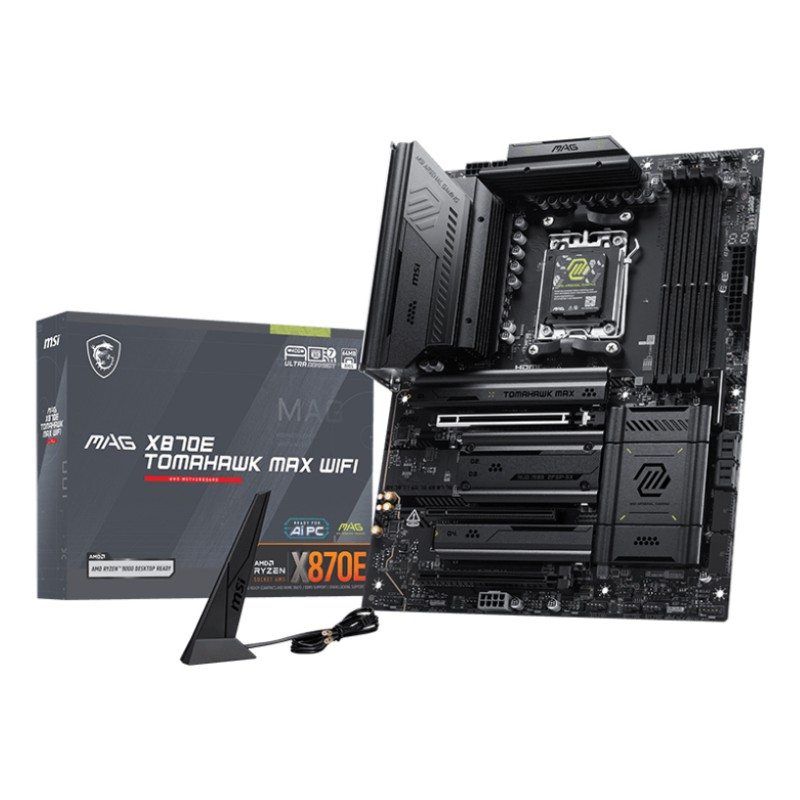

MSI MAG X870E TOMAHAWK MAX WIFI

MSI MAG X870E TOMAHAWK WIFI Chipset: AMD X870E Rozměrový formát: ATX 243.84mmx304.8mmPodpora pro procesory: AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Patice procesoru: AM5 Paměť: *4x DDR5 UDIMM, Maximum Memory Capacity 256GB *Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s *Ryzen™ 9000 Series Processors max. overclocking frequency: *1DPC 1R Max speed up to 8400+ MT/s *1DPC 2R Max speed up to 6400+ MT/s *2DPC 1R Max speed up to 6400+ MT/s *2DPC 2R Max speed up to 6400+ MT/s *Supports AMD POR Speed and JEDEC Speed *Supports Memory Overclocking and AMD EXPO™ *Supports Dual-Channel mode *Supports Non-ECC, Un-buffered memory Grafické porty: 1x HDMI *Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort *USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz Zvuková karta: *Realtek® ALC4080 Codec *7.1-Channel USB High Performance Audio *Supports up to 32-bit/384kHz playback on front panel *Supports S/PDIF output Ethernet: 1x Realtek® 8126 5G LAN WLAN + Bluetooth: Wi-Fi 7 *The Wireless module is pre-installed in the M.2 (Key-E) slot *Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps *Supports 802.11 a/ b/ g/ n/ ac/ ax/ be *Supports Bluetooth® 5.4**, MLO, 4KQAM Rozšiřující sloty: 3x PCI-E x16 slot (Qty) *PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) *PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) *PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot *Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) *Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) *Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) RAID řadič: RAID 0, RAID 1, RAID 5, RAID 10 Úložný prostor: 4x M.2 (Qty) *M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices *M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices *M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices *M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) *M.2_1 slot (From CPU) *Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) *Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2 slot (From CPU) *Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) *Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) USB: Zadní USB *4x USB 2.0 *3x USB 5Gbps Type A *2x USB 10Gbps Type A *1x USB 10Gbps Type C *2x USB 40Gbps Type C Přední USB *4x USB 2.0 *4x USB 5Gbps Type A *1x USB 20Gbps Type C Interní porty: Napájení *1× Power Connector (ATX_PWR) *2× Power Connector (CPU_PWR) *1× Power Connector (PCIE_PWR 8pin) *1× CPU Fan *1× PUMP_SYS Fan *6× System Fan USB *4× USB 2.0 ports *4× USB 5Gbps Type-A ports *1× USB 20Gbps Type-C port Ostatní *1× ARGB + FAN + USB 2.0 Header (JAF_2) *2× Front Panel (JFP) *1× Chassis Intrusion (JCI) *1× Front Audio (JAUD) *3× Addressable V2 RGB LED connectors (JARGB_V2) *1× RGB LED connector (JRGB) *1× TPM pin header (TPM 2.0) Porty na zadním panelu: *Clear CMOS Button *USB 10Gbps Type-A *USB 5Gbps Type-A *USB 2.0 *5G LAN *Wi-Fi / Bluetooth *Audio connectors *Flash BIOS Button *HDMI™ *USB 40Gbps Type-C *USB 10Gbps Type-C *USB 10Gbps Type-A OS: Windows 11 64-bit
