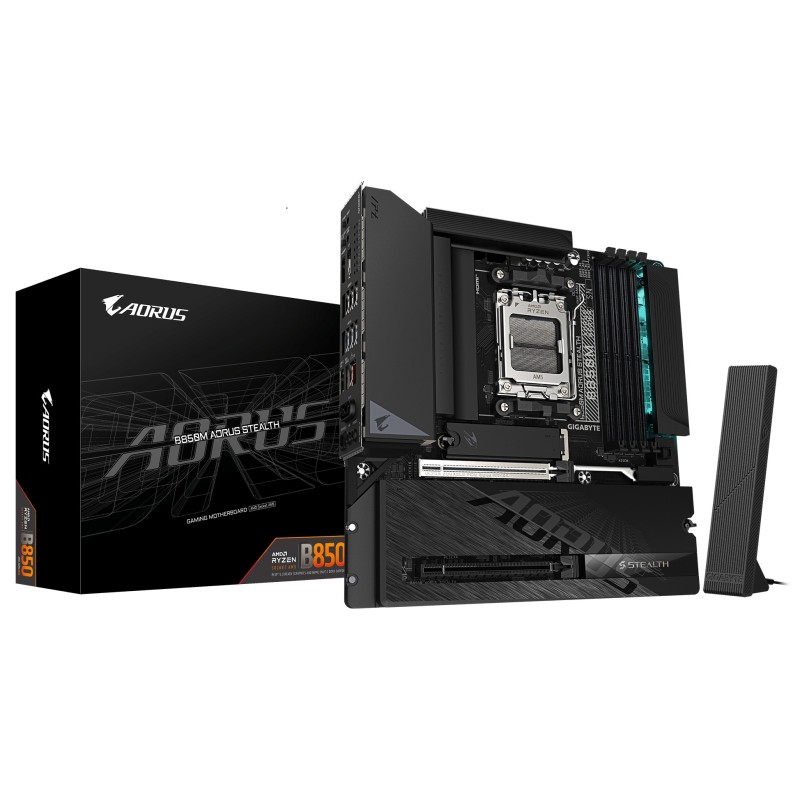

GIGABYTE B850M AORUS STEALTH

Gigabyte B850 AORUS STEALTH Chipset: AMD B850 Rozměrový formát: Micro ATX Form Factor; 24.4cm x 24.4cm Podpora pro procesory: *AMD Ryzen™ 9000 Series Processors *AMD Ryzen™ 8000 Series Processors *AMD Ryzen™ 7000 Series Processors Patice procesoru: AM5 Paměť: *Podpora pro DDR5 8200(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s paměťové moduly. *4x DDR5 DIMM sloty podporující až 256GB (64GB každý slot) paměti *Dual channel memory architecture *Podpora pro non-ECC Un-ubffered DIMM 1Rx8/2Rx8/1Rx16 moduly *Podpora pro AMD EXPO a XMP Grafické porty: Integrated Graphics Processor with AMD Radeon™ Graphics support: *1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz *1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz Zvuková karta: *Realtek® ALC1220 CODEC *High Definition Audio *2/4/5.1/7.1-channel *Support for S/PDIF Out Ethernet: Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) WLAN + Bluetooth: Realtek® Wi-Fi 7 RTL8922AE *802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands *BLUETOOTH 5.4 *Support for 11be 160MHz wireless standard Rozšiřující sloty: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: *AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode *AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode *AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode Chipset: *1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) RAID řadič: RAID 0, RAID 1, RAID 5, RAID 10 Úložný prostor: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: *AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs *AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs *AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: *AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs *AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs *AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs 2 x SATA 6Gb/s connectors USB: CPU: *3 x USB 3.2 Gen 1 ports on the back panel CPU+USB 2.0 Hub: *4 x USB 2.0/1.1 ports on the back panel Chipset: *2 x USB Type-C® ports with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) *1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel *3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) available through the internal USB header *4 x USB 2.0/1.1 ports available through the internal USB headers Interní porty: Napájení *1× 24-pin ATX main power connector *1× 8-pin ATX 12V power connector *1× CPU fan header *1× CPU fan / water cooling pump header *1× system fan header *1× system fan / water cooling pump header Související s úložištěm *3× M.2 Socket 3 connectors *2× SATA 6Gb/s connectors USB *1× USB Type-C header, USB 3.2 Gen 2 *1× USB 3.2 Gen 1 header *2× USB 2.0/1.1 headers Ostatní *3× addressable RGB Gen2 LED strip headers *1× RGB LED strip header *1× front panel header *1× front panel audio header *1× Trusted Platform Module header *1× Clear CMOS jumper *1× reset jumper Porty na zadním panelu: *1 x Q-Flash Plus button *1 x Clear CMOS button *1 x power button *1 x reset button *1 x HDMI port (Note) *1 x DisplayPort (Note) *2 x antenna connectors (2T2R) *1 x USB Type-C® header, with USB 3.2 Gen 2 support *1 x USB 3.2 Gen 2 Type-A ports (red) *4 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports *1 x RJ-45 port *1 x optical S/PDIF Out connector *2 x audio jacks BIOS: RAID 0, RAID 1, RAID 5, RAID 10 H/W Monitorování *Voltage detection *Temperature detection *Fan speed detection *Water cooling flow rate detection *Fan fail warning *Fan speed control OS: Podpora pro Windows 11 64-bit
