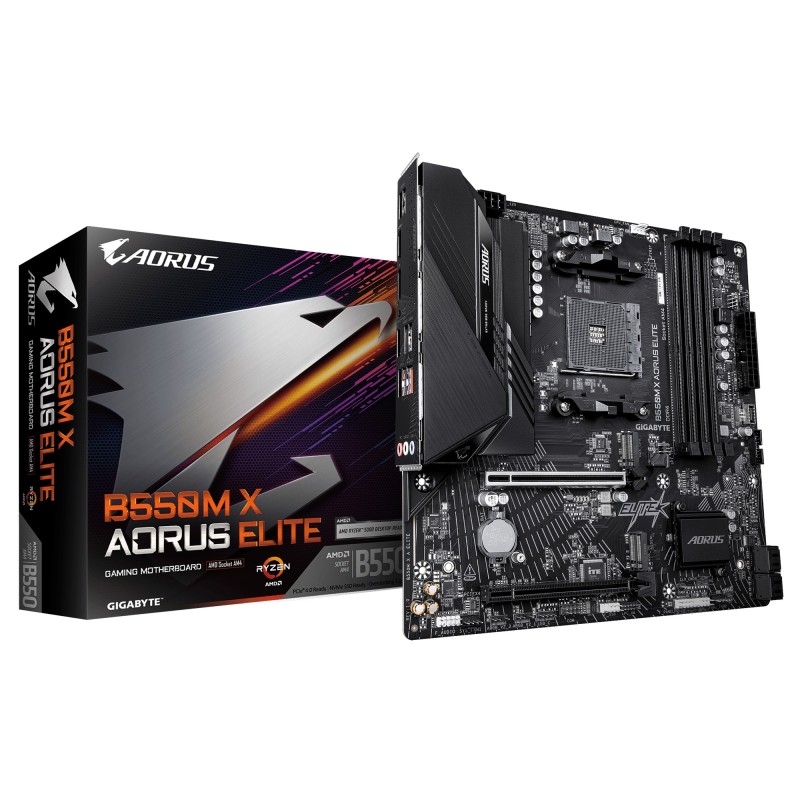

Gigabyte B550M X AORUS ELITE/AM4/mATX

Gigabyte B550M X AORUS ELITE

Chipset: AMD B550

Rozměrový formát: Micro ATX Form Factor; 24.4cm x 24.4cm

Podpora pro procesory: *AMD Ryzen™ 5000 Series Processors *AMD Ryzen™ 5000 G-Series Processors *AMD Ryzen™ 4000 G-Series Processors *AMD Ryzen™ 3000 G-Series Processors *AMD Ryzen™ 3000 Series Processors

Patice procesoru: AM4

Paměť: *4x DDR4 DIMM sloty podporující až 128GB (32GB každý slot) paměti *Podpora pro DDR4 3200/2933/2667/2400/2133 MT/s modul *Dual channel memory architecture *Podpora pro ECC Un-buffered DIMM 1Rx8/2Rx8 moduly *Podpora pro non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 moduly *Podpora pro XMP

Grafické porty: Integrated Graphics Processor with AMD Radeon™ Graphics support: *1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz *1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Zvuková karta: *Realtek® ALC1220 CODEC *High Definition Audio *2/4/5.1/7.1-channel

Ethernet: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Rozšiřující sloty: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: *AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode *AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0 x16 mode

RAID řadič: RAID 0, RAID 1, RAID 10

Úložný prostor: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: *AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs *AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSDs4 x SATA 6Gb/s connectors, integrated in the Chipset

USB: CPU:
• 3 x USB 3.2 Gen 1 ports on the back panel *1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 1 support Chipset: *1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header *3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) *4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Interní porty: Napájení *1× 24-pin ATX main power connector *1× 8-pin ATX 12V power connector *1× CPU fan header *1× CPU fan / water cooling pump header *1× system fan header *1× system fan / water cooling pump header Související s úložištěm *2× M.2 Socket 3 connectors *4× SATA 6Gb/s connectors USB *1× USB Type-C header, USB 3.2 Gen 1 *1× USB 3.2 Gen 1 header *1× USB 2.0/1.1 header Ostatní *3× addressable RGB Gen2 LED strip headers *1× RGB LED strip header *1× front panel header *1× front panel audio header *1× Trusted Platform Module header *1× serial port header *1× Clear CMOS jumper

Porty na zadním panelu: *1 x HDMI port *1 x DisplayPort *1 x Q-Flash Plus button *4 x USB 3.2 Gen 1 ports *1 x USB Type-C® port, with USB 3.2 Gen 1 support *2 x USB 2.0/1.1 ports *1 x RJ-45 port *3 x audio jacks

BIOS: *1 x 128 Mbit flash *Use of licensed AMI UEFI BIOS *PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

H/W Monitorování: *Voltage detection *Temperature detection *Fan speed detection *Overheating warning *Fan fail warning *Fan speed control

OS: Podpora pro Windows 11 64-bit
