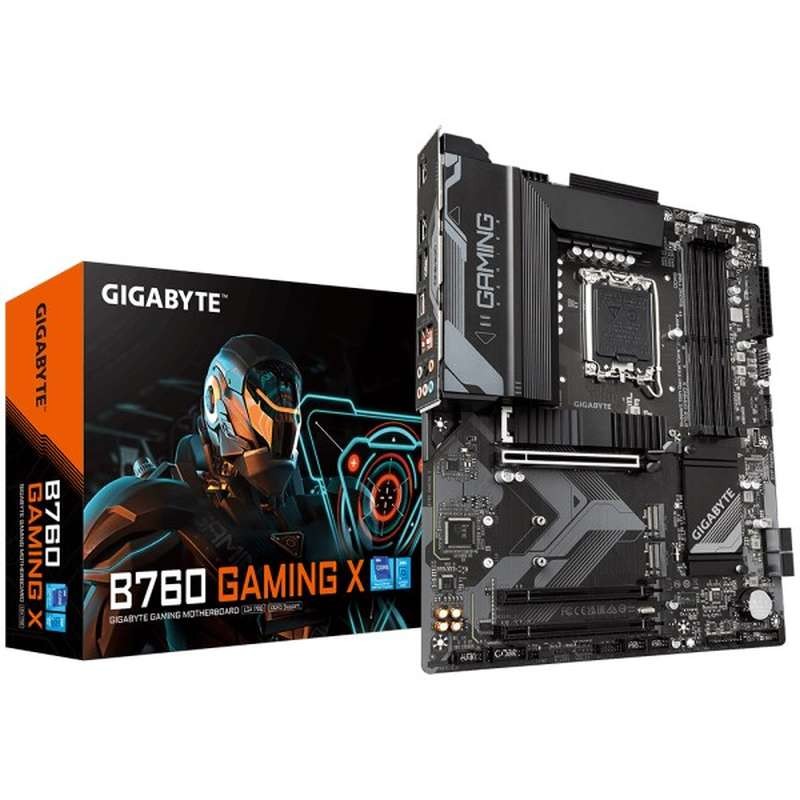

GIGABYTE MB Sc LGA1700 B760 GAMING X, Intel B760, 4xDDR5, 1xDP, 1xHDMI, WI-FI

Technické parametry Pro procesory: Intel Socket (patice): Socket 1700 Chipset: Intel B760 Počet paměťových slotů: 4 Technologie paměti RAM: DDR5 Formát základní desky: ATX Podpora RAID: 0 Podpora RAID: 1 Podpora RAID: 5 Podpora RAID: 10 PCI Express x16: 3 SATA 3: 4 M.2 slot: 3 3.5mm Jack: Ano VGA: 0 DVI: 0 HDMI: 1 DisplayPort Type-C: 0 DisplayPort: 1 Bezdrátové připojení: Wi-Fi B760 GAMING X • Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors • Unparalleled Performance:Hybrid 8+1+1 Phases Digital VRM Solution • Dual Channel DDR5:4*DIMMs XMP Memory Module Support • Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors • Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & M.2 SSD Performance • EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design • Fast Networks:2.5GbE LAN • Extended Connectivity:Front USB-C® 10Gb/s, DP, HDMI • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel® B760 Express Chipset Memory Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) /5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Expansion Slots CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 port 5 x USB 2.0/1.1 ports 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 6 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit Form Factor ATX Form Factor; 30.5cm x 24.4cm
