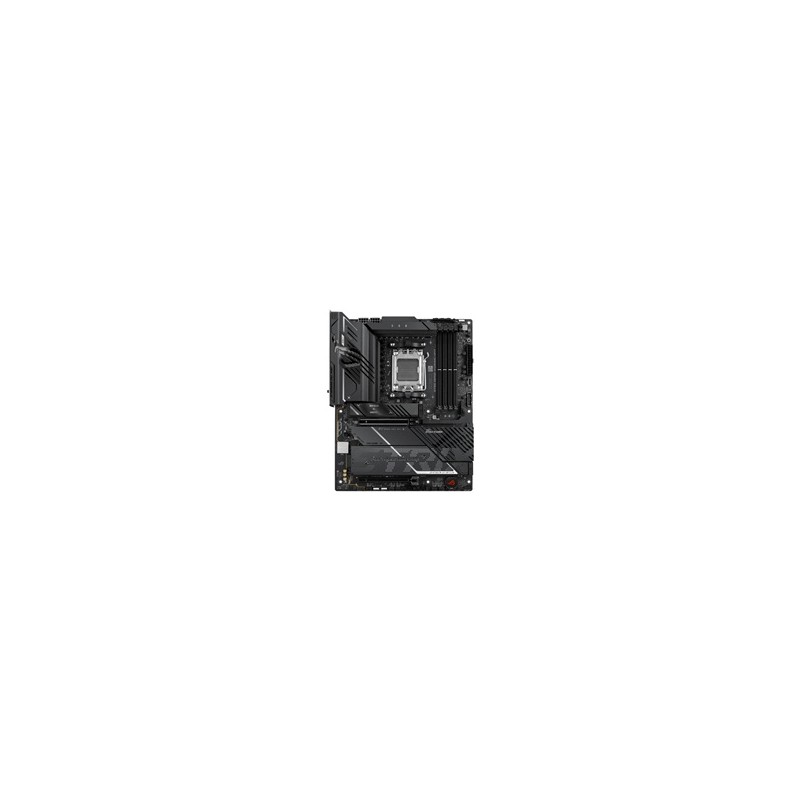

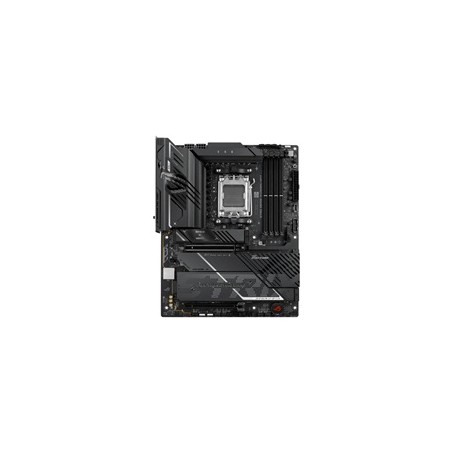

ASUS MB Sc AM5 ROG STRIX X870E-H GAMING WIFI7, 4xDDR5, 1xHDMI, 2xThunderbolt, ATX

ASUS ROG STRIX X870E-H GAMING WIFI7 Transform your gaming experience with the ROG STRIX X870E-H GAMING WIFI7 motherboard. Engineered to dominate with AMD Ryzen™ 9000 Series Desktop Processors, this ATX powerhouse features cutting-edge power design and AI-enhanced solutions. With PCIe 5.0 x16 slots, dual USB4 Type-C ports, and WiFi 7, it delivers advanced connectivity. DIY-friendly features like M.2 Q-Release on all four M.2 slots and PCIe Slot Q-Release make building and upgrades effortless. Unleash your system's full potential with the ROG STRIX X870E-H GAMING WIFI7. CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors Supports up to AMD 120W CPU Refer to https://www.asus.com/support/download-center/ for CPU support list. Chipset AMD X870E Memory 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) Supports DIMM Fit / DIMM Fit Pro ASUS Enhanced Memory Profile (AEMP) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. Graphics 1 x HDMI™ port 2 x USB4 (40Gbps) ports support USB Type-C display outputs Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports 4K@60Hz as specified in HDMI 2.1. Supports max. 4K@60Hz as specified in DisplayPort 1.4a VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870E Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). Specifications vary by CPU types. To ensure compatibility of the device installed, refer to https://www.asus.com/support/download-center/ for supported peripherals. Storage Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) M.2_2 slot (Key M), type 2280/22110 (Not supported) AMD X870E Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied, PCIEX16(G5) runs x8 only. M.2_2 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors. RAID Support AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 Specifications vary by CPU types. Ethernet 1 x Realtek 5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 7 (Realtek RTL8922AE) 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth Bluetooth v5.4 Wi-Fi features may vary depending on the operating system. USB Rear USB (Total 14 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C) 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge) 6 x USB 5Gbps ports (6 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A Audio Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC Impedance sense for front and rear headphone outputs Internal audio Amplifier to enhance the highest quality sound for headphone and speakers Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) Supports up to 32-Bit/192 kHz playback Audio Features SupremeFX Shielding Technology Savitech SV3H712 AMP Rear optical S/PDIF out port Premium audio capacitors Audio cover The LINE OUT port on the rear panel does not support spatial audio. Use front panel audio jack or USB interface for spatial audio. Back Panel I/O Ports 2 x USB4 (40Gbps) ports (2 x USB Type-C) 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C) 6 x USB 5Gbps ports (6 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 5Gb Ethernet 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button Internal I/O Connectors Fan and Cooling Related: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related: 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related: 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous: 3 x Addressable RGB Gen 2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front Panel System header 1 x Thermal Sensor header Special Features Extreme Engine Digi+ 5K Black metallic capacitors ASUS Q-Design M.2 Q-Latch M.2 Q-Release PCIe Slot Q-Release Q-Antenna Q-Dashboard Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution M.2 heatsink VRM heatsink design ASUS EZ DIY BIOS FlashBack™ button BIOS FlashBack™ LED Clear CMOS button ProCool II Pre-mounted I/O shield SafeSlot SafeDIMM Aura Sync Addressable RGB Gen 2 headers Software Features ROG Exclusive Software ROG CPU-Z Dolby Atmos ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync Fan Xpert 4 (with AI Cooling II) GameFirst ASUS AI Advisor ASUS DriverHub AIDA64 Extreme (60 days free trial) HWiNFO ASUS GlideX USB Wattage Watcher TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide AI Cache Boost ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS MyHotkey FlexKey BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables: 2 x SATA 6Gb/s cables Miscellaneous: 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 4 x M.2 rubber Documentation: 1 x Quick start guide Operating System Windows 11 Form Factor ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
