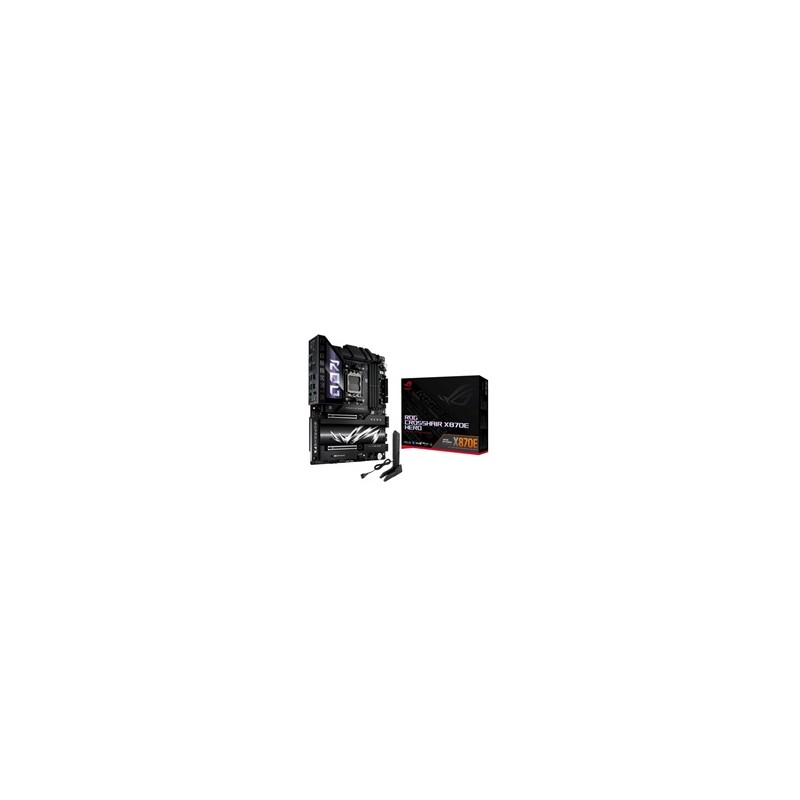

ASUS MB Sc AM5 ROG CROSSHAIR X870E HERO, AMD X870, 4xDDR5, 1xHDMI, 2xUSB4, WiFi
16 810 Kč
S DPH
Skladem
Kód: 90MB1IE0M0EAY0
- Barva: Černá
- Model: Prime
- Hmotnost: 2,55 kg
- Šířka: 305 mm
- Výška: 50 mm
- Hloubka: 244 mm
Formát základní desky:ATX; Chipset:AMD X870; Socket (patice):Socket AM5 (LGA 1718); Pro procesory:AMD; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:5; SATA 3:4; Podpora RAID:0, 1, 5, 10; PCI Express x16:2; PCI Express x8:0; PCI Express x1:0; PCI:0; LAN:2.5Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:0; HDMI:1; VGA:0; DVI:0
Popis
ASUS ROG CROSSHAIR X870E HERO
When only the fastest will do, ROG X870E/X870 motherboards deliver. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ROG X870E/X870 motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset
AMD X870E
Memory
4 x DIMM slots, max.192GB, DDR5
Supports up to
8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x HDMI™ port*
2 x USB4 (40Gbps) ports support USB Type-C display outputs**
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
VGA resolution support depends on processors' or graphic cards' resolution.
*Supports 4K@60Hz as specified in HDMI 2.1.
**Supports max. 4K@60Hz as specified in DisplayPort 1.4a
Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)
** When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8.
***When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4.
AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*
2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)
AMD Ryzen™ 8500 & 8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported
Storage
Supports 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
AMD X870E Chipset
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
SlimSAS slot supports PCIe 4.0 x4 mode.
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled.
***When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4, M.2_2 will be disabled.
Ethernet
1 x Intel 2.5Gb Ethernet
1 x Realtek 5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
Bluetooth v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 10 ports)
2 x USB4 (40Gbps) ports (2 x USB Type-C)
8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C)
Front USB (Total 10 ports)
1 x USB 20Gbps (supports USB Type-C with up to 60W PD/QC4+)*
1 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C power delivery output: max. 5V/3A
*USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- ESS ES9219 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports
2 x USB4 (40Gbps) ports (2 x USB Type-C)
8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C)
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
Storage Related
5 x M.2 slots (Key M)
1 x SlimSAS connector
4 x SATA 6Gb/s ports
USB
2 x USB 20Gbps connectors (support USB Type-C )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x LN2 Mode jumper
Special Features
Extreme OC Kit
- FlexKey button
- LN2 Mode
- ReTry button
- Start button
Extreme Engine Digi+
- 10K Black metallic capacitors
- MicroFine alloy choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
- Metal backplate
ASUS EZ DIY
- Backplate
- BIOS FlashBack™ button
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 header(s)
Front Panel USB 20Gbps with Quick Charge 4+ Support
- Support: up to 60W fast charging and USB Wattage Watcher*
- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- Compatible with PD3.0 and PPS
* To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
Software Features
ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- Internet Security (1-year full version)
- Polymo Lighting II
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
-Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
BIOS
256Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
1 x ARGB RGB extension cable
4 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
2 x M.2 Q-Latch package
3 x M.2 Q-Slide package
5 x M.2 rubber package
1 x ROG stickers
1 x ROG thank you card
1 x ROG Bottle Opener
Installation Media
1 x USB drive with utilities and drivers
Documentation
1 x Quick start guide
Operating System
Windows 11
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Parametry
| Barva | Černá |
|---|---|
| Model | Prime |
| Hmotnost | 2,55 kg |
| Šířka | 305 mm |
| Výška | 50 mm |
| Hloubka | 244 mm |
| Wi-Fi | ano |
| Bluetooth | ano |
| Připojení na síť Ethernet | Ano |
| Počet portů Ethernetu (RJ-45) | 2 |
| Počet HDMI portů | 1 |
| Výstupy pro sluchátka | 1 |
| Hmotnost včetně balení | 4,26 kg |
| Dodávané kabely | SATA |
| Účel | Multimediální |
| Záruční doba | 36 měs. |
| Záruční doba IČO | 36 měs. |
| Rozměry | 305 × 244 mm |
| Počet portů USB Typ C | 4 |
| Komponent pro | PC |
| Výrobce procesoru | AMD |
| Šířka balení | 370 mm |
| Hloubka balení | 312 mm |
| Výška balení | 108 mm |
| Verze Bluetooth | 5.4 |
| Počet portů USB 2.0 | 2 |
| Přenosová rychlost sítě Ethernet | 5 Gbs |
| Standardy Wi-Fi | Wi-Fi 7 (802.11be) |
| Podporované operační systémy Windows | Windows 11 |
| Maximální vnitřní paměť | 192 GB |
| Počet portů USB 3.2 (3.1 1. generace) Typ A | 2 |
| Počet paměťových slotů | 4 |
| Patice procesoru | Zásuvka AM5 |
| Typ operační paměti | DDR5 |
| Typ rozhraní Ethernetu | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet |
| Zvukové výstupní kanály | 7.1 kanály/kanálů |
| Typ paměti | DDR5 |
| Podpora ECC | ANO |
| Herní | ANO |
| Gigabitový LAN | ano |
| Typ paměťových slotů | DIMM |
| Podporované typy úložišť | HDD & SSD |
| Podpora paměťových kanálů | 2 kanály |
| Podpora technologie paralelního zpracování | Nepodporovaný |
| Podpora RAID | Ano |
| Podporované typy paměti | DDR5-SDRAM |
| Řada čipsetu základní desky | AMD |
| Formát základní desky | ATX |
| Počet CPU socketů | Single socket |
| Výrobce čipsetu | AMD |
| Typ BIOSu | UEFI AMI |
| Zpracováno | Schváleno |
| Připočítat poplatky do ceny - exportní eshopy | ano |
| HDMI | Ano |
| Počet portů SATA III | 4 |
| Čipset základní desky | AMD X870E |
| Zvukový čip | Realtek ALC4082 |
| Chipset | AMD X870E |
| Počet slotů PCI Express x16 | 2 |
| Specifikace Wi-Fi | 802.11be |
| TDP | 170 W |
| Analogový vstup/výstup zvuku (počet) | 2 |
| Podporovaná rozhraní úložiště | M.2, SATA III, SlimSAS |
| Úrovně RAID | 0, 1, 10, 5 |
| Počet podporovaných úložných jednotek | 10 |
| Počet portů USB 3.2 (3.1 2. generace) Typ A | 6 |
| Počet portů USB 3.2 (3.1 2. generace) Typ C | 2 |
| Počet konektorů SATA III | 4 |
| Konektor pro mikrofon (line-in) | Ano |
| Podporované patice procesorů | Zásuvka AM5 |
| RAID řadič | ano |
| Počet portů USB 3.1 | 6 |
| Výstupní port S/PDIF | Ano |
| Kompatibilita s ECC | ECC a non-ECC |
| Bez vyrovnávací paměti | Ano |
| Počet podporovaných pevných disků | 5 |
| Audiokonektor na předním panelu | Ano |
| Konektor ATX zdroje (24-pin) | Ano |
| Konektor ventilátoru procesoru | Ano |
| Počet konektorů pro ventilátory | 4 |
| Typ základní desky | ATX |
| Počet slotů M.2 (M) | 5 |
| Velikost paměti BIOSu | 256 Mbit |
| Počet portů M.2 | 5 |
| M.2 port pro rozšiřující karty | ne |
| Sloty PCI Express x16 (Gen 4.x) | 4 |
| Počet portů USB4 Gen 2x2 | 2 |
| Dodávané ovladače | Ano |
| Počet optických SPDIF portů | 1 |
| Sloty PCI Express x16 (Gen 5.x) | 2 |
| Patice | AM5 |
| EPS napájecí konektor (8pin) | Ano |
| Napájecí konektor 12V | Ano |
| Anténní jack WiFi-AP | 1 |
| Tlačítko na vymazání CMOS | Ano |
| Maximální frekvence paměti [MHz] | 8666 |
| Konektory USB 3.2 Gen 2×2 | 2 |
| Typ síťové karty | Intel, Realtek |
| Počet portů SAS | 1 |
| Počet slotů M.2 | 5 |
| Výrobce chipsetu | AMD |
| Podpora generace CPU | 7. až 9. gen Ryzen |
| XMP | Ano |
| Počet konektorů SATA 6Gb/s | 4 |
| M.2 v režimu PCIe 4.0 x4 | Ano |
| PCIe 4.0 x16 | Ano |
| Počet slotů PCI | 0 |
| Počet slotů PCIe x1 | 0 |
| COM port (interní) | Ne |
| LPT port (interní) | Ne |
| ThunderBolt (interní) | Ne |
| Počet USB 3.x (externí) | 6 |
| Počet USB Typ C (externí) | 4 |
| COM port (externí) | Ne |
| LPT port (externí) | Ne |
| M.2 v režimu PCIe 5.0 x4 | Ano |
| PCIe 5.0 x16 | Ano |
| ARGB LED Header | Ano |
| SPDIF OUT | Ano |
| Počet pinů USB 2.0 (interní) | 2 |
| Počet pinů USB 3.x (interní) | 2 |
| ThunderBolt (externí) | Ano |
Komentáře (0)
Na tento produkt momentálně není přidána žádná recenze.
Skladem
Kód: 90MB1IE0M0EAY0
- Barva: Černá
- Model: Prime
- Hmotnost: 2,55 kg
- Šířka: 305 mm
- Výška: 50 mm
- Hloubka: 244 mm
Formát základní desky:ATX; Chipset:AMD X870; Socket (patice):Socket AM5 (LGA 1718); Pro procesory:AMD; Technologie paměti RAM:DDR5; Počet paměťových slotů:4; M.2 slot:5; SATA 3:4; Podpora RAID:0, 1, 5, 10; PCI Express x16:2; PCI Express x8:0; PCI Express x1:0; PCI:0; LAN:2.5Gbit/s; Bezdrátové připojení:WiFi + Bluetooth; DisplayPort:0; HDMI:1; VGA:0; DVI:0
