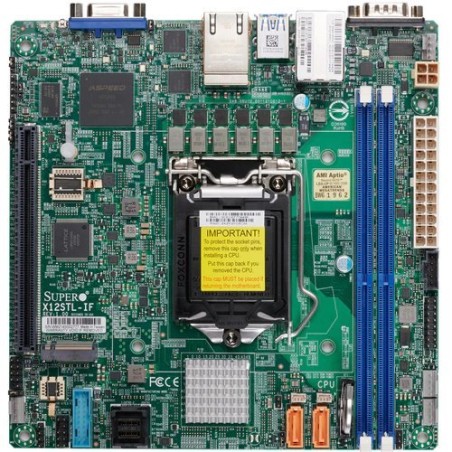

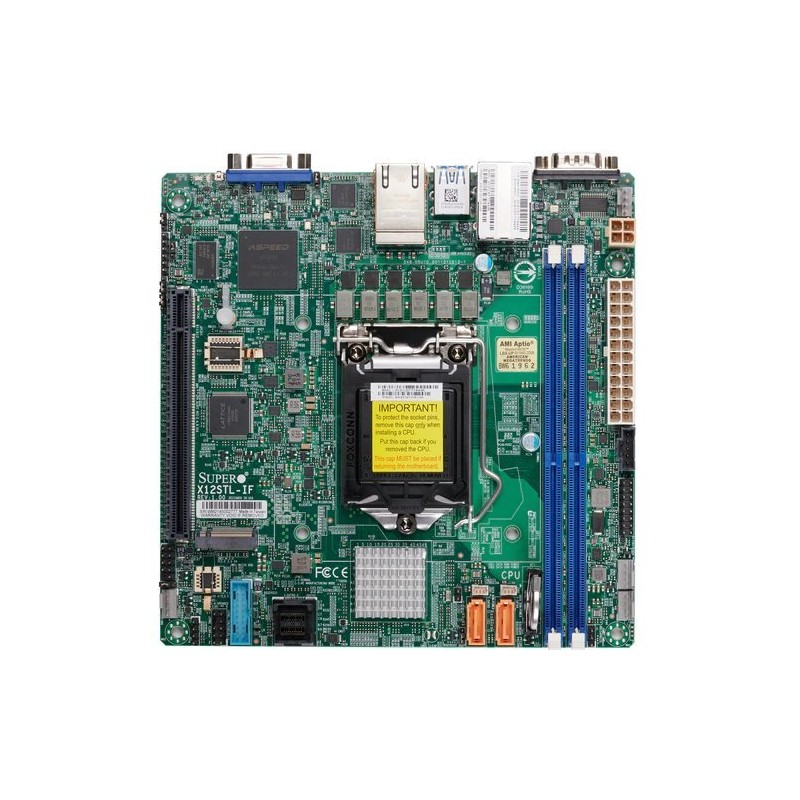

SUPERMICRO MB LGA1200 (Xeon E3-2300), C252, 2xDDR4, 6xSATA3, M.2, 1xPCIe4.0 x16, VGA, 2x LAN, IPMI, mini-ITX MBDX12STLIFB

Key Features Intel® Xeon® E-2300 Processor, 10th Generation Intel® Pentium® Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP Intel® C252 Up to 64GB Unbuffered ECC UDIMM, DDR4-3200MHz, in 2 DIMM slots 1 PCI-E 4.0 x16 M.2 Interface: 1 PCI-E 3.0 x4 M.2 Form Factor: 2280 M.2 Key: M-Key Dual LAN with Intel® i210 Gigabit Ethernet Controller Intel® C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 1 VGA D-Sub Connector port 2 SuperDOM with built-in power 4x USB 3.2 Gen1 (2 rear, 2 via header), 4x USB 2.0 (2 rear, 2 via headers) Specifications Product SKUs MBD-X12STL-IF X12STL-IF Physical Stats Form Factor Mini-ITX Dimension 6.7" x 6.7" (17.02cm x 17.02cm) Processor CPU 10th Generation Intel® Pentium® Processor, Intel® Xeon® E-2300 Processor Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP Core Up to 8 cores System Memory Memory Capacity 2 DIMM slots Up to 64GB Unbuffered ECC UDIMM, DDR4-3200MHz Memory Type 3200/2933/2666MHz SDRAM DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V Error Detection Corrects single-bit errors On-Board Devices Chipset Intel® C252 SATA Intel® C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 IPMI ASPEED AST2600 BMC Graphics ASPEED AST2600 BMC Network Controllers Dual LAN with Intel® i210 Gigabit Ethernet Controller Input / Output SATA 6 SATA3 (6Gbps) port(s) LAN 2 RJ45 Gigabit Ethernet LAN ports USB 4 USB 2.0 port(s) (2 rear; 2 via header) 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear) Video Output 1 VGA D-Sub Connector port(s) Serial Port 1 COM Port(s) (1 rear) DOM 2 SATA DOM (Disk on Module) power connector support TPM 1 TPM Header Expansion Slots PCI-E 1 PCI-E 4.0 x16 M.2 M.2 Interface: 1 PCI-E 3.0 x4 Form Factor: 2280 Key: M-Key System BIOS BIOS Type 256MB UEFI BIOS Features ACPI 6.0 SMBIOS 3.3 Plug and Play (PnP) RTC (Real Time Clock) Wakeup UEFI 2.7 USB Keyboard support PCI 3.0 Management Software SuperDoctor® 5, SUM, SPM, SSM, IPMI2.0, Watchdog System Management Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support Power Configurations Power-on mode for AC power recovery, ACPI Power Management PC Health Monitoring Voltage VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 4 -fan status, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages LED UID/Remote UID CPU / System Overheat LED Temperature Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI FAN 4x 4-pin fan headers (up to 4 fans) Thermal control tachometer fan connectors Fan speed control 4 fans with tachometer monitoring Overheat LED indication Other Features WOL UID M.2 NGFF connector Dual Cooling Zones CPU thermal trip support for processor protection Control of power-on for recovery from AC power loss Chassis intrusion detection ACPI power management Operating Environment Operating Temperature Range 0°C - 50°C (32°F - 122°F) Non-Operating Temperature Range -20°C - 60°C (-4°F - 140°F) Operating Relative Humidity Range 10% - 85% (non-condensing) Non Operating Relative Humidity Range 10% - 95% (non-condensing) Parts List Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X12STL-IF 1 X12STL-IF Motherboard I/O Cables CBL-0044L • 2 - I/O Shield MCP-260-00042-0N • 1 - Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X12STL-IF 1 X12STL-IF Motherboard I/O Cables CBL-0044L • 2 - I/O Shield MCP-260-00042-0N • 1 - QRG MNL-2368-QRG 1 -
