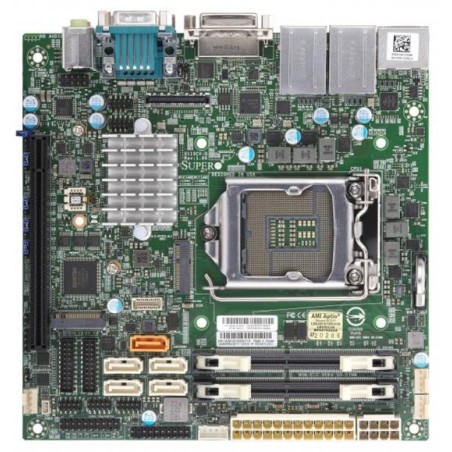

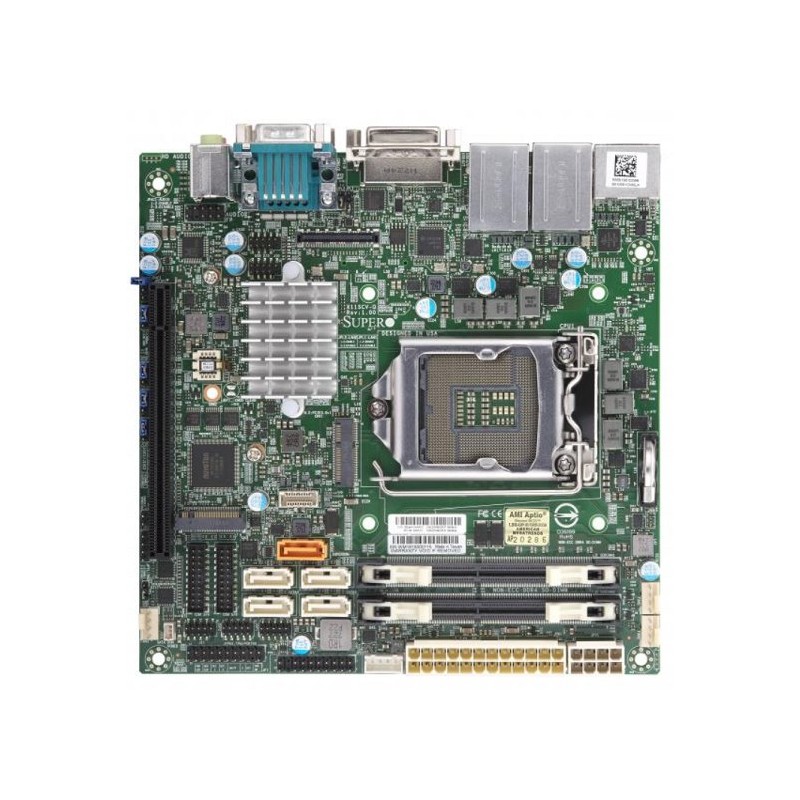

SUPERMICRO MB 1xLGA1151 (Core 8/9 65W), Q370,2xDDR4 SO-DIMM,6xSATA3,M.2, PCIe 3.0 x16,HDMI,DP,DVI,Audio,2xLAN

Product SKUs MBD-X11SCV-Q X11SCV-Q Physical Stats Form Factor Mini-ITX Dimensions 6.7" x 6.7" (17.02cm x 17.02cm) Processor/Cache CPU 8th/9th Generation Intel® Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® Processor Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 65W TDP System Memory Memory Capacity Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2666MHz, in 2 DIMM slots Memory Type N/A DIMM Sizes 4GB, 8GB, 16GB, 32GB Memory Voltage 1.2V On-Board Devices Chipset Intel® Q370 SATA Intel® Q370 controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10 X11SCV-Q: Q370 controller for 5SATA3 ports;RAID 0,1,5,10 Network Controllers Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Intel® PHY I219LM LAN controller Audio ALC 888S HD Audio Graphics Intel® HD Graphics 3 Independent Displays, HDMI 2.0 Input / Output LAN 2 RJ45 Gigabit Ethernet LAN ports USB 4 USB 2.0 ports (4 via headers) 6 USB 3.2 Gen2 ports (4 rears (2 Rear Type A + 2 Rear Type C + 2 via headers; USB 3.1 Gen 2 Video Output 1 DVI - D port, 1 HDMI port, 1 DP (DisplayPort) port, 1 eDP (Embedded DisplayPort) port, 3 Independent Displays, HDMI 2.0 Serial Port / Header 6 COM Ports (2 rear, 4 headers), 4COM port support RS-232 thru pin header; 2COM support RS-232/422/485 in rear TPM 1 TPM Header & Chip both Expansion Slots PCI-E 1 PCI-E 3.0 x16 M.2 1 M.2 M-Key PCI-E 3.0 x4, 2242/2280 1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230 System BIOS BIOS Type AMI UEFI BIOS Features ACPI 6.1 SMBIOS 3.1 PCI FW 3.0 UEFI 2.6 RTC Wakeup BIOS setup option Management Software AMT, NMI, SuperDoctor® 5, vPro, Watchdog Power Configurations ATX Power connector +12V DC Power Input PC Health Monitoring Voltage +1.8V, +3.3V, +5V, +5V standby, 3 -fan status, HT, System level control, System temperature, VBAT FAN 3x 4-pin fan headers (up to 3 fans), 3 fans with tachometer monitoring, Fan speed control, Low noise fan speed control, Overheat LED indication, PWM fan speed control, System level control, Thermal control tachometer fan connectors Temperature PECI LED CPU / System Overheat LED Other Features 12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, M.2 NGFF connector, RoHS, System level control, WOL Operating Environment Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F) Non-Operating Temperature Range -30°C ~ 60°C (-22°F ~ 140°F) Operating Relative Humidity Range 10% ~ 85% (non-condensing) Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing) Parts List ? Parts List (Bulk Package) Name Part Number Qty Description Motherboard MBD-X11SCV-Q 1 X11SCV-Q Motherboard I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00136-0N 1 Standard I/O Shield for X11SCV-Q Parts List (Retail Package) Name Part Number Qty Description Motherboard MBD-X11SCV-Q 1 X11SCV-Q Motherboard QRG MNL-2096-QRG 1 Motherboard Quick Reference Guide I/O Cables CBL-0044L 5 57.5CM SATA FLAT S-S PBF I/O Shield MCP-260-00136-0N 1 Standard I/O Shield for X11SCV-Q Optional Parts List Name Part Number Qty Description USB Cable CBL-CUSB-0983 1 USB2.0 cable 20cm COM Cable CBL-CUSB-0984 1 COM Cable 20cm I/O Shield MCP-260-00137-0B 1 1U I/O Shield for X11SCV-Q in SC504 Chassis Internal USB3.1 Type A cable CBL-CUSB-0835 1 USB 3.1 to dual USB 3.0 Type A Chassis (Optimized for X11SCV-Q) Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower SCE300 = Most optimized Chassis for SuperServer Configuration Blue color = Compatible Green color = Global SKU & Compatible Red dot & green color = Optimized + Global SKU Server (Optimized for X11SCV-Q) Server Name SYS-E300-9C SYS-5029C-TN2
