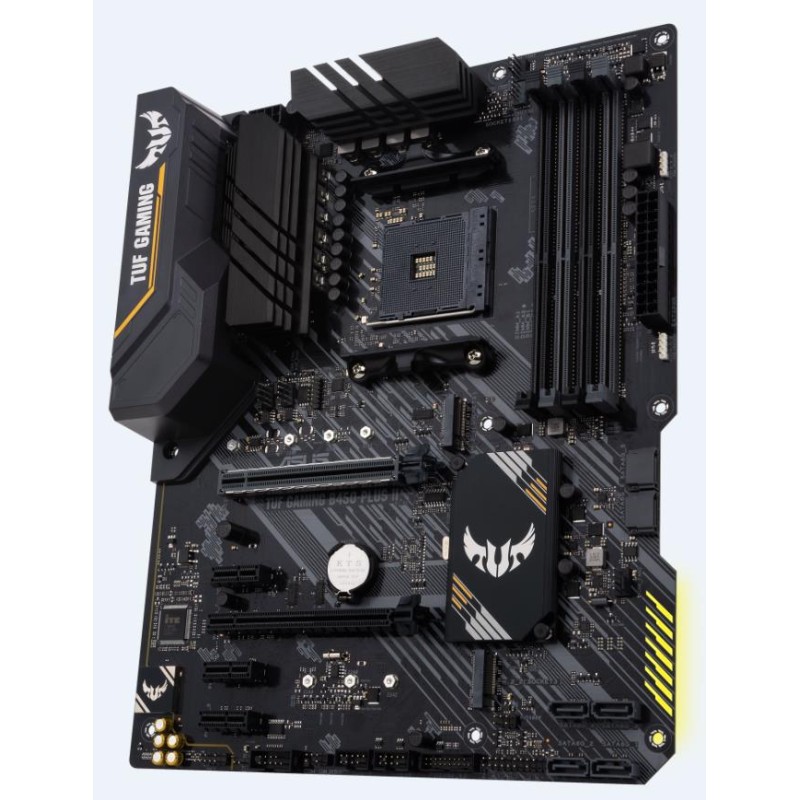

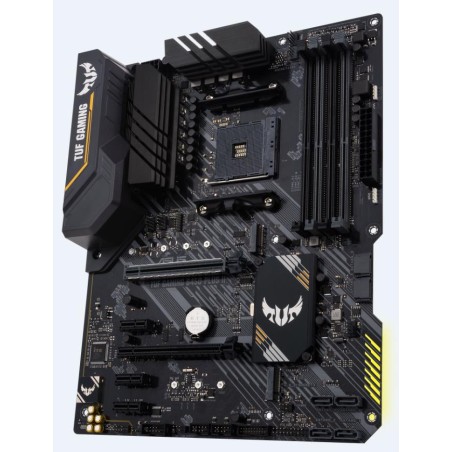

ASUS MB Sc AM4 TUF GAMING B450-PLUS II, AMD B450, 4xDDR4, 1xDP, 1xHDMI
2 247 Kč
S DPH
Momentálně nedostupné
Kód: 90MB1650M0EAY0
- Barva: Černá
- Model: TUF Gaming
- Formát: ATX Form Factor, 12.0 inch x 9.6 inch (30.5 cm x 24.4 cm)
- Šířka: 305 mm
- Hloubka: 244 mm
- Wi-Fi: Ne
Formát základní desky:ATX; Chipset:AMD B450; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:4; M.2 slot:2; SATA 3:4; Podpora RAID:0, 1, 10; PCI Express x16:2; PCI Express x8:0; PCI Express x1:2; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:1; HDMI:1; VGA:0; DVI:0; DisplayPort Type-C:0
Popis
TUF GAMING B450-PLUS II
AMD B450 (AM4) ATX gaming motherboard with dual M.2, AI Noise-Canceling Microphone, HDMI, DisplayPort, USB 3.2 Gen 2 Type-A and Type-C and Aura Sync RGB lighting support
- Comprehensive cooling: VRM heatsinks, PCH heatsink, Fan Xpert 4 core
- Next-gen connectivity: USB 3.2 Gen 2 Type-A and Type-C support
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
- AI Noise-Canceling Microphone: Provides crystal-clear in-game voice communication
- Aura Sync RGB Lighting: Synchronise LED lighting with a vast portfolio of compatible PC gear
TECHNICAL SPECIFICATIONS
| CPU | AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors * Refer to www.asus.com for CPU support list |
| Chipset | AMD B450 |
| Memory | 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. |
| Graphic | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors 1 x DisplayPort 1.2 1 x HDMI 2.0b *Graphics specifications may vary between CPU types. |
| Multi-GPU Support | Supports AMD CrossFireX™ Technology |
| Expansion Slots | 3rd/2nd/1st Gen AMD Ryzen™ Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) |
| 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) |
|
| AMD Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x4 mode) |
|
| AMD B450 chipset 1 x PCIe 2.0 x16 (max at x4 mode) *1 3 x PCIe 2.0 x1 |
|
| Storage | 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 AMD Athlon™ with Radeon™ Vega Graphics Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*2 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors: 2 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 AMD B450 chipset: 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE 2.0 x4)*3 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
| LAN | Realtek L8200A TUF LANGuard |
| Audio | Realtek ALC S1200A 8-Channel High Definition Audio CODEC *4 Audio Feature: - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. |
| USB Ports | Rear USB Port (Total 8) 2 x USB 3.2 Gen 2 port(s)(1 x USB Type-C)(1 x Type-A +0 x ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) |
| Front USB Port (Total 6) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
|
| Special Features | ASUS TUF PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: Precision control for stable power - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! AURA : - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Turbo LAN - PC Cleaner - Armoury Crate - BIOS FlashBack™ Button ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 4 Core ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS USB BIOS FlashBack™ - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM Armoury Crate |
| Software Features | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - AI Noise-Canceling Microphone AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 core - EZ update - PC Cleaner TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | ASUS TUF PROTECTION - ASUS DIGI+ VRM - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED AURA Sync - AURA RGB headers |
| Back I/O Ports | 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (1 x USB Type-C+1 x Type-A) 4 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 5 x Audio jack(s) 1 x BIOS FlashBack™ Button(s) |
| Internal I/O Ports | 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 2 x Aura RGB Strip Header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode) 1 x SPI TPM header 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header |
| Accessories | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x TUF GAMING Sticker 1 x TUF Certification card(s) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows 10 64-bit Windows 7 64-bit *5 |
| Form Factor | ATX Form Factor 12.0 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Note | *1 PCIE x16_2 will be unavailable when installing M.2 PCIE SSD in M.2_2 socket. PCIe x16_2 will run x2 when installing devices in PCIe x1_1 or PCIe x1_2 slots. PCIE x16_2 will run x4 when no devices installing in PCIE x1_1 and PCIE x1_2 slots. *2 The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed. *3 PCIe x16_2, PCIe x1_1, and PCIe x1_2 slots will be unavailable when installing M.2 PCIe SSD in M.2_2 socket. *4 Use a chassis with HD audio module in the front panel to support an 8-channel audio output. *5 Install an AMD Ryzen™ 2nd Generatione or Ryzen™ 1st Generation Processors to support Windows 7 64-bit operating system. |
Parametry
| Barva | Černá |
|---|---|
| Model | TUF Gaming |
| Formát | ATX Form Factor, 12.0 inch x 9.6 inch (30.5 cm x 24.4 cm) |
| Šířka | 305 mm |
| Hloubka | 244 mm |
| Wi-Fi | Ne |
| Připojení na síť Ethernet | Ano |
| Počet portů Ethernetu (RJ-45) | 1 |
| Typ zdroje | ATX |
| Počet HDMI portů | 1 |
| Počet připojení DisplayPorts | 1 |
| Dodávané kabely | SATA |
| Účel | Kancelář/domácnost |
| Komponent pro | PC |
| Výrobce procesoru | AMD |
| Počet portů USB 2.0 | 2 |
| USB port | USB Typ-A, USB typu C |
| Podporované operační systémy Windows | Windows 10, Windows 7 |
| Maximální vnitřní paměť | 128 GB |
| Počet portů USB 3.2 (3.1 1. generace) Typ A | 1 |
| Počet paměťových slotů | 4 |
| Patice procesoru | Socket AM4 |
| LAN | Realtek L8200A, TUF LANGuard |
| Typ rozhraní Ethernetu | Gigabit Ethernet |
| Zvukové výstupní kanály | 8 kanály/kanálů |
| Typ paměti | DDR4 |
| Typ chlazení | Aktivní |
| Podpora ECC | ANO |
| Herní | ANO |
| Typ paměťových slotů | DIMM |
| Podporované typy úložišť | HDD & SSD |
| Podpora paměťových kanálů | 2 kanály |
| Podpora technologie paralelního zpracování | CrossFireX |
| Podporované typy paměti | DDR4-SDRAM |
| Konektor TPM | Ano |
| Řada čipsetu základní desky | AMD |
| Formát základní desky | ATX |
| Počet CPU socketů | Single socket |
| Výrobce čipsetu | AMD |
| Typ BIOSu | UEFI AMI |
| Kód harmonizovaného systému | 84733020 |
| Verze HDMI | 2.0b |
| Verze DisplayPortu | 1.2 |
| Čipset základní desky | AMD B450 |
| Řadič LAN | Realtek L8200A |
| Počet portů USB 3.2 Gen 1 (3.1 Gen 1) Typ C | 1 |
| Zvukový čip | Realtek ALC S1200A |
| Chipset | AMD B450 |
| Podporovaná rozhraní úložiště | M.2, SATA |
| Úrovně RAID | 0, 1, 10 |
| Počet portů USB 3.2 (3.1 2. generace) Typ A | 1 |
| Počet konektorů SATA III | 6 |
| Sloty PCI Express x16 (Gen 3.x) | 1 |
| Kompatibilní procesory | AMD Ryzen 3000 Series |
| S/PDIF výstupní konektor | Ano |
| Kompatibilita s ECC | ECC |
| Podporované frekvence paměti | 2133,2400,2666,2800,3000,3200,3400,3466,3533,3600,3733,3866,4000,4400 MHz |
| Bez vyrovnávací paměti | Ano |
| Celkový počet SATA konektorů | 6 |
| Audiokonektor na předním panelu | Ano |
| Konektor ATX zdroje (24-pin) | Ano |
| Konektor ventilátoru procesoru | Ano |
| Počet konektorů pro ventilátory | 2 |
| Pin konektor pro RGB LED | Ano |
| Typ základní desky | ATX |
| Počet slotů M.2 (M) | 1 |
| Velikost paměti BIOSu | 256 Mbit |
| Spínač výmazu BIOSu | Ano |
| Dodávané ovladače | Ano |
| Počet COM konektorů | 1 |
| Maximální frekvence paměti [MHz] | 4400 |
| Maximální počet SMP procesorů | 1 |
| Počet montážních otvorů | 8 |
| Počet konektorů EATX zdroje | 1 |
| Rozšiřující sloty | 3rd/2nd/1st Gen AMD Ryzen™ Processors , 1 x PCIe 3.0/2.0 x16 (x16 mode) |
| Audio konektor | Ano |
| Sloty PCI Express x1 (Gen 2.x) | 3 |
