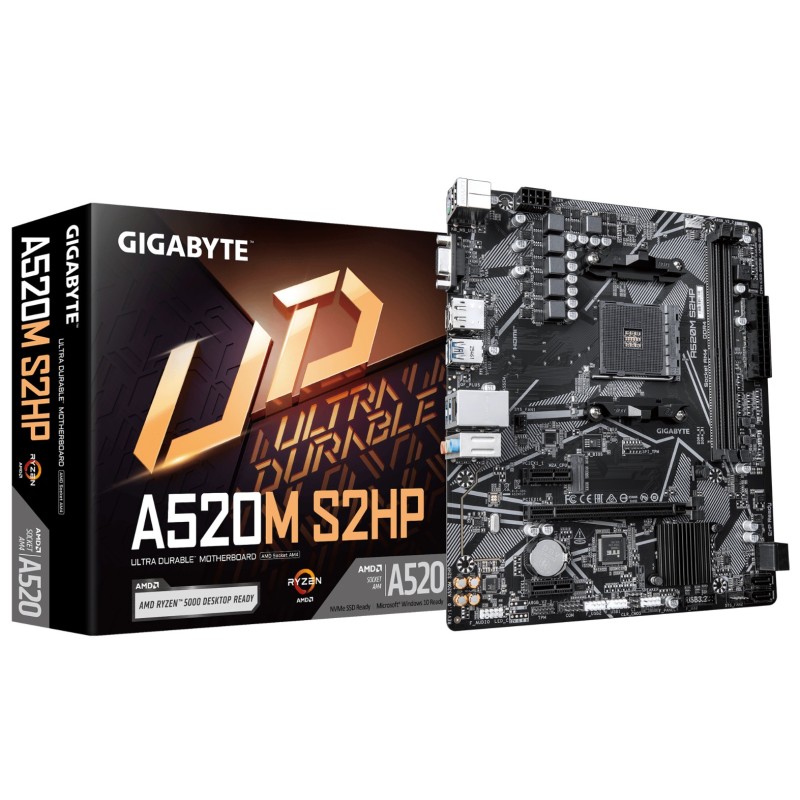

GIGABYTE A520M S2HP/AM4/mATX

Gigabyte A520M S2HP Chipset: AMD A520Rozměrový formát: Micro ATX Form Factor; 24.4cm x 20.5cm Podpora pro procesory: *AMD Ryzen™ 5000 G-Series Processors/ *AMD Ryzen™ 5000 Series Processors/ *AMD Ryzen™ 4000 G-Series Processors/ *AMD Ryzen™ 3000 G-Series Processors/ *AMD Ryzen™ 3000 Series Processors Patice procesoru: AM4 Paměť: *2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) *Podpora pro DDR4 3200/2933/2667/2400/2133 MT/s memory modules *Dual channel memory architecture *Podpora pro ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules *Podpora pro non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules *Podpora pro Extreme Memory Profile (XMP) memory modules Grafické porty:Integrated Graphics Processor with AMD Radeon™ Graphics support: *1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz *1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz *1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Zvuková karta: *Realtek® Audio CODEC *High Definition Audio *2/4/5.1/7.1-channel Ethernet: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) WLAN + Bluetooth: Ne Rozšiřující sloty: CPU: * 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: *2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) RAID řadič: RAID 0, RAID 1, RAID 10 Úložný prostor: *1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 *SATA and PCIe 3.0 x4/x2 SSDs *4 x SATA 6Gb/s connectors USB: CPU: *4 x USB 3.2 Gen 1 ports on the back panel Chipset: *2 x USB 3.2 Gen 1 ports available through the internal USB header *6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) Interní porty: Napájení *1× 24-pin ATX main power connector *1× 8-pin ATX 12V power connector *1× CPU fan header *2× system fan headers Související s úložištěm *1× M.2 Socket 3 connector *4× SATA 6Gb/s connectors USB *1× USB 3.2 Gen 1 header *2× USB 2.0/1.1 headers Ostatní *1× front panel header *1× front panel audio header *1× Trusted Platform Module header *1× serial port header *1× speaker header *1× chassis intrusion header *1× Clear CMOS jumper Porty na zadním panelu: *1 x PS/2 keyboard/mouse port *1 x D-Sub port (Note) *1 x DisplayPort (Note) *1 x HDMI port (Note) *4 x USB 3.2 Gen 1 ports *2 x USB 2.0/1.1 ports *1 x RJ-45 port *3 x audio jacks BIOS: *1 x 128 Mbit flash *Use of licensed AMI UEFI BIOS *PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 H/W Monitoring: *Voltage detection *Temperature detection *Fan speed detection *Overheating warning *Fan fail warning *Fan speed control OS: Podpora pro Windows 11 64-bit / Windows 10 64-bit
