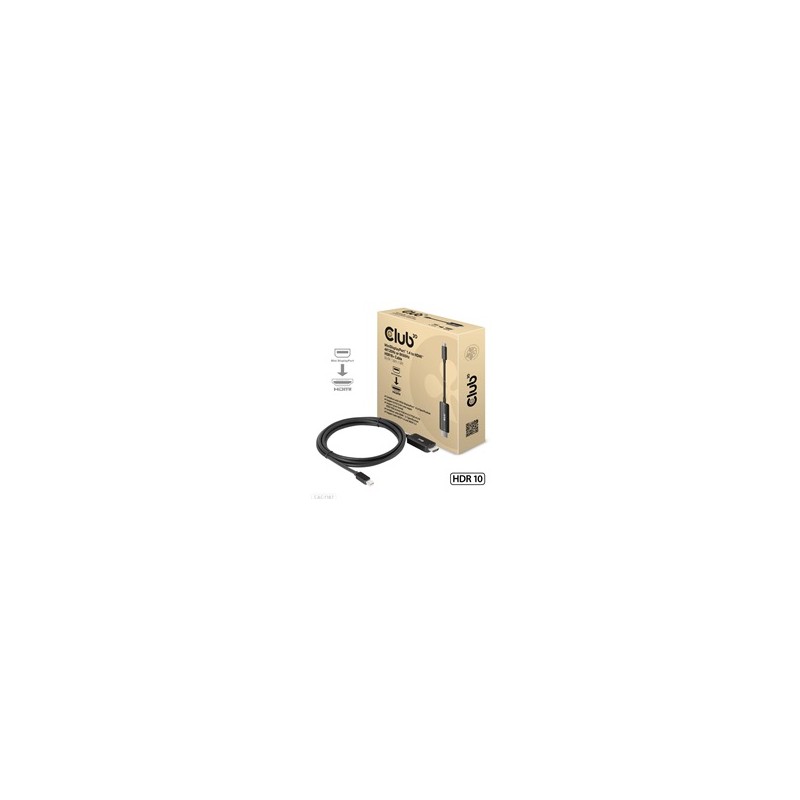

Club3D kabel miniDP 1.4 na HDMI, 4K120Hz nebo 8K60Hz HDR10+, M/M, 1.8m
search
  • Club3D kabel miniDP 1.4 na HDMI, 4K120Hz nebo 8K60Hz HDR10+, M/M, 1.8m

Club3D kabel miniDP 1.4 na HDMI, 4K120Hz nebo 8K60Hz HDR10+, M/M, 1.8m

1 221 Kč
S DPH

Momentálně nedostupné

Kód: CAC1187

  • Délka kabelu: 1,8 m
  • Barva: Černá
  • Počet kusů v balení: 1 kusů
  • Typ kabelu: Kulatý kabel
  • Certifikace: ROHS, FCC, CE EMI
  • Typ balení: Střední/velké
Všechny parametry
Input:Mini DisplayPort; Output:HDMI

Popis

MiniDisplayPort 1.4 to HDMI 4K120Hz or 8K60Hz HDR10+ Cable M/M 1.8m / 6ft

MiniDisplayPort™ 1.4 ready PC or any other device that lacks the new HDMI™ 4K120Hz or 8K60Hz specification, the Club 3D CAC-1187 will be the simple way to upgrade your device and connect to your new TV.
With its DP1.4 DSC video compression technology, this adapter is able to convert DP1.4 video signals to HDMI™, supporting video display resolutions up to 8K (7680x4320/60HZ or 3840x2160/120Hz) and creating life like colors and movements with HDR10+ giving users the ultimate visual experience. The Adapter is powered thru the MiniDP™ port.

  • Compliant with VESA DisplayPort™ v1.4 Specification
  • Support 8/10/12 bit color depth
  • Support pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
  • Compliant with HDMI™ 2.1 Specification
  • Support both HDCP 1.4 and HDCP 2.3
  • Support DSC v1.2a and backward compatible with the former version
  • Support Max. resolution/refresh rates up to 4K120Hz or 8K60Hz
  • Support Dynamic HDR10+
  • Support 1 to 32 channels LPCM 192kHz audio output
  • Supports HBR audio up to 1536kHz

TECHNICAL SPECIFICATIONS

Applications • For the host device like laptop, desktop, video converter adaptor, docking station, projector, gaming and display system like TV*, digital signage, VR/AR system.
• Perfect for Host Devices which are featured with the DP1.4 graphic card that supports MiniDP video signal output for gaming, commercial applications**.
Supported resolutions • Support Max. resolution/timing up to 4K120Hz or 8K60Hz
This adapter will function with lower specifications GPU’s, be aware performance will be reduced due to the specifications of that GPU !!
OS Support • Microsoft, Mac OS
In the box • CAC-1187 MiniDisplayPort™ 1.4 to HDMI™ 4K120Hz or 8K60Hz HDR10+ Cable M/M 1.8m / 6ft
Available Interfaces Input:
• 1x MiniDP (Male)
Output:
• 1x HDMI™ (Male)
Other info • Box size: 14.5 x 14.5 x 4.5cm / 5.71 x 5.71 x 1.77"
• Cable Length : 1.8m / 6ft
• Connector dimensions:
- MiniDisplayPort™ Male 3.42 x 1.06 x 0.8 cm / 1.35 x 0.42 x 0.31"
- HDMI™ Male 6.3 x 2 x 1.1 cm / 2.48 x 0.79 x 0.43"
• Cable Weight: 63 gr / 2.22 oz
• Box Weight: 45 gr / 1.59 oz
• LDPE Bag Weight: 5gr / 0.18 oz
• Total Weight: 113 gr / 3.99 oz
• Meets ROHS, FCC, and CE EMI requirements

Note:
- Please update your TV Firmware to the version which supports these resolutions/refresh rates !
- Please update your Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support the these resolutions/refresh rates!


In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.

Parametry

Délka kabelu1,8 m
BarvaČerná
Počet kusů v balení1 kusů
Typ kabeluKulatý kabel
CertifikaceROHS, FCC, CE EMI
Typ baleníStřední/velké
Hmotnost63 g
Maximální rozlišení7680 x 4320 px
Podpora HDRAno
HDCPAno
Hmotnost včetně balení113 g
Konektor 1Mini Displayport
Konektor 2HDMI Typ A (standardní)
Pohlaví konektoru 2Male
Šířka balení145 mm
Hloubka balení45 mm
Pohlaví konektoru 1Muži
Výška balení145 mm
Váha hlavního obalu0 g
Podporované operační systémy MacAno
Podporované operační systémy WindowsAno
Formát konektoru 1Přímý
Plug and PlayAno
Maximální rychlost obnovy120 Hz
Kód harmonizovaného systému8544 4290
Verze HDMI2.1
Verze DisplayPortu1.4
Verze HDCP1.4/2.3
Technologie vysokého dynamického rozsahu (HDR)High Dynamic Range 10+ (HDR10 Plus)
Formát konektoru 2Přímý
Hmotnost plastového obalu5 g
Hmotnost papírového/lepenkového obalu45 g
Obnovovací frekvence při maximálním rozlišení60 Hz
Vzorkování barev4:2:2, 4:4:4, 4:2:0
Rozměry konektoru 1 (š x h x v)10,6 x 34,2 x 8 mm
Rozměry konektoru 2 (š x h x v)20 x 63 x 11 mm
Barevná hloubka12 bit
