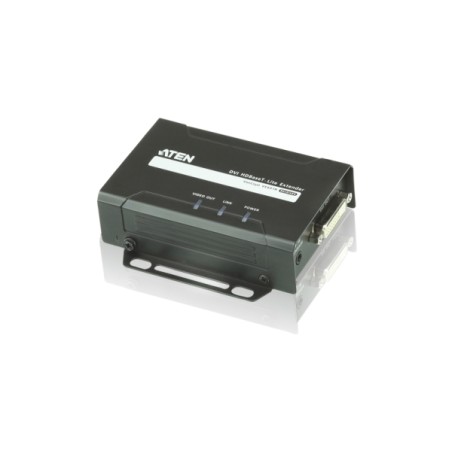

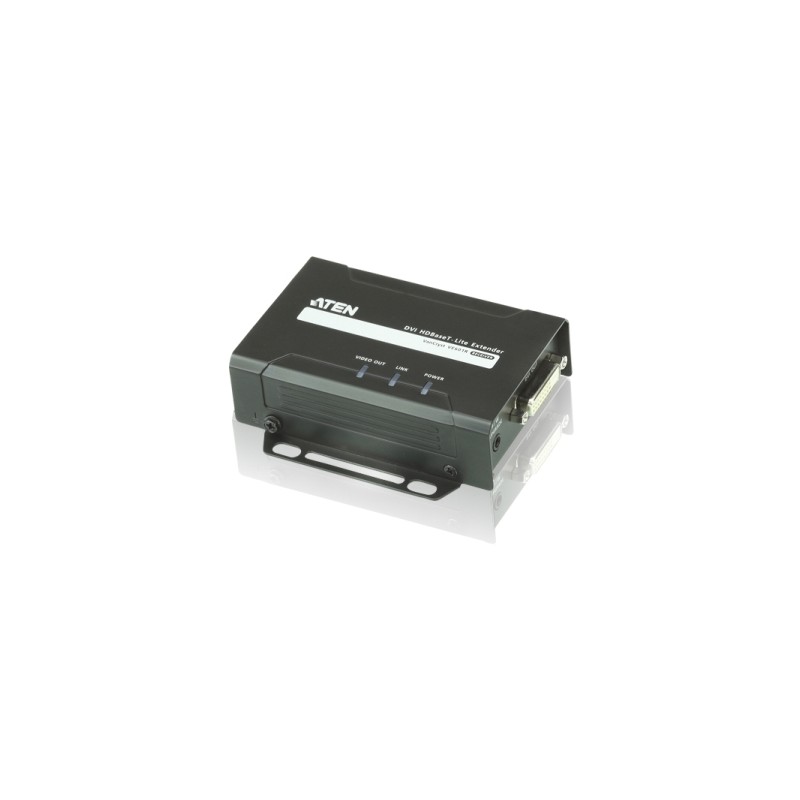

DVI HDBaseT-Lite Receiver (1080p@70m) (HDBaseT Class B)
search
  • DVI HDBaseT-Lite Receiver (1080p@70m) (HDBaseT Class B)

DVI HDBaseT-Lite Receiver (1080p@70m) (HDBaseT Class B)

2 961 Kč
S DPH

Momentálně nedostupné

Kód: VE601RATG

  • Délka kabelu: 70 m
  • Barva: Černá
  • Model: Síťový vysílač a přijímač
  • Materiál: Kovový
  • Formát: 1080p
  • Maximální rozlišení: 1920 x 1080 px
Všechny parametry
The VE601R DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-

Popis

The VE601R DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation. The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability. * Compatible HDBaseT Transmitter Units: VE601T, VE801T Features: HDBaseT Connectivity – extends a DVI connection up to 70 meters via a single Ethernet cable HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology Rack-Mountable Package Contents: 1x VE601R DVI HDBaseT-Lite Receiver 1x 0AD6-1F05-26EG Power Adapter 1x User Instructions

Parametry

Délka kabelu70 m
BarvaČerná
ModelSíťový vysílač a přijímač
MateriálKovový
Formát1080p
Maximální rozlišení1920 x 1080 px
Provozní rozsah teplot (T-T)0 - 50 °C
Rozsah teplot při skladování (T-T)-20 - 60 °C
Doporučená provozní relativní vlhkost0 - 80 %
HDCPAno
Certifikáty shodyRoHS
Maximální přenosová vzdálenost70 m
LED indikátoryAno
Napájecí konektorAno
Podporované kabelové typyCat5e, Cat6, Cat6a
Port HDBaseTAno
Impedance100 ohm
Hmotnost receiveru250 g
Rozměry receiveru (š x h x v)87 x 102 x 30 mm
Certifikát HDBaseTAno
Počet vstupních portů DVI1
FunkceHDBaseT Connectivity – extends a DVI connection up to 70 meters via a single Ethernet cable
