Supermicro SNK-P0070APS4 4U Heatsink s.3647-0 X11 Purley Platform 4U Series Servers and Workstations
search
  • Supermicro SNK-P0070APS4 4U Heatsink s.3647-0 X11 Purley Platform 4U Series Servers and Workstations

Supermicro SNK-P0070APS4 4U Heatsink s.3647-0 X11 Purley Platform 4U Series Servers and Workstations

1 738 Kč
S DPH

Skladem

Kód: SNKP0070APS4

  • Typ: Air cooler
  • Thermal Design Power (TDP): 205 W
  • Určeno pro: Tower servery
  • Počet ventilátorů: 1 fan(s)
  • Kapacita racku: 4U
  • Průměr ventilátoru: 92 mm
Všechny parametry

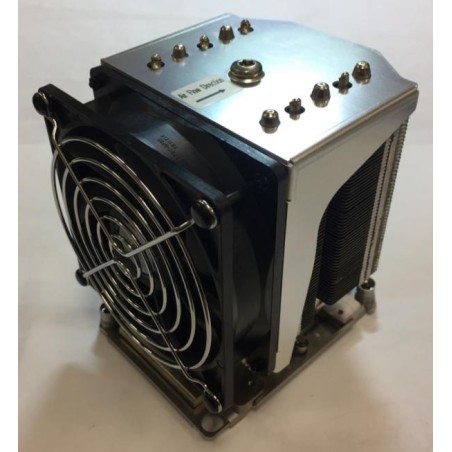

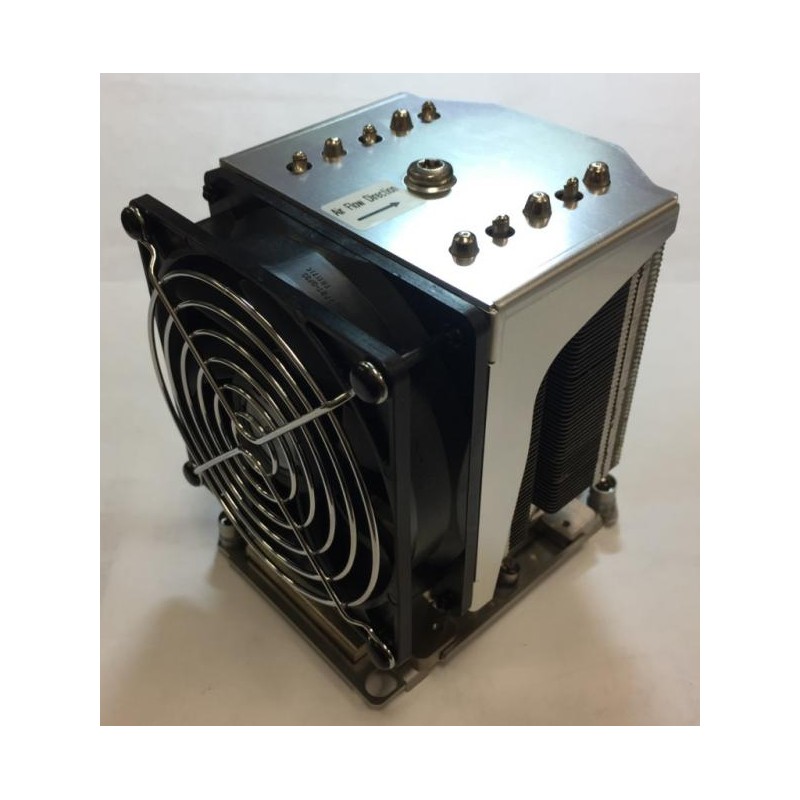

Active CPU Heat Sink

Popis

This CPU heat sink is designed for Supermicro X11 generation general 4U servers and workstations equipped with Intel® Xeon® scalable processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance. Manufacturer Supermicro Server Form Factor 4U Cooling Type Active CPU Configuration Uni Processor, Dual Processor Supported CPU SKU Intel® Xeon® Scalable Processors Supported CPU Socket FCLGA3647-0 (Narrow Mounting Mechanism) Supported CPU TDP Up to 205 Watts Attached Cooling Fan Speed Control: 4-pin PWM Rated Voltage: 12.0 VDC Rated Speed: 3,800 RPM Acoustic Noise: 38.0 dB(A) at Rated Speed Fan Dimensions: 92L x 92H x 25W (mm) Position: Front Side MTBF/MTTF: 108,798 Hours Warranty 1 year warranty Product Environmental Compliance RoHS and REACH compliant, details available upon request

Parametry

TypAir cooler
Thermal Design Power (TDP)205 W
Určeno proTower servery
Počet ventilátorů1 fan(s)
Kapacita racku4U
Průměr ventilátoru92 mm
Konektor ventilátoru4-pin
Rozměry ventilátoru (š x h x v)92 x 25 x 92 mm
Kód harmonizovaného systému84733080
Střední doba mezi poruchami (MTBF)108798 h
Jmenovité napětí12 V
Střední doba do poruchy (MTTF)108798 h
Vhodné umístěníProcessor
Kompatibilní řady procesorůIntel® Xeon®
Podporované patice procesoruLGA 3647 (Socket P)
