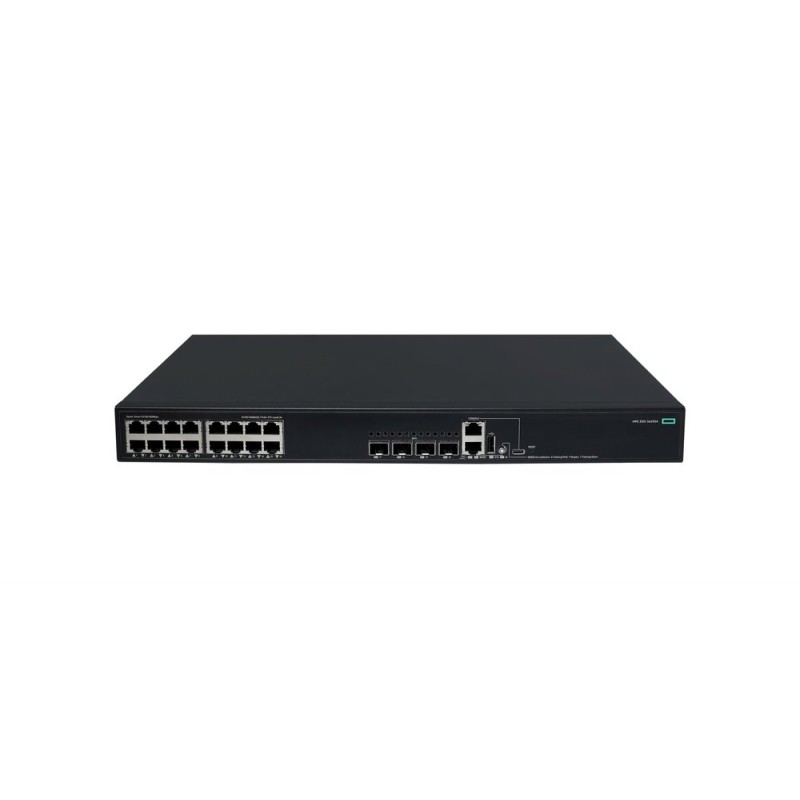

HPE NW CW 2150 16G PoE+ 4P 24-Stock/.
search
  • HPE NW CW 2150 16G PoE+ 4P 24-Stock/.

HPE NW CW 2150 16G PoE+ 4P 24-Stock/.

13 046 Kč
S DPH

Skladem

Kód: S6X55A

  • Hmotnost: 4600 g
  • Šířka: 380 mm
  • Výška: 133.1 mm
  • Hloubka: 549.9 mm
  • Vnitřní paměť: 512 MB
  • Počet portů Ethernetu (RJ-45): 16
Všechny parametry
Networking CW 2150 16p 10M/100M/1G PoE+ 4p SFP+ 1G/10G 248W Switch

Popis

HPE Networking CW 2150 Switch Series empowers your business with reliable, high-performance networking tailored for small and medium-sized businesses and branch offices. These fully managed, stackable Layer 3 switches deliver enterprise-grade features without the complexity or high cost. With CW 2150 series, you get seamless management, robust security, and flexibility to scale as your needs grow. Designed for today’s evolving networks, these switches provide affordable excellence—enabling you to connect and protect your business with confidence. Upgrade to the CW 2150 series and experience secure, simple, and powerful networking for your organization.

What is new supporting point:
Up to 176 Gbps in nonblocking bandwidth, 130 Mpps in forwarding, and up to 9‑switch IRF stack
Enterprise-class, fully managed, stackable Layer 3 switch series with 8‑, 16‑, 24‑, and 48‑port Class 4 PoE and non‑PoE models, four 1G/10G SFP+ uplinks, and up to 770 W of Class 4 PoE
Flexible connectivity options with four 1G/10G SFP+ uplinks in the 16‑, 24‑, and 48‑port models and two 1G SFP and two 1G/10G SFP+ uplinks in the 8‑port model
Advanced Quality of Service (QoS), IPv6, and dynamic L3 protocols (RIP and OSPF) for reliable connectivity
Fanless design in the 8‑port and 24‑/48‑port non‑PoE models. Supports IEEE 802.3az standard for Energy Efficient Ethernet (EEE)
Managed by Web GUI, CLI, Smart Management Center (SmartMC) web dashboard, HPE Intelligent Management Center (IMC), SNMP, and REST APIs

Parametry

Hmotnost4600 g
Šířka380 mm
Výška133.1 mm
Hloubka549.9 mm
Vnitřní paměť512 MB
Počet portů Ethernetu (RJ-45)16
Provozní rozsah teplot (T-T)-5 - 50 °C
Vstupní střídavé napětí100 - 240 V
Typ napájeníNapájecí adaptér
ÚčelVnitřní
Počet vrstev na paletě9
PlatformaComware
Počet letDoživotní
Typ přepínačeŘízený
Provedenísamostatně stojící
SprávaFull Managed
Power over Ethernet (PoE)Ano
Hmotnost (imperiální jednotky)10.141 lbs
Základní frekvence procesoru1200 MHz
Přepínací kapacita112 Gbit/s
Rychlost přenosu10/100/1000
Vstupně-výstupní porty16 x 10/100/1000BASE-T PoE+ ports 4 x 1/10GBASE-X SFP+ ports 1 x RJ-45 console, 1 x USB Type-C console, 1 x USB and 1 x OOBM management
Propustnost83 Mpps
Počet zdrojů1
PoEANO
Vestavěný procesorAno
Celkový rozpočet Power over Ethernet (PoE)248 W
Tepelný výkon1982 BTU/h
Typy PoEPoE-Out (pouze)
Maximální rychlost LAN1G
StohovatelnýAno
Řada SwitcheCW 2150
Poznámka ke spotřebě energieIdle: 25W Typical: 38W Full load: 317W (PoE 248W)
Rozměry (Š x H x V) (imperiální jednotky)14.96 x 21.65 x 5.24 "
Správa výkonuWeb GUI Command Line Interface (CLI) Smart Management Center (SmartMC) HPE Intelligence Management Center (IMC) HPE Networking Management Software (AirWave) REST API SNMP
Paměť a procesorCPU: Dual-core Arm at 1.2 GHz Flash: 512 MB SDRAM: 1 GB
ŠasiKovové
StohováníIntelligent Resilient Framework (IRF)
VentilátorANO
Latence1 GE: < 5μs 10 GE: < 3μs (64-byte packets)
PoE standard802.3bt
Počet portů QSFP28 (100Gbps)bez
Počet portů SFP28 (25Gbps)bez
Redundantní napájeníNE
VrstvaL3
Počet portů 1G BASE-Tbez
Rozšiřující slotybez
Počet portů SFP (1Gbps)bez
Počet portů SFP+ (10Gbps)4
Poznámka k napájecímu zdrojiFixed, 90–264V, single AC
Počet portů QSFP-DD (400Gbps)bez
Počet portů Combobez
Počet portů SFP56 (50Gbps)bez
Počet SmartRate portůbez
Počet portů 10G BASE-Tbez
Počet portů QSFP+ (40Gbps)bez
PoE budget248
