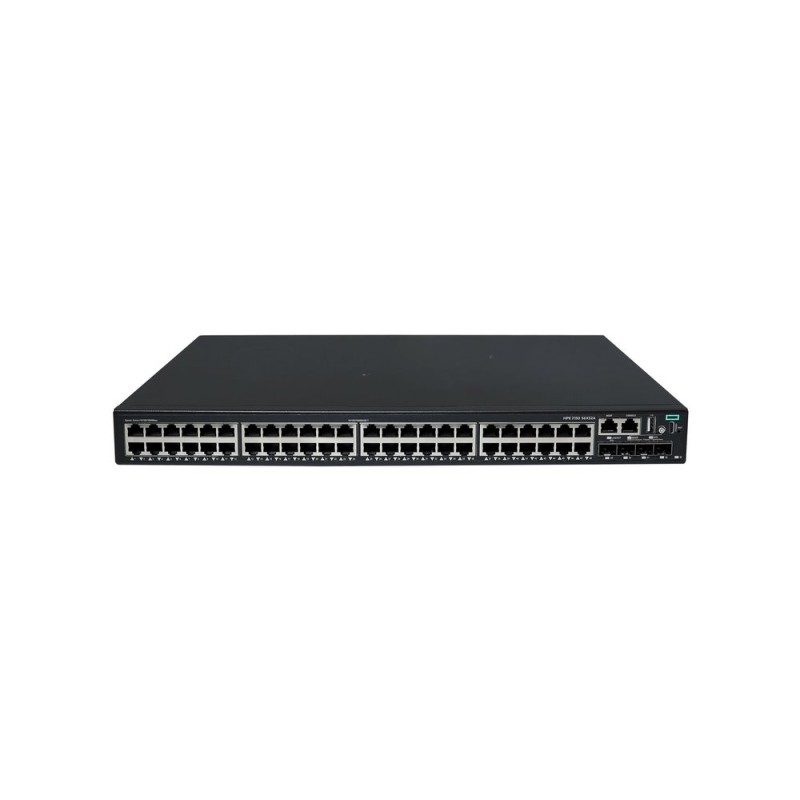

NW CW 2150 48G 4P SW-STOCK/.
search
  • NW CW 2150 48G 4P SW-STOCK/.

NW CW 2150 48G 4P SW-STOCK/.

35 640 Kč
S DPH

Skladem

Kód: S6X52A

  • Hmotnost: 4750 g
  • Šířka: 380 mm
  • Výška: 125 mm
  • Hloubka: 549.9 mm
  • Vnitřní paměť: 512 MB
  • Počet portů Ethernetu (RJ-45): 48
Všechny parametry
Networking CW 2150 48p 10M/100M/1G 4p SFP+ 1G/10G Switch

Popis

HPE Networking CW 2150 Switch Series empowers your business with reliable, high-performance networking tailored for small and medium-sized businesses and branch offices. These fully managed, stackable Layer 3 switches deliver enterprise-grade features without the complexity or high cost. With CW 2150 series, you get seamless management, robust security, and flexibility to scale as your needs grow. Designed for today’s evolving networks, these switches provide affordable excellence—enabling you to connect and protect your business with confidence. Upgrade to the CW 2150 series and experience secure, simple, and powerful networking for your organization. What is new supporting point: Fanless design in the 8‑port and 24‑/48‑port non‑PoE models. Supports IEEE 802.3az standard for Energy Efficient Ethernet (EEE) Managed by Web GUI, CLI, Smart Management Center (SmartMC) web dashboard, HPE Intelligent Management Center (IMC), SNMP, and REST APIs Enterprise-class, fully managed, stackable Layer 3 switch series with 8‑, 16‑, 24‑, and 48‑port Class 4 PoE and non‑PoE models, four 1G/10G SFP+ uplinks, and up to 770 W of Class 4 PoE Up to 176 Gbps in nonblocking bandwidth, 130 Mpps in forwarding, and up to 9‑switch IRF stack Flexible connectivity options with four 1G/10G SFP+ uplinks in the 16‑, 24‑, and 48‑port models and two 1G SFP and two 1G/10G SFP+ uplinks in the 8‑port model Advanced Quality of Service (QoS), IPv6, and dynamic L3 protocols (RIP and OSPF) for reliable connectivity

Parametry

Hmotnost4750 g
Šířka380 mm
Výška125 mm
Hloubka549.9 mm
Vnitřní paměť512 MB
Počet portů Ethernetu (RJ-45)48
Provozní rozsah teplot (T-T)-5 - 50 °C
Vstupní střídavé napětí100 - 240 V
Typ napájeníNapájecí adaptér
ÚčelVnitřní
Počet vrstev na paletě9
PlatformaComware
Počet letDoživotní
Typ přepínačeŘízený
Provedenísamostatně stojící
SprávaFull Managed
Power over Ethernet (PoE)Ne
Hmotnost (imperiální jednotky)10.472 lbs
Základní frekvence procesoru1200 MHz
Přepínací kapacita176 Gbit/s
Rychlost přenosu10/100/1000
Vstupně-výstupní porty48 x 10/100/1000BASE-T ports 4 x 1/10GBASE-X SFP+ ports 1 x RJ-45 console, 1 x USB Type-C console, 1 x USB and 1 x OOBM management
Propustnost130 Mpps
Počet zdrojů1
PoENE
Vestavěný procesorAno
Tepelný výkon143 BTU/h
Typy PoEBez
Maximální rychlost LAN1G
StohovatelnýAno
Řada SwitcheCW 2150
Poznámka ke spotřebě energieIdle: 13W Typical: 31W Full load: 42W
Rozměry (Š x H x V) (imperiální jednotky)14.96 x 21.65 x 4.92 "
Správa výkonuWeb GUI Command Line Interface (CLI) Smart Management Center (SmartMC) HPE Intelligence Management Center (IMC) HPE Networking Management Software (AirWave) REST API SNMP
Paměť a procesorCPU: Dual-core Arm at 1.2 GHz Flash: 512 MB SDRAM: 1 GB
ŠasiKovové
StohováníIntelligent Resilient Framework (IRF)
VentilátorNE
Latence1 GE: < 5μs 10 GE: < 3μs (64-byte packets)
PoE standardBez
Počet portů QSFP28 (100Gbps)bez
Počet portů SFP28 (25Gbps)bez
Redundantní napájeníNE
VrstvaL3
Počet portů 1G BASE-Tbez
Rozšiřující slotybez
Počet portů SFP (1Gbps)bez
Počet portů SFP+ (10Gbps)4
Poznámka k napájecímu zdrojiFixed, 90–264V, single AC
Počet portů QSFP-DD (400Gbps)bez
Počet portů Combobez
Počet portů SFP56 (50Gbps)bez
Počet SmartRate portůbez
Počet portů 10G BASE-Tbez
Počet portů QSFP+ (40Gbps)bez
