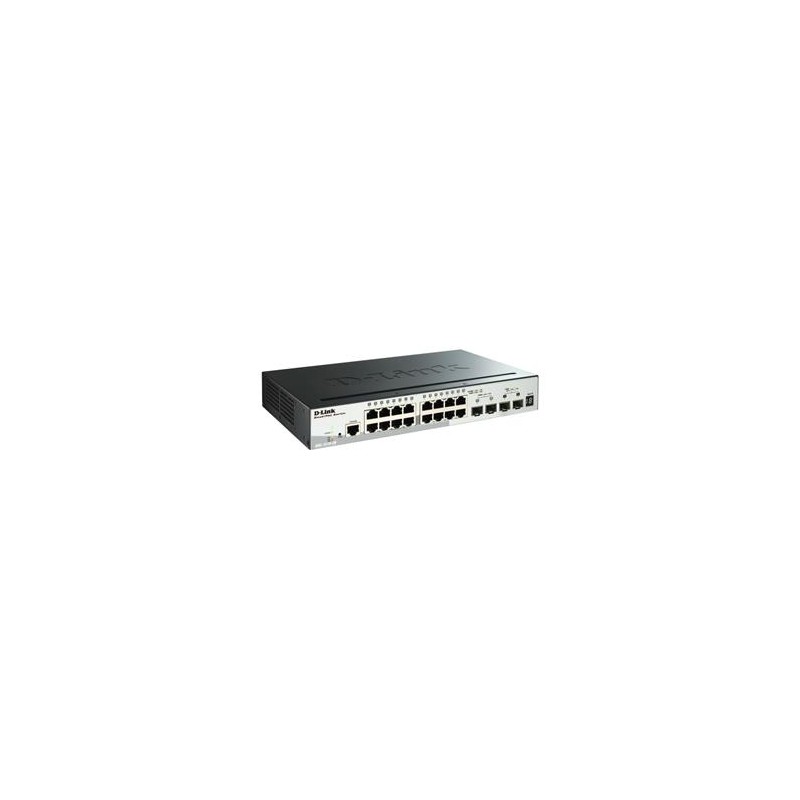

D-Link DGS 1510-20 - Přepínač - L3 - inteligentní - 16 x 10/100/1000 + 2 x gigabitů SFP + 2 x 10 Gigabit SFP+ - desktop, Lze

Informace k záruce: Na produkt je poskytována omezená doživotní záruka, to znamená, že záruční lhůta vyprší až pět let poté, co společnost D-Link (nebo její nástupce) ukončí prodej daného produktu v Evropě. Pro nárok na omezenou doživotní záruku je třeba produkt zaregistrovat (viz níže) u D-Link Europe do třiceti (30) dnů od data zakoupení. Registraci lze provést přes samoobslužný portál. http://www.dlink.com/cz/cs/support/product-registration-and-support-log-in DGS-1510-20: 20-Port Gigabit Stackable Smart Managed Switch including 2 10G SFP+ and 2 SFP ports (smart fans) OVERVIEW The DGS-1510 Series is D-Link’s latest generation of SmartPro switches with 10G port connectivity, making them ideal for deployment in SME/SMB core environments. The DGS-1510 Series provides a reliable, scalable, and modular interconnection between core switches and edge switches with rich capabilities and simplified flexibility. Available in 16, 24 or 48 10/100/1000 Mbps port models, these switches also include 2 Gigabit SFP ports and 2 10G SFP+ ports. SPECIFICATIONS GENERAL Port Standards & Functions • IEEE 802.3 10BASE-T Ethernet • IEEE 802.3u 100BASE-TX Fast Ethernet • IEEE 802.3ab 1000BASE-T Gigabit Ethernet • 802.3ae 10 GbE, • IEEE 802.3x Flow Control for Full-Duplex Mode, • Auto-negotiation Number of Ports • 16 10/100/1000 Mbps, 2 Gigabit SFP, 2 10G SFP+ Network Cables • UTP Cat. 5, Cat. 5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.) Full/Half Duplex • Full/half duplex for 10/100 Mbps and Gigabit speed Media Interface Exchange • Auto or configurable MDI/MDIX PERFORMANCE Switching Capacity • 76 Gbps Transmission Method • Store-and-forward MAC Address Table • 16,000 entries per device MAC Address Update • Up to 512 static MAC entries, • Enable/disable auto-learning of MAC addresses Maximum 64 bytes Packet Forwarding Rate • 56.54 Mpps Packet Buffer Memory • 1.5 MB per device PHYSICAL & ENVIRONMENTAL AC Input • 100 to 240 VAC 50/60 Hz internal universal power supply Maximum Power Consumption • 20.3 W Standby Power Consumption • 12.2 W Smart Fan Quantity • 1 Acoustics • 43.8 dB(A) Heat Dissipation • 41.602 BTU/hr Operation Temperature • -5 to 50 °C Storage Temperature • -20 to 70°C Operation Humidity • 0% to 95% non-condensing Storage Humidity • 0% to 95% non-condensing Dimensions • 280 x 180 x 44 mm (11 x 7.09 x 1.73 inches) • 19” standard rack mounting width, 1U height Weight • 1.24 kg Diagnostic LEDs • Power/Stacking ID/Fan (per device), • Link/Activity/Speed (per 10/100/1000 Mbps port), • Link/Activity/Speed (per Gigabit SFP port), • Link/Activity/Speed (per 10G SFP+ port) Certifications • CE, FCC, C-Tick, VCCI, BSMI, CCC • Safety cUL, CB
