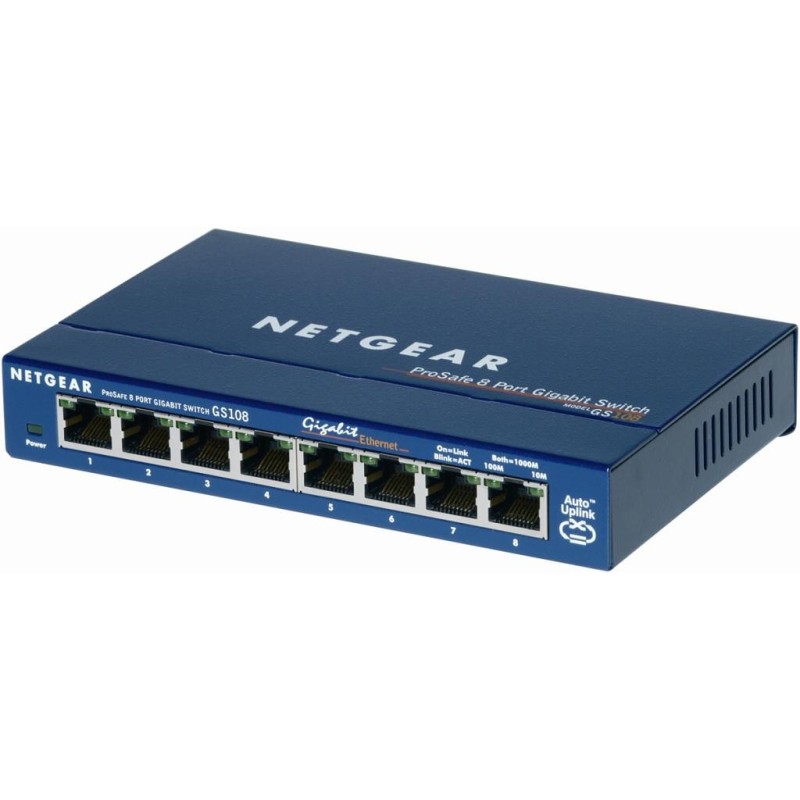

NETGEAR 8xGIGABIT Desktop switch, GS108GE

707 Kč
S DPH

Skladem

Kód: GS108GE

  • Barva: Modrá
  • Hmotnost: 760 g
  • Šířka: 158 mm
  • Výška: 27 mm
  • Hloubka: 105 mm
  • Síťové standardy: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Všechny parametry
OVERVIEW The NETGEAR ProSAFE® Gigabit Unmanaged Switch series helps businesses cost-effectively expand their network to Gigabit speeds and higher port counts. These unmanaged Gigabit switches come in a wide range of models including desktop and rackm...

Popis

OVERVIEW The NETGEAR ProSAFE® Gigabit Unmanaged Switch series helps businesses cost-effectively expand their network to Gigabit speeds and higher port counts. These unmanaged Gigabit switches come in a wide range of models including desktop and rackmount form factors and 5 to 24 port configurations. The GS108P supports PoE for low-cost PoE solution. These switches are energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks. NETGEAR Warranty *This product is backed by a NETGEAR ProSAFE® Lifetime Hardware Warranty. Click here ( <http://www.netgear.com/business/documents/prosafe-lifetime-warranty/default.aspx> ) for coverage, availability and terms and conditions. *Lifetime Next Business Day Hardware Replacement. Click here ( <http://www.netgear.com/business/documents/prosafe-lifetime-warranty/nbd.aspx> ) for coverage, availability and terms and conditions. *ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three, or five year contracts. *ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). TECH SPECS Product Number *GS108 Speed *10/100/1000Mbps Gigibit Ethernet Number of Ports *8 PoE ports *n/a Total PoE Budget *n/a Loop Detection *n/a Short cable power saving *n/a Energy Efficient Ethernet Support (IEEE802.3az) *Yes Jumbo Frame Support *Yes Queue WRR Ratio *1:2:4:8 MAC Table Size *4K Packet buffer size *192KB IEEE 802.1p QoS *Yes Dimensions (WxDxH) @mm *158x101x27 Weight (kg) *0.52 Max Power Consumption *4.9W Max Operating Temperature *0 to 40C MTBF (hours) *1,044,500 FCC Class *B WEBSITE *Technical specification: http://www.netgear.com/business/products/switches/unmanaged/GS108.aspx#tab-techspecs

Parametry

BarvaModrá
Hmotnost760 g
Šířka158 mm
Výška27 mm
Hloubka105 mm
Síťové standardyIEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Počet portů Ethernetu (RJ-45)8
Provozní rozsah teplot (T-T)0 - 40 °C
Doporučená provozní relativní vlhkost10 - 90 %
Hmotnost včetně balení469 g
Šířka balení220 mm
Hloubka balení165 mm
Výška balení165 mm
Přenosová rychlost sítě Ethernet1 Gbps
Maximální přenosová rychlost1 Gbit/s
Napájecí zdrojDC
Podporované operační systémyWindows, Linux, Mac OS
Počet portů8-10
Podpora napájení po Ethernetu (PoE)Ne
Typ přepínačeNespravované
Typy přepínaných ethernetových portů RJ-45Gigabit Ethernet (10/100/1000)
Podpora 10GNe
Instalace do rackuNe
Stohovatelnostne
Napájecí zdroj v ceněAno
SprávaNemanagovatelný
Odezva40 µ
Spotřeba elektrické energie14 W
SFPNE
Kód harmonizovaného systému85176990
Počet přepínaných portů Ethernet (RJ-45)8
Technologie kabeláže Ethernetu - měď1000Base-T, 100Base-TX, 10Base-T
Podpora kontroly tokuAno
Kapacita přepínání16 Gbit/s
Tabulka MAC adres8000 pol.
PoE 802.3afNe
Rychlost přenosu10/100/1000
Rozměry (š x h x v)235,5 x 100,8 x 27 mm
Vstupně-výstupní porty8x 10/100/1000 (RJ-45)
Plně duplexní režimAno
Provedení switcheDesktop
Integrovaný switchAno
PoENE
PoE rozpočet (W)Nevztahuje se
SíťGigabit Ethernet
BezpečnostUL (UL 1950), CUL, C-Tick
Podporované přenosové rychlosti10/100/1000 Mbps
Energetické požadavky5V @ 2.8 A DC
LED kontrolky propojeníAno
Typy přiložených koncovekEU
Elektromagnetické vyzařováníCE, FCC Part 15 Class A, EN 55 022 (CISPR 22), Class A VCCI
