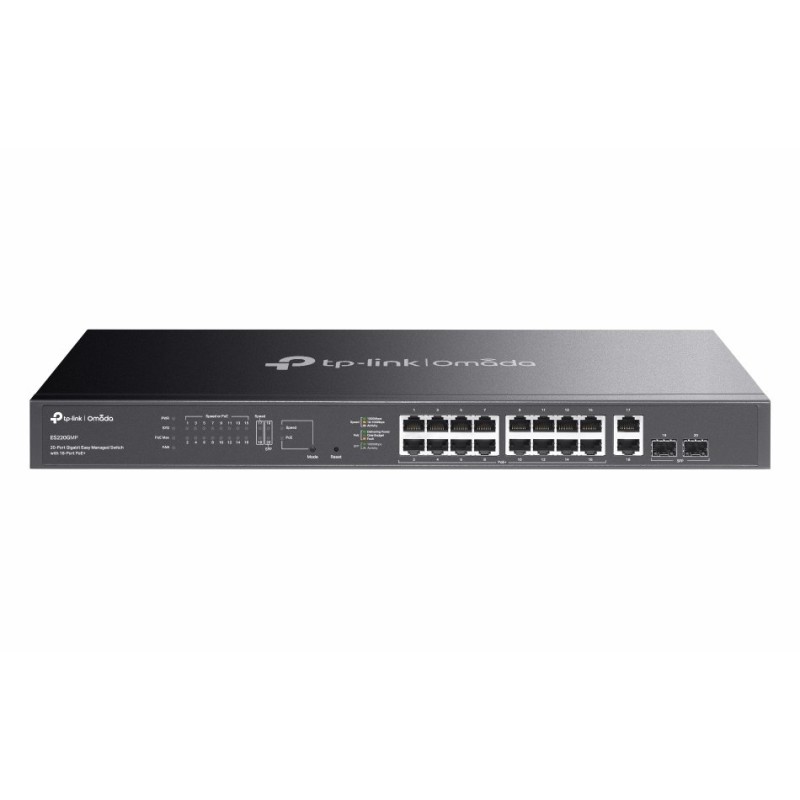

TP-Link OMADA switch ES220GMP

TP-Link OMADA switch ES220GMP Omada 20portový gigabitový Easy Managed switch s 16 porty PoE+ 16× gigabitové PoE+ RJ45 porty kompatibilní s 802.3at/af 2× gigabitový RJ45 port, 2× gigabitový SFP/RJ45 combo port Rozpočet PoE napájení 250 W, až 30 W pro každý PoE port Snadné použití: Podporuje plug-and-play pro okamžité připojení a jednoduchou konfiguraci pro další funkce Centralizovaná cloudová správa přes web nebo aplikaci Omada Až 250 m PoE, QoS, automatické obnovení PoE a izolace portů pro spolehlivou síť v dohledových systémech Automatická prevence smyček, VLAN a IGMP Snooping Odolné kovové pouzdro a možnost montáže na stůl nebo zeď Learn more about TP-Link PoE technology > Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-easy-managed/es220gmp/ Technické specifikace HARDWARE FEATURES Interface • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+) • 2× 10/100/1000 Mbps RJ45 Port • 2× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIX Fan Quantity 2 Installation Rackmountable Physical Security Lock ? Power Supply 100–240V AC, 50/60Hz PoE Ports (RJ45) • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 16 ports • PoE Budget: 250W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery‡ • Up to 250m PoE transmission distance** Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm) Surge Protection ±6kV PERFORMANCE Switching Capacity 40 Gbps Packet Forwarding Rate 29.76 Mpps MAC Address Table 8K Packet Buffer Memory 4 Mbit Jumbo Frame 15 KB SOFTWARE FEATURES Quality of Service • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control? L2 Features • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP L2 Multicast • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave VLAN • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID Transmission Method Store-And-Forward MANAGEMENT Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller Management Features • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† OTHERS Certification FCC, CE, RoHS Package Contents • ES220GMP • Power Cord • Mounting Brackets • Rubber Feet • Screws • Installation Guide Environment • Operating Temperature: -5?~50? (23?~122?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
