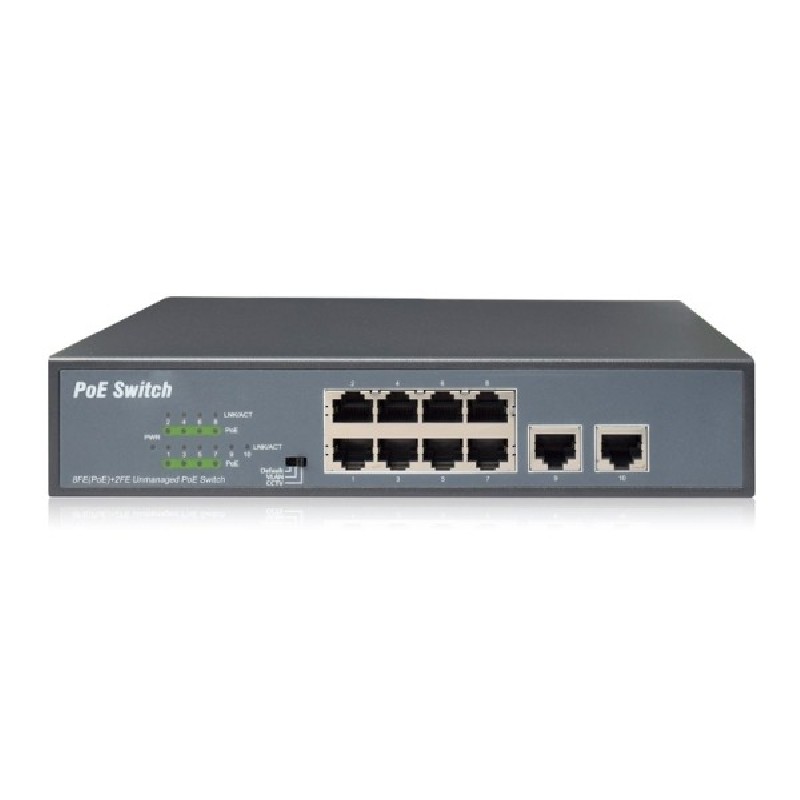

DIGITUS 8 Port Fast Etherent PoE Switch + 2 Uplinks

DIGITUS 8 Port Fast Etherent PoE Switch + 2 Uplinks z kategorie Switche.

Hlavní parametry:

• Počet portů: 8-10
• Rychlost přenosu: 10/100
• Správa: Nemanagovatelný
• PoE 802.3af: PoE
• SFP: Ne

Popis výrobce (anglicky)

Description Fast Ethernet PoE af/at 8 port switch + 2 uplinks 120W PoE power budget, rack mountable Network Switch with integrated Power over Ethernet (PoE) solution for an optimal, cost effective and fast integration in small or medium-sized networks 8-port 10/100Base-TX with PoE support 2-port Fast Ethernet uplink Meets the network standards IEEE 802.3, IEEE802.3u, IEEE802.3q, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at The VLAN mode provides a port-based VLAN function that prevents multicast or broadcast requests from interfering with each other The Extensive mode offers range extension of up to 250 m at 10 Mbps Maximum PoE power of 120 watts Technical Details 8-port 10/100Base-TX with PoE support 2-port Fast Ethernet uplink Meets the network standards IEEE 802.3, IEEE802.3u, IEEE802.3q, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at With integrated DIP switch to enable VLAN or extensive mode Extensive mode for ranges up to 250 meters with a transmission rate of 10Mbps PoE current output 55 V DC, max. 30 W per port PoE power supply mode A, PIN 1/2(+), 3/6(-) Supports non-blocking, non-head-of-line forwarding Supports back pressure and bandwidth control in each port Store and forward technology for optimized data transfer Automatic speed and half/full duplex recognition/adjustment Auto MDI/MDI-X function Backplane with 2 Gbps Supports up to 8K MAC addresses Integrated power supply unit Maximum PoE power of 120 watts Maximum output line 125 watts Fanless design Package content 8 Port Fast Etherent PoE Switch + 2 Uplinks Quick start guide Power Cable Mounting accessories
