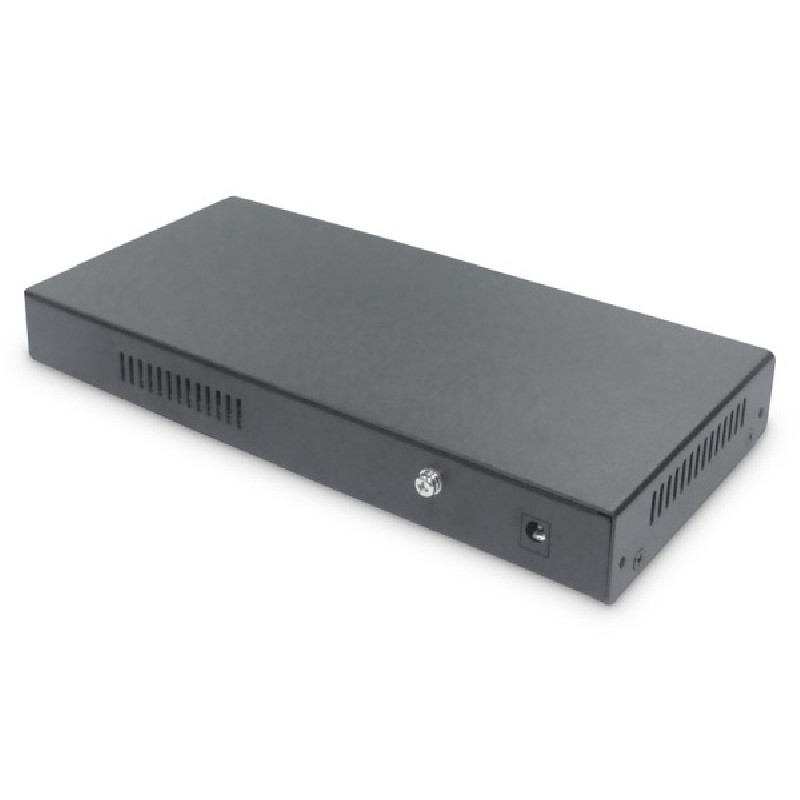

DIGITUS Professional L2 managed 8-Port Gigabit PoE Switch + 2 SFP

DIGITUS Professional L2 managed 8-Port Gigabit PoE Switch + 2 SFP z kategorie Switche.

Hlavní parametry:

• Počet portů: 8-10
• Rychlost přenosu: 10/100/1000
• Správa: Managovatelný
• PoE 802.3af: PoE
• SFP: Ano

Popis výrobce (anglicky)

Description L2 managed 8-Port Gigabit PoE Switch + 2 SFP 10/100/1000Mbps, 86W PoE Power Budget, Integrated Power over Ethernet (PoE) and network management features for small and medium network environments 8-Port 10/100/1000Base-T with PoE support 2-Port Gigabit SFP Uplink Meets the network standards IEEE 802.3, IEEE802.3ad, IEEE802.1d, IEEE 802.3u, IEEE 802.3ab, IEEE802.1p, IEEE802.1x, IEEE802.1q, IEEE802.1w, IEEE802.1s, IEEE802.1z, IEEE802.3ah, IEEE802.1ag, IEEE 802.3af and IEEE802.3at Supports Port Configuration, PoE Port Configuration, Port Mirroring, Bandwidth Control, Broadcast Power Control Maximum PoE power of 86 watts The DIGITUS® L2 managed Gigabit PoE Switch with 8 PoE+ ports and 2 Gigabit SFP ports is ideal for use in various network topologies such as SMBs. The extensive L2 configuration options allow you to increase the performance and efficiency of your network. The switch offers the possibility to segment the network via VLAN, the QoS feature ensures smooth data exchange for time-critical applications. The Spanning Tree Protocol or the Port Trunk can be used to create fail-safe connections with other switches. The switch can be managed via the web interface, SNMP, SSH or Telnet. Technical Details 8-Port 10/100/1000Base-T with PoE support 2-Port Gigabit SFP Uplink PoE- Current output 44 ~ 57V DC voltage, max. 30 W per port PoE Power Mode A, PIN 1/2(+), 3/6(-) VLAN settings Port-based / Tag-based / MAC based / IP-based / Voice VLAN / VLAN mapping / Double VLAN Trunk settings, Rapid Spanning Tree support (IEEE802.1d STP, IEEE802.1w RSTP, IEEEEEE802.1s MSTP QoS support MAC address filtering, TCP/UDP filtering Tacacs+ and Radius authentication Supports non-blocking, non-head-of-line forwarding Supports back-pressure and bandwidth control at each port Store-and-forward technology for optimized data transfer Automatic speed and half/full duplex detection/adjustment Auto MDI / MDI-X function Backplane with 20Gbps Supports up to 8K MAC addresses Maximum output line 86 Watt Package content 8-Port L2 managed PoE Gigabit Switch Quick start guide Power supply Mounting accessories
