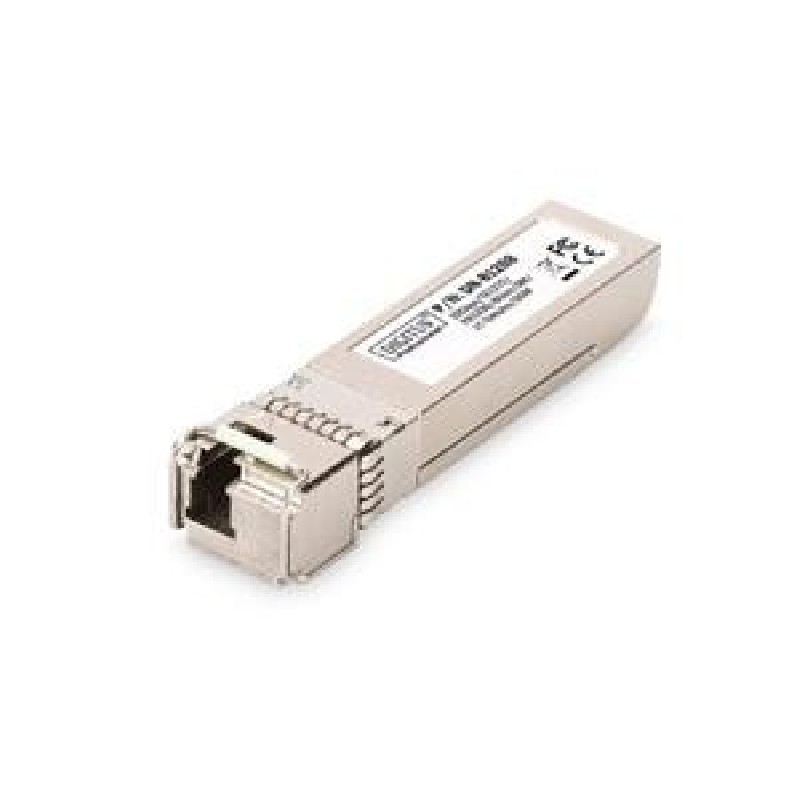

Digitus SFP+ 10 Gbps Bi-directional Module, Singlemode, 60km, Tx1270/Rx1330, LC Simplex Connector, with DDM feature

Digitus SFP+ 10 Gbps Bi-directional Module, Singlemode, 60km, Tx1270/Rx1330, LC Simplex Connector, with DDM feature z kategorie Switche.

Hlavní parametry:

• Vlnová délka: TX 1270 / RX 1330, Singlemode
• Jazyk návodu: Jiný

Popis výrobce (anglicky)

SFP+ 10 Gbps Bi-directional Module, Singlemode, 60km, Tx1270/Rx1330, LC Simplex Connector, with DDM feature The plug and play fiber connection The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers. Package Content l 10G SFP+ Module l  SFP+ (Small Form Factor Pluggable) module l  Connector: 1x LC Simplex l  Bidirectional WDM Module - Only one fiber is needed l  Wavelength: TX 1270 / RX 1330, Singlemode l  10Gbps Maximum Data Rate l  Transmission power: minimum 1 dBm, maximum 5 dBm l  Sensitivity Receiving Power: Minimum -22 dBm l  For a Distance of up to 60km l  Safe fast-locking mechanism l  Supports DDM (Digital Diagnostic Monitoring) l  High quality and excellent reliability l  Compliant to IEEE 802.3ae 10 Gigabit Standard l  Class 1 laser product compliant with EN 60825-1 l  Easy plug-and-play installation l  MSA (Multi Source Agreement) compliant l  Hot pluggable l  3.3V power supply l  Suitable for 09/125µm Singlemode Fiber Cables
