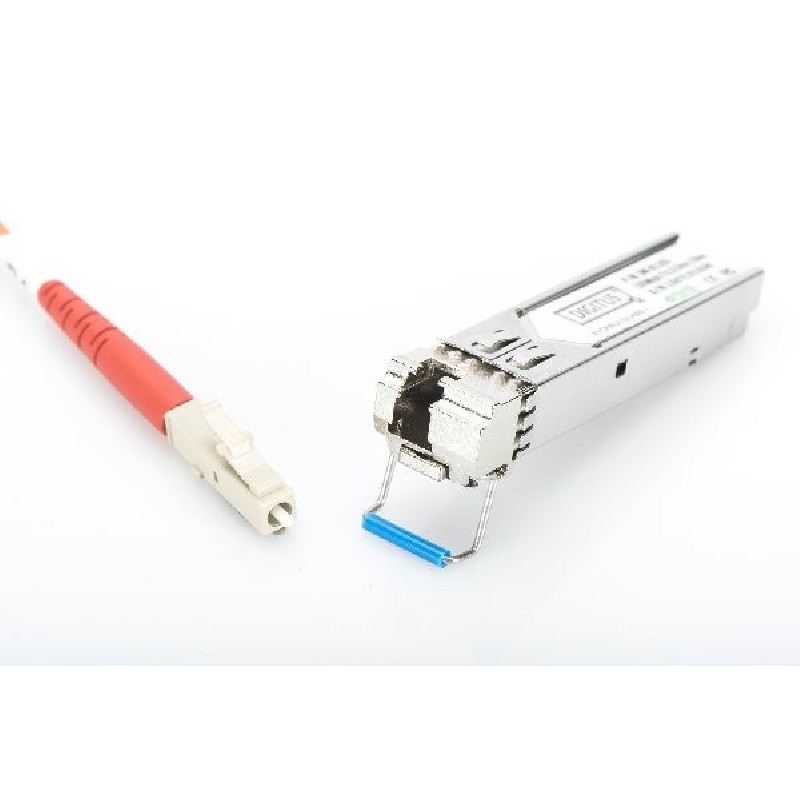

Digitus 155 Mbps BiDi WDM SFP Module, Up to 20km Singlemode, LC Simplex Connector 100Base-BX, Tx1310nm/Rx1550nm

Digitus 155 Mbps BiDi WDM SFP Module, Up to 20km Singlemode, LC Simplex Connector 100Base-BX, Tx1310nm/Rx1550nm z kategorie Switche.

Hlavní parametry:

• Vlnová délka: Tx 1310nm / Rx 1550nm
• Jazyk návodu: Jiný

Popis výrobce (anglicky)

DIGITUS 155 Mbps BiDi WDM SFP Module, Up to 20km Singlemode, LC Simplex Connector 100Base-BX, Tx1310nm/Rx1550nm The plug and play fiber connection The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers. Package Content l SFP module l  Mini GBIC SFP (Small Form Factor Pluggable) module l  Compatible with the following manufacturers: Allied Telesis, Allnet, CISCO, Dell, D-Link, Edimax, Hirschmann, Huawei, Intellinet, KTI Networks, Level One, Linksys, Netgear, PLANET, Tenda, TP-Link, TRENDnet, ZyXEL, ZTE l  Bidirectional WDM Module - Only one fiber is needed l  High quality and excellent reliability l  155 Mbps maximum data rate l  Class 1 laser product compliant with EN 60825-1 l  Easy plug-and-play installation l  MSA (Multi Source Agreement) compliant l  Hot pluggable l  Connector: 1x LC Simplex l  Wavelength: Tx 1310nm / Rx 1550nm l  Transmission Power: Minimum -15 dBm, Maximum -8 dBm l  Sensitivity Receiving Power: Minimum -32 dBm l  For a Distance of up to 20km l  Suitable for 09/125µm Singlemode Fiber Cables l  Safe fast-locking mechanism l  3.3V power supply l  Suitable Module for Opposite Side: DN-81104
