• Vyprodáno
HPE ANW 6300M 48G 4SFP56 TAA -Stock/.
search
  • HPE ANW 6300M 48G 4SFP56 TAA -Stock/.

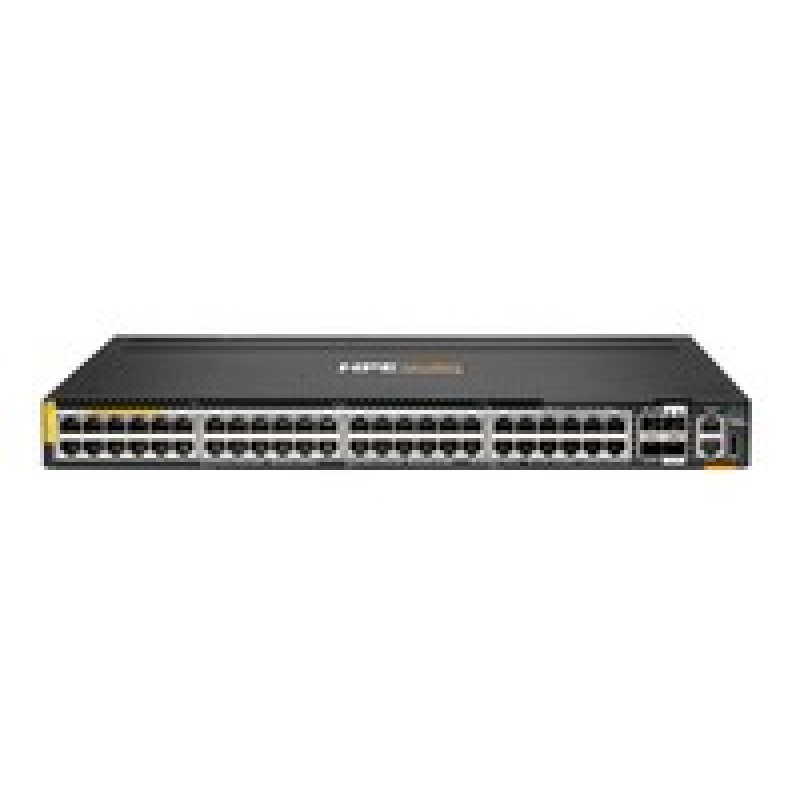

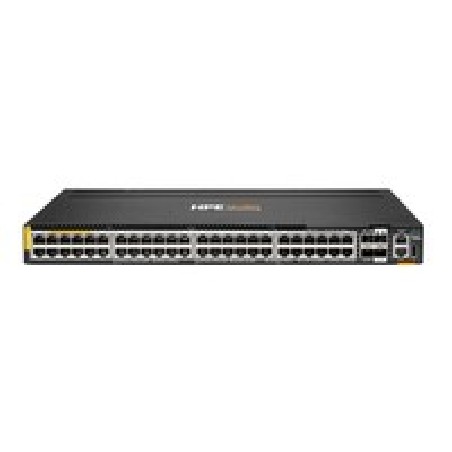

HPE ANW 6300M 48G 4SFP56 TAA -Stock/.

Hmotnost 6020 g / Šířka 44 mm / Hloubka 442 mm / Vnitřní paměť 8000 MB / Provozní rozsah teplot (T-T) 0 - 45 °C / Vstupní střídavé napětí 100 - 240 V

Všechny parametry
317 517 Kč
S DPH

262 411 Kč bez DPH

Momentálně nedostupné

Poptat tento produkt

Kód: S0G00A Výrobce: HPE

Popis

HPE ANW 6300M 48G 4SFP56 TAA -Stock/. z kategorie Switche.

Hlavní parametry:

  • Rychlost přenosu: 10/100/1000
  • Přepínací kapacita: 496 Gbit/s
  • Propustnost: 369 Mpps
  • Stohovatelný: Ano
  • Vnitřní paměť: 8000 MB
  • Flash paměť: 32000 MB
  • Vestavěný procesor: Ano
  • Základní frekvence procesoru: 1800 MHz
  • Typ vnitřní paměti: DDR4-SDRAM
  • Počet vrstev na paletě: 10

Popis výrobce (anglicky)

The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). Featuring a cloud-native design and fully programmable operating system (OS). The CX 6300 delivers advanced monitoring and troubleshooting with capabilities like a real-time network analytics engine, HPE Aruba Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations. A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high-speed uplinks and supports high-density IEEE 802.3bt high-power PoE with HPE Smart Rate multi-gigabit Ethernet.

What is new supporting point:
Manage through single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM [1]
Three stackable Layer 2-only CX 6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high performance access deployments
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48-port of HPE Smart Rate multi-gigabit (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.11bt PoE, all with telemetry and automation via the CX Network Analytics Engine

Parametry

Hmotnost6020 g
Šířka44 mm
Hloubka442 mm
Vnitřní paměť8000 MB
Provozní rozsah teplot (T-T)0 - 45 °C
Vstupní střídavé napětí100 - 240 V
Typ vnitřní pamětiDDR4-SDRAM
Počet vrstev na paletě10
Power over Ethernet (PoE)Ne
Hmotnost (imperiální jednotky)13.27 lbs
Základní frekvence procesoru1800 MHz
Přepínací kapacita496 Gbit/s
Rychlost přenosu10/100/1000
Vstupně-výstupní porty48x 10/100/1000 BaseT ports 4x 1G/10G/25G/50G [4] SFP ports 1x USB-C console port 1x USB Type-A host port 1x OOBM port [4] 450G capability is for use with 50G DACs for both interconnect and VSF stacking. 50G transceivers and DACs are not supported on S0E9
Propustnost369 Mpps
Flash paměť32000 MB
Vestavěný procesorAno
StohovatelnýAno
Poznámka ke spotřebě energieIdle: 56W 100 % Traffic Rate: 75W
Správa výkonuManagement flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Paměť a procesorCPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration
VentilátorSwitch has two fan tray slots and comes with one fan tray installed. Minimum one fan trays required. Optional second fan tray ordered separately. Fan trays are field replaceable and hot‐swappable. Each fan tray contains two fans.
Latence1 Gbps: 2.28 μs 10 Gbps: 1.46 μs 25 Gbps: 1.90 μs 50 Gbps: 3.49 μs
Poznámka k napájecímu zdroji2 field‐replaceable, hot‐swappable power supply slots 1 minimum power supply required (ordered separately). Supports JL085A PSU.
