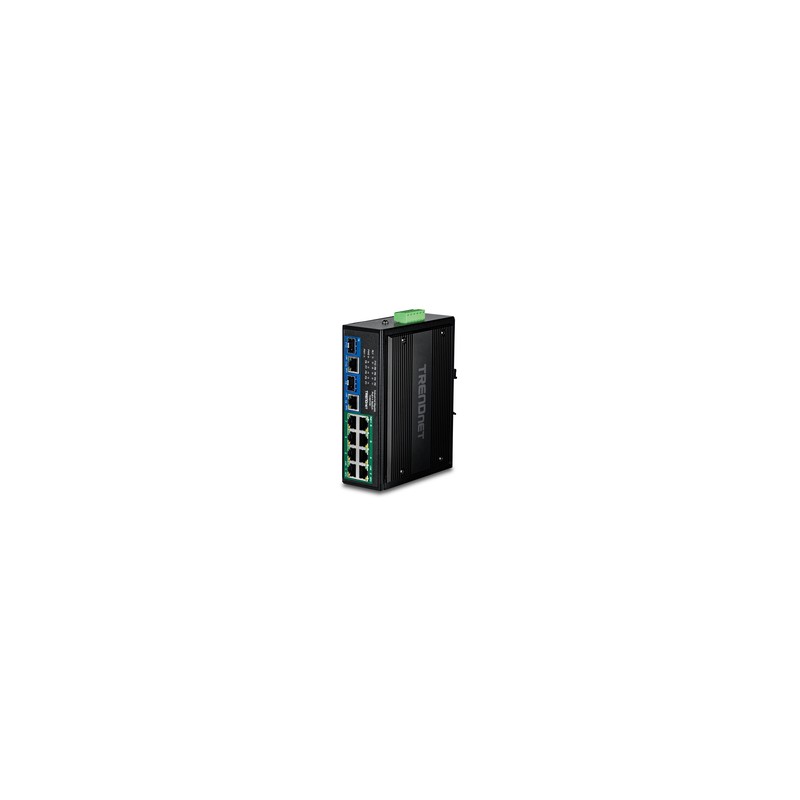

TRENDnet 10-Port Industrial Gigabit 400W/PoE++ DIN-Rail Switch
search
  • TRENDnet 10-Port Industrial Gigabit 400W/PoE++ DIN-Rail Switch

TRENDnet 10-Port Industrial Gigabit 400W/PoE++ DIN-Rail Switch

10 335 Kč
S DPH

Momentálně nedostupné

Kód: TIBG108

  • Barva: Černá
  • Certifikace: CE
  • Stupeň krytí IP: IP50
  • Hmotnost: 602 g
  • Šířka: 156 mm
  • Výška: 48 mm
Všechny parametry
10-Port Industrial Gigabit 400W PoE++ DIN-Rail Switch

Popis

TRENDnet's 10-Port Industrial Gigabit 400W PoE++ DIN-Rail Switch, model TI-BG108, delivers network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial PoE++ switch features a rugged IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). This hardened industrial PoE++ switch features copper gigabit PoE++ ports for high-powered device connections, and SFP ports that support 1000Base-FX modules for long-distance fiber networking applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Gigabit PoE++ DIN-Rail Switch by delivering up to 95W per port of PoE power and data over existing Ethernet cables. With PoE technology inside this industrial PoE++ switch, users only need one cable to deliver both data and power. Easily network PoE devices to this hardened industrial PoE++ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls.

Parametry

BarvaČerná
CertifikaceCE
Stupeň krytí IPIP50
Hmotnost602 g
Šířka156 mm
Výška48 mm
Hloubka122 mm
Síťové standardyIEEE 802.2x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3u,IEEE 802.3z
Provozní rozsah teplot (T-T)-40 - 75 °C
Typ napájeníDC/PoE
Podpora 10GNo
Power over Ethernet (PoE)Yes
Typ přepínacích portů Ethernetu (RJ-45)Gigabit Ethernet (10/100/1000)
Počet přepínacích portů Ethernetu (RJ-45)8
Přepínací kapacita20 Gbit/s
Střední doba mezi poruchami (MTBF)515469 h
Tabulka MAC adres11000 entries
Rychlost přenosu10/100/1000
Možnost montáže na zeďAno
Spotřeba energie (maximální)8.5 W
Podpora Jumbo framesYes
Materiál krytuMetal
Vyrovnávací paměť paketů0.4 MB
Celkový rozpočet Power over Ethernet (PoE)400 W
Plný duplexAno
Store-and-forwardAno
Počet slotů pro moduly SFP+2
Automatická negociaceAno
Přenosová rychlost přeposílání8.9 Mpps
Vstupní napětí DC48 - 56 V
Podporovaný typ Power over Ethernet (PoE)PoE++ (4PPoE)
Poloviční duplexAno
Počet portů Power over Ethernet 4PPoE (PoE++)8
Montáž na DIN lištuAno
