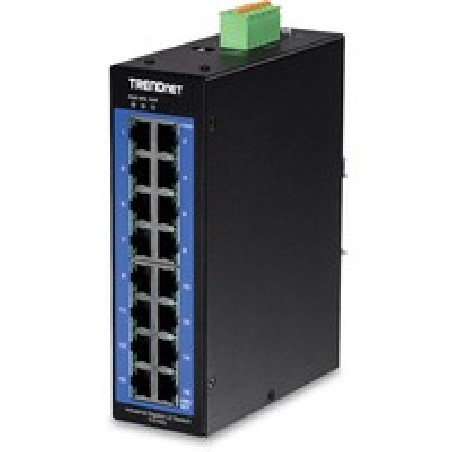

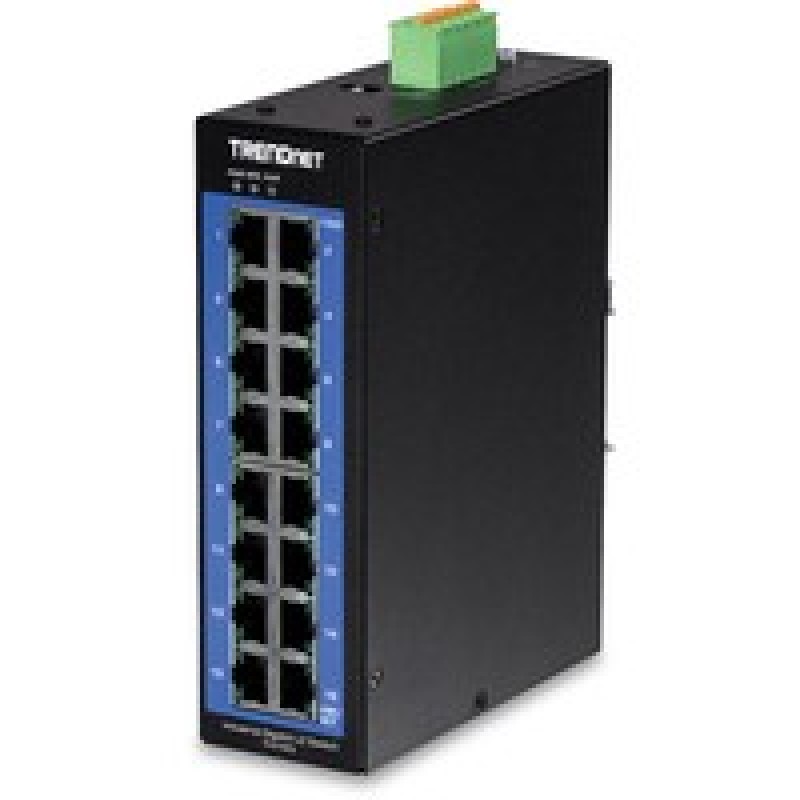

TRENDnet 16-P. GB L2 Mgd DIN-Rail Switch/Industrial

TRENDnet 16-P. GB L2 Mgd DIN-Rail Switch/Industrial z kategorie Switche.

Hlavní parametry:

• Počet portů: 16
• Podpora QoS: Ano
• Webová správa: Ano
• Vrstva přepínače: L2
• Typ přepínače: Řízený
• Podpora MIB: II RFC 1213, RFC 1493
• Protokol systémových událostí: Ano
• Počet instalovaných modulů SFP: 0
• Počet instalovaných SFP+ modulů: 0
• Typ přepínacích portů Ethernetu (RJ-45): Gigabit Ethernet (10/100/1000)

Popis výrobce (anglicky)

TRENDnet’s 16-Port Industrial Gigabit L2 Managed DIN-Rail Switch, model TI-G160i, delivers advanced management features with a 32Gbps switching capacity. Users are able to connect sixteen devices to the switch for high speed gigabit network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this a powerful solution for SMB networks.

Shock and Vibration Resistant
The industrial layer 2 managed switches are rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6).

Integration Flexibility
Managed layer 2 features include VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

Industrial Design
Equipped with an IP30 rated metal enclosure, the industrial layer 2 managed switch operates within a wide temperature range of -40° – 75° C (-40° – 167° F).

Network Ports
16 Gigabit Ports

Traffic Management
A broad range of network configurations are supported by: 802.3ad link aggregation, Private VLAN, 802.1Q VLAN, RTSP, Loopback Detection, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling

Access Control
Features such as ACL, MAC/port filtering, 802.1X, and RADIUS are compatible with layered access controls

Monitoring
RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions

DIN-Rail Mount
IP30 rated metal enclosure includes DIN-rail mounting bracket

Switching Capacity
32Gbps switching capacity

Redundant Power
Redundant power inputs with overload current protection (power supply sold separately: TI-M6024)

Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power

Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance

Extreme Temperatures
Industrial switch is rated for a wide operating temperature range of -40 – 75° C (-40 – 167° F)

Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point
Grounding point protects equipment from external electrical surges
