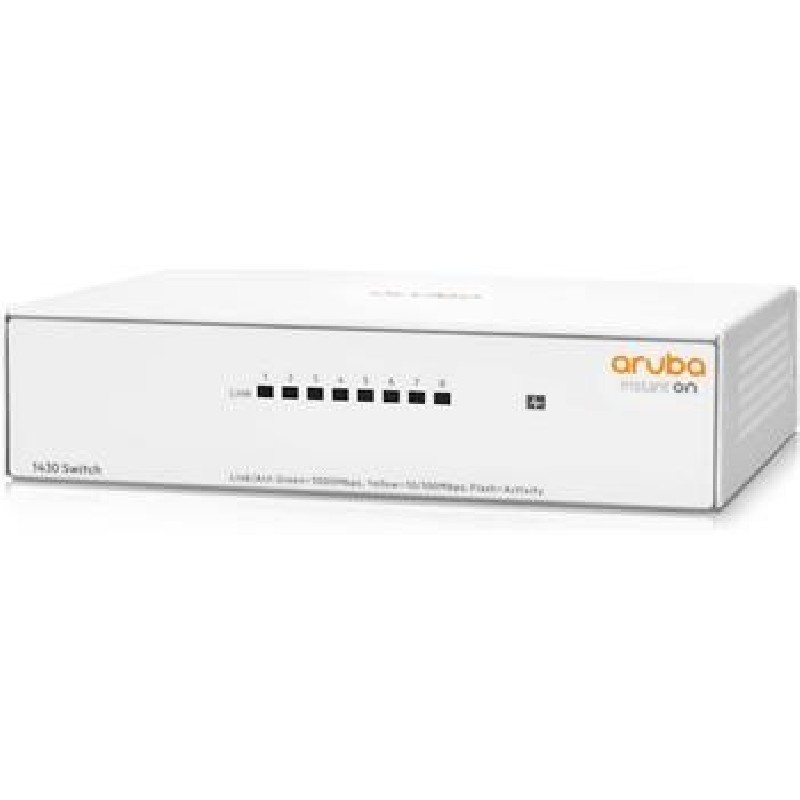

HPE Networking Instant On Switch 8p Gigabit 1430 (R8R45A)

HPE Networking Instant On Switch 8p Gigabit 1430

General Information

• Product Name: HPE Networking Instant On Switch 1430 8-Port Gigabit

• Product Number: R8R45A

• Differentiator:
  Unmanaged, plug-and-play switch for small businesses and home offices. No configuration required. Provides reliable Gigabit connectivity.

Ports

• Total Ports: 8 RJ-45 autosensing ports

• Port Speeds Supported:

  • 10/100/1000 Mbps (IEEE 802.3, 802.3u, 802.3ab)

• Duplex Modes:

  • 10/100 Mbps: Half or Full Duplex

  • 1000 Mbps: Full Duplex only

Performance

• Throughput: 11.90 Mpps (Million packets per second)

• Switching Capacity: 16 Gbps

• Packet Buffer Size: 2.0 Mb

• Memory: 128 Kb EEPROM

Power

• Power Supply: External Power Adapter

• Input Voltage: 100–240V AC

• Power Consumption:

  • Maximum: 12W

  • Idle: 1.7W

Management Features

• Type: Unmanaged (no management interface or configuration needed)

Environmental Specifications

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

Physical Characteristics

• Dimensions: 13.8 x 15.7 x 3.7 cm

• Weight: 0.59 kg

HPE Networking Instant On Switch 1430 Series

Key Features

• Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-, and 26-port models
• Up to 124W of PoE to power APs, IP Phones, and other IoT devices
• No configuration or management needed
• Plug-and-play with fully automated functions and zero ongoing maintenance
• Quality of Service (QoS) and flow control for improved network efficiency
• Fan-less with Energy Efficient Ethernet for low power consumption
• Class B certified for home office networks (5 and 8 port models)

Standard Features

Simplicity at its Best

• Plug-and-play switches that work right out of the box
• Zero configuration required

Reliable Connectivity

• Connect faster with Gigabit Ethernet speed
• PoE to power devices like APs and IP phones

We've Got You Covered

• Industry-leading limited lifetime warranty and support
• 24 x 7 chat support for entire warranty period

The Networking Instant On Differentiators

Better Together

HPE Networking Instant On products work together to provide a seamless Wi-Fi experience. Wired and wireless voice traffic is prioritized with high QoS priority end-to-end for optimal voice performance.

Industry-Leading Support and Warranty

Expert-level support and industry-leading limited lifetime warranty are also included, along with chat support for the life of the product.

Additional Highlights

• Plug-and-Play: Gigabit Ethernet speeds
• Duplex Support: Half/full-duplex auto-negotiating capability on access ports
• Fiber Uplinks: 26-port model includes two 1G SFP fiber ports for long-distance connectivity
• Simplified Cabling: Auto MDI/MDI-X for cable type detection
• PoE Certification: IEEE 802.3at (Class 4) and 802.3af compliant for APs, IP phones, etc.
• EAPoL Forwarding: Supports 802.1x authentication forwarding
• STP BPDU Forwarding: Ensures proper Spanning Tree operation to avoid loops

Traffic Optimization

• QoS: Prioritizes voice/video traffic via DSCP and IEEE 802.1p
• Flow Control: Helps prevent packet loss at congested nodes
• Jumbo Frame Support: Up to 9216 bytes for large file transfers

Warranty, Service, and Support

HPE Networking Instant On Limited Lifetime Support provides:

• 24x7 phone support for the first 90 days
• 24x7 chat support for the entire warranty period
• Community support for the lifetime of the product PE Networking Instant On Switch 1430 Overview

HPE Networking Instant On Switch 1430 Overview

Technology brings new revenue opportunities, more effective communication, and improved productivity to businesses of all sizes. Yet it also poses daily challenges of configuration and maintenance, especially for small businesses who lack IT support. Small offices and home offices need reliable network connectivity that's fast, configuration-free, and affordable for even the most budget-strapped businesses.

The HPE Networking Instant On Switch 1430 is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities—at an affordable price point—to help connect and share common resources like printers and access points, without any complicated network configuration.

With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.

Model Availability

The HPE Networking Instant On Switch 1430 series includes seven models in both PoE and non-PoE configurations:

• 1 × 5-port model
• 2 × 8-port models
• 2 × 16-port models
• 1 × 24-port model
• 1 × 26-port model with 2 SFP uplinks

PoE Capabilities

The PoE models support up to 30W per port (Class 4 PoE), suitable for powering:

• Access Points
• Surveillance Cameras
• VoIP Phones

Power budgets:

• 8-port PoE model: 64W
• 16-port PoE model: 124W

Designed for Small Business

All switches are fan-less, making them ideal for acoustically sensitive environments such as home offices and meeting rooms. These switches are unmanaged and require no configuration—they are not managed by the HPE Networking Instant On cloud portal.
