HPE NW CW Sw 24F 8G 4P 5150EI
search
  • HPE NW CW Sw 24F 8G 4P 5150EI

HPE NW CW Sw 24F 8G 4P 5150EI

Barva Černá / Vnitřní paměť 2 GB / Provozní rozsah teplot (T-T) -5 - 45 °C / Vstupní střídavé napětí 90 - 290 V / Výrobce procesoru ARM / Typ vnitřní paměti SDRAM / Flash

Všechny parametry
116 105 Kč
S DPH

95 955 Kč bez DPH

Momentálně nedostupné

Poptat tento produkt

Kód: S5T48A Výrobce: HPE

Popis

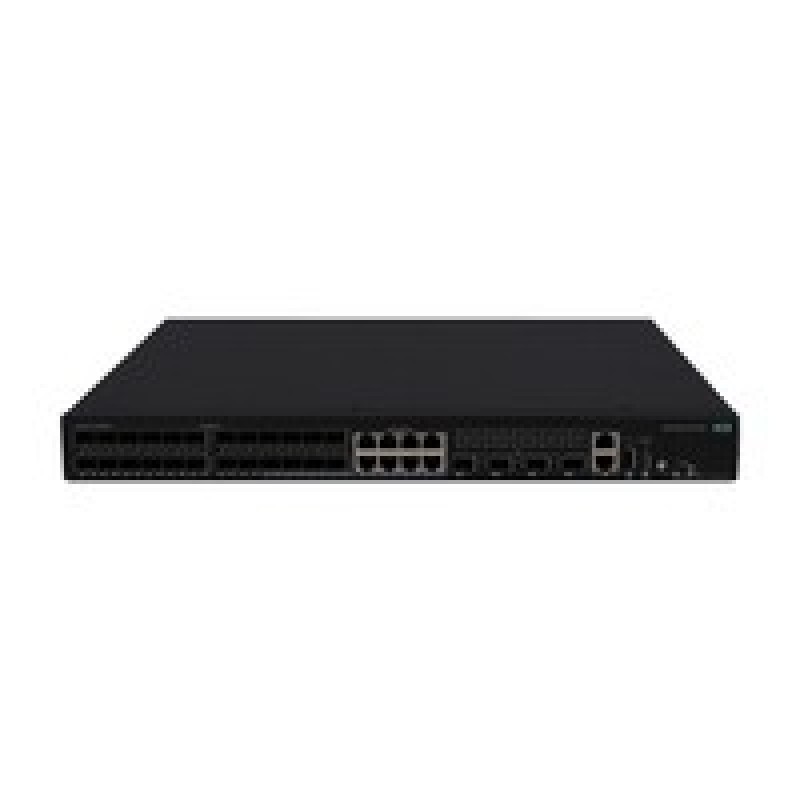

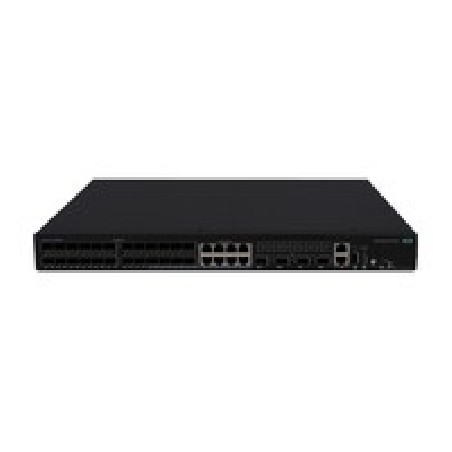

The HPE Networking Comware Switch Series 5150 EI is a family of stackable L3 access switches powered by HPE Comware OS delivering scalability and resiliency at a modest TCO for small, medium, and large enterprise campus networks. With 8, 24, and 48 gigabit ports, options for mixed copper and fiber connectivity, and up to 30 watts of 802.3at PoE per port this flexible series is ready to connect your edge clients, servers, and IoT devices. Built-in 10 GbE uplinks and Intelligent Resilient Fabric (IRF) stacking up to 9-members adds scale, resiliency, and simplification to your access network, enabling network operators to manage the whole stack as a single logical switch. Network visibility, management, and operation tools for this series include standard CLI and the Smart Management Center (SmartMC), embedded and ready to use at no additional cost. The series integrates with HPE Aruba Networking IMC, delivering a centralized point of control for your entire network.

What is new supporting point:
Family of stackable L3 access switches with 1 GbE downlinks, 10 GbE uplinks, and support OSPF, EIGRP, ISIS, RIP and routed access. PoE-enabled models deliver up to 30 watts of 802.3at power per port.
8, 24, and 48 port configurations available, supporting up to 176 Gbps of switching capacity and 130 Mpps of forwarding throughput. 24-port fiber option with redundant, dual modular power supplies.
Up to 432 ports of scalability with Intelligent Resilient Fabric (IRF) stacking up to 9-members for link and device aggregation across your network, enhancing redundancy and resource usage.
Standard CLI and Smart Management Center (SmartMC) embedded and ready to use, delivering network visibility, management, and operations at no additional cost.
Energy Efficient Ethernet and energy-saving green design initiatives support your sustainability efforts by automatically reducing power to idle ports and powering down unused ports.

Parametry

BarvaČerná
Vnitřní paměť2 GB
Provozní rozsah teplot (T-T)-5 - 45 °C
Vstupní střídavé napětí90 - 290 V
Výrobce procesoruARM
Typ vnitřní pamětiSDRAM / Flash
Počet vrstev na paletě9
Počet portů4
Typ přepínačeŘízený
Podpora 10GAno
Počet ventilátorů2 fan(s)
Power over Ethernet (PoE)Ne
Základní frekvence procesoru1200 MHz
Typ přepínacích portů Ethernetu (RJ-45)Gigabit Ethernet (10/100/1000)
Počet přepínacích portů Ethernetu (RJ-45)24
Přepínací kapacita128 Gbit/s
Montáž do rackuAno
Rychlost přenosu10/100/1000
Spotřeba energie (maximální)22 W
Propustnost95 Mpps
Flash paměť1024 MB
Vestavěný procesorAno
Podpora QoSAno
Vrstva přepínačeL3
Počet instalovaných modulů SFP0
Počet instalovaných SFP+ modulů0
Vyrovnávací paměť paketů1.5 MB
Počet slotů pro moduly SFP+4
StohovatelnýAno
Latence (1 Gbps)5 µs
Poznámka ke spotřebě energieIdle: Single AC: 11W, Dual AC: 13W; Single DC: 15W, Dual DC: 22W Full Load: Single AC: 35W, Dual AC: 37W; Single DC: 37W, Dual DC: 44W
Správa výkonuIMC - Intelligent Management Center; Command-line interface; SNMP manager; SmartMC GUI
Paměť a procesorCPU: Arm 1.2 GHz Dual Core 2 GB SDRAM, 1 GB Flash, 1.5 MB packet buffer
Vstupní napětí DC36 - 72 V
Latence (10 Gbps)3 µs
Latence1GE: < 5 μs; 10GE: < 3 μs
Rychlost portu24p SFP 1G 8p 10M/100M/1 G Combo 4p SFP+ 1G/10G
