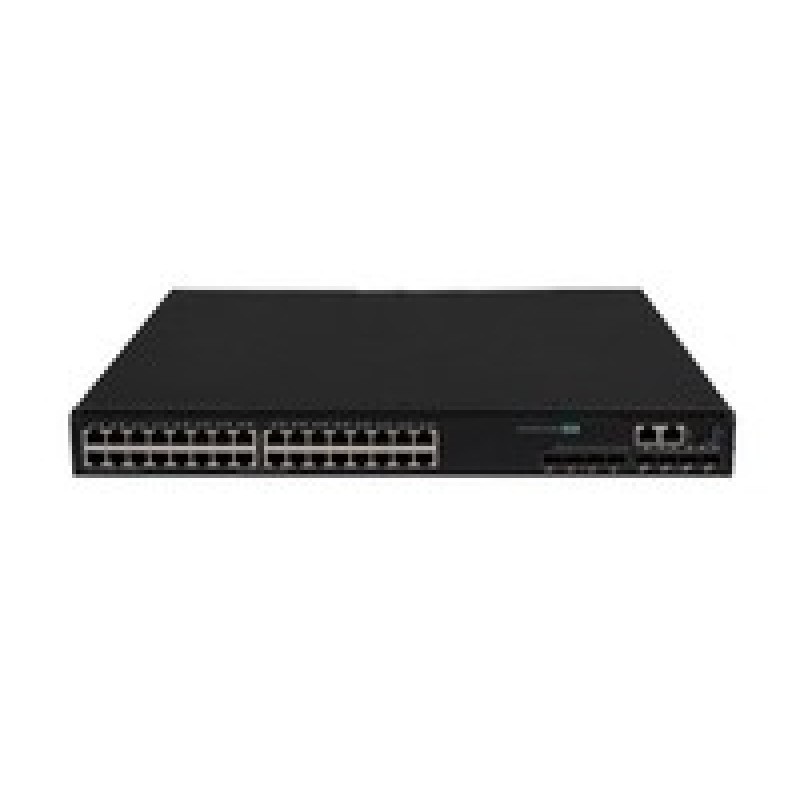

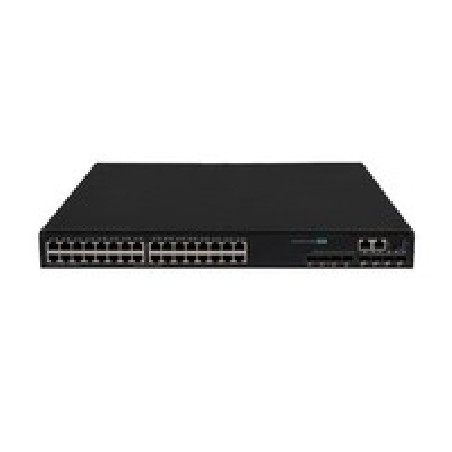

HPE NW CW Sw 32G PoE8 4P 4Y 1s 5550HI
search
  • HPE NW CW Sw 32G PoE8 4P 4Y 1s 5550HI

HPE NW CW Sw 32G PoE8 4P 4Y 1s 5550HI

Barva Černá / Vnitřní paměť 4000 MB / Vstupní střídavé napětí 90 - 290 V / Typ napájení AC/PoE / Výrobce procesoru ARM / Typ vnitřní paměti SDRAM / Flash

Všechny parametry
165 531 Kč
S DPH

136 802 Kč bez DPH

Momentálně nedostupné

Poptat tento produkt

Kód: S5T58A Výrobce: HPE EAN: 0190017788999

Popis

The HPE Networking Comware Switch Series 5550 HI is a family of stackable L3 access and aggregation switches powered by Comware delivering the performance, resiliency and flexibility for medium and large enterprise. Equipped with 36 and 48 MACsec-256 enabled 1G copper, fiber and combo ports, 4 built in 10/25G SFP28 uplinks, dual hot swappable power supply and fan trays, the 5550 HI also has one built-in expansion slots for the cross platform network modules used in the Comware 5000 series. The platform supports high density 90W PoE (802.3bt) per port, high performance IP routing and MPLS. Intelligent Resilient Fabric (IRF) stacking up to 9 members adds scale and high availability while Intelligent Network Quality Analyzer (iNQA) supports real-time visibility into network health and performance. In addition HPE IMC for centralized management, the 5550 HI comes with the built-in embedded management system SmartMC for configuration, visibility and monitoring at no additional cost.

What is new supporting point:
Improved hardware specification and scale: faster CPU, increased memory, up to 744 Gpbs bandwidth, 128K MAC table, improved ARP, ACL, IPv4/v6 unicast and multicast and MPLS LSP scale.
Diverse I/O options and upgraded uplinks: Flexible I/O 36 and 48 port copper, fiber and combo GE ports downlink, and expanded uplink ports 8x25G and 2x100G via the expansion model.
Enhanced security with all ports MacSec AES-256.
L3 multicast support.
High Densify PoE++: up to 48 port 90W PoE++/port.
Support containerizaton for application hosting.

Parametry

BarvaČerná
Vnitřní paměť4000 MB
Vstupní střídavé napětí90 - 290 V
Typ napájeníAC/PoE
Výrobce procesoruARM
Typ vnitřní pamětiSDRAM / Flash
Počet vrstev na paletě9
Počet portů4
Typ přepínačeŘízený
Podpora 10GAno
Power over Ethernet (PoE)Ano
Základní frekvence procesoru2000 MHz
Typ přepínacích portů Ethernetu (RJ-45)Gigabit Ethernet (10/100/1000)
Počet přepínacích portů Ethernetu (RJ-45)32
Přepínací kapacita744 Gbit/s
Montáž do rackuAno
Tabulka MAC adres128000 entries
Rychlost přenosu10/100/1000
Propustnost554 Mpps
Flash paměť4000 MB
Vestavěný procesorAno
Vrstva přepínačeL3
Vyrovnávací paměť paketů8 MB
Celkový rozpočet Power over Ethernet (PoE)2870 W
Počet slotů pro moduly SFP+4
StohovatelnýAno
Poznámka ke spotřebě energieIdle: Single AC: 48W, Dual AC: 59W Full Load: Single AC: 1705W, Dual AC: 3201W
Správa výkonuIMC - Intelligent Management Center; Command-line interface; SNMP manager; SmartMC Web GUI
Paměť a procesorCPU: ARM 2GHz Quard core 4GB SDRAM, 4GB Flash, 8M Packet buffer
Výkon PoE na port90 W
Počet portů SFP284
LatenceGE: < 5 μs, 10GE: < 3 μs, 40GE: <1.2μs
Rychlost portu32x 10/100/1000Base-T PoE++ ports; 4x 1G/10GBase-X SFP+ ports; 4x 10G/25GBase-X SFP28 ports; 1x RJ45 console port, 1x USB, 1x OOBM and 1 expansion slot
