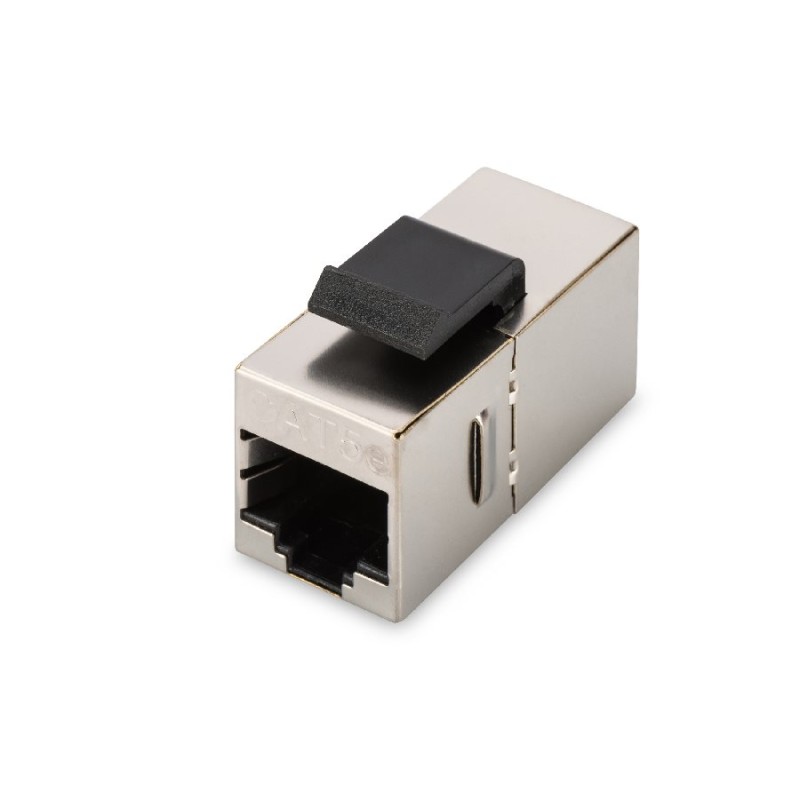

Digitus CAT 5e modular coupler, shielded RJ45 to RJ45, for panel connection

DIGITUS CAT 5e modular coupler, shielded RJ45 to RJ45, for panel connection The modular couplers from DIGITUS® are shielded and provide best performance and link quality for your network. They are equipped with 2 RJ45 sockets with the assignment 1:1 and are therefore suitable for mounting in Patch Panels. l Transmission properties: Category 5e l Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T l Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C l General properties: l Suitable for 483 mm (19") cabinet mounting l 2x RJ45 Female, 8P8C l 360° shield coverage l Connection 1:1 l Technical properties: l Housing material: Zinc die-cast, nickel-plated l RJ45 female material: ABS UL 94V-0 l RJ45 female contact: Tinned phosphor bronze, 0.5 ě gold-plated contact l RJ45 shielding: Tinned bronze l Conductor plate: FR4, UL 94V-0 l Physical properties: l Insertion force: 30N max. (IEC 60603-7-5) l Retention strength: 7.7 kg between jack and plug l Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) l Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 l Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 l IDC wire size: 22 – 26 AWG solid and stranded conductor l Insulation resistance: > 500 MOhm l Contact resistance: < 20 MilliOhm l Dielectric strength: 1000
