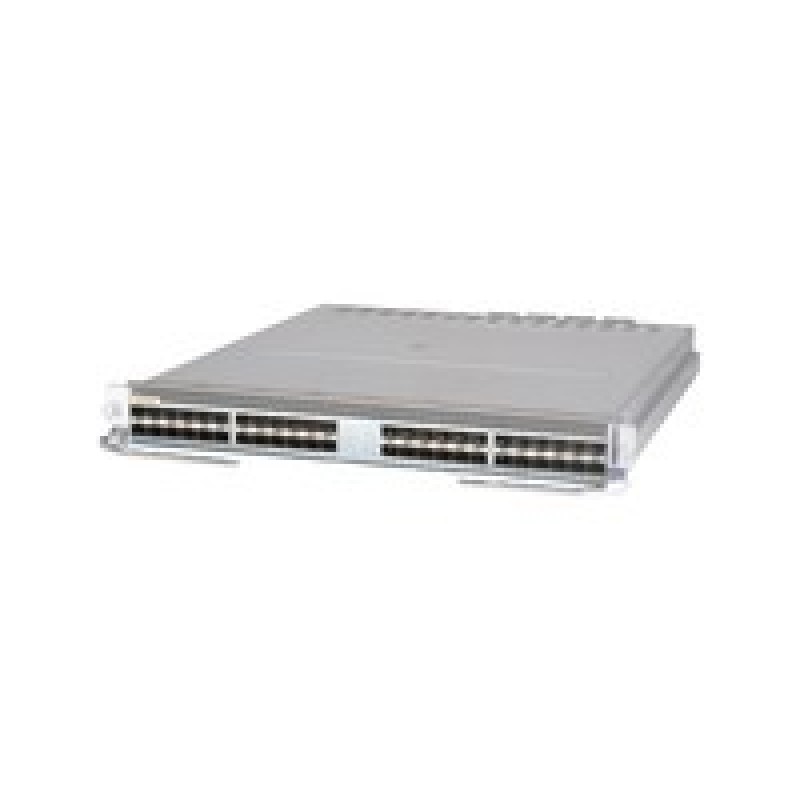

HPE 12900E 48P 10GBE SFP+ X M Stock/.
search
  • HPE 12900E 48P 10GBE SFP+ X M Stock/.

HPE 12900E 48P 10GBE SFP+ X M Stock/.

Barva Šedá / Formát 1U / Vnitřní paměť 8000 MB / Vstupní střídavé napětí 100 - 240 V / Typ napájení AC-to-DC / Typ vnitřní paměti DDR2

Všechny parametry
686 139 Kč
S DPH

567 057 Kč bez DPH

Momentálně nedostupné

Poptat tento produkt

Kód: JL846A Výrobce: HPE EAN: 0190017528045

Popis

The HPE Networking Comware Switch Series 12900E is a next-generation modular data center core switch designed to support virtualized data centers and the evolving needs of private and public cloud deployments. It offers unprecedented levels of performance, buffering, scale, and availability with high-density 1GbE, 10GbE, 40GbE,100GbE and 400GbE connectivity. The switch series includes 1-, 2-, 4-, 8- and 16-slot chassis. Ready for software-defined networking (SDN), the HPE Networking Comware Switch Series 12900E supports a full Layer 2 and Layer 3 feature set as well as advanced data center features to build resilient scalable fabrics and deliver outstanding convergence times.

What is new supporting point:
High density 10GbE, 40GbE, 100GbE and 400GbE connectivity with nonblocking wirespeed performance. (H2 modules supports 100GbE/400GbE with OS-Comware v9)
Introducing next-generation, high performance 400G/100G H2 modules with improved features ideal for Telco, Cloud Service Providers and large enterprises
New generation OS-Comware v9 available with H2 modules offers enhanced software features such as segment routing MPLS, egress ACL, egress rate limiting and others for highly distributed environments
Nonblocking, lossless Clos architecture
VXLAN, EVPN, IRF, and DRNI support for virtualized and cloud deployments
HB/HF, Type X and H2 modules support the same chassis, fan tray and power supply resulting in investment protection for customer

Parametry

BarvaŠedá
Formát1U
Vnitřní paměť8000 MB
Vstupní střídavé napětí100 - 240 V
Typ napájeníAC-to-DC
Typ vnitřní pamětiDDR2
Podpora 10GAno
Power over Ethernet (PoE)Ano
Základní frekvence procesoru1200 MHz
Typ přepínacích portů Ethernetu (RJ-45)10G Ethernet (100/1000/10000)
Počet přepínacích portů Ethernetu (RJ-45)0
Přepínací kapacita184000 Gbit/s
Montáž do rackuAno
Tabulka MAC adres16384 entries
Vstupně-výstupní porty16 I/O module slots, maximum; Supports a maximum of 768 40GbE, 768 10GbE, 1/10GbE copper, 1/10GbE fiber, 1GbE fiber, or 10/100/1000 ports, or 576 100GbE ports, or a combination
Propustnost92100 Mpps
Flash paměť1024 MB
Vestavěný procesorAno
Vrstva přepínačeL2/L3
Počet instalovaných SFP+ modulů48
StohovatelnýAno
Směrovací protokolyBGP4,IS-IS,MPLS,OSPF,OSPFv3,RIP,RIPng
Poznámka ke spotřebě energiePower output: 2400W
Správa výkonuIMC - Intelligent Management Center; Command-line interface; Out-of-band management (serial RS-232C); SNMP manager; Telnet; Terminal interface (serial RS-232C); Modem interface; IEEE 802.3 Ethernet MIB; Ethernet interface MIB
Paměť a procesorQuad Core MIPS64 at 1.2 GHz, 1 GB flash, 8 GB DDR2 SDRAM
Vstupní napětí DC48 - 60 V
LatenceLow latency under 5 microsecond latency (64-byte packets)
Poznámka k napájecímu zdroji16 power supply slots 1 minimum power supply required (ordered separately)
