- Vyprodáno

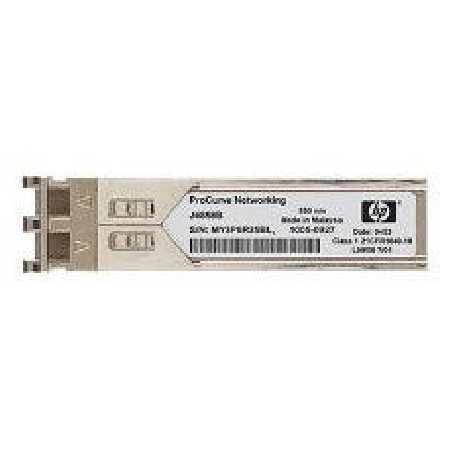

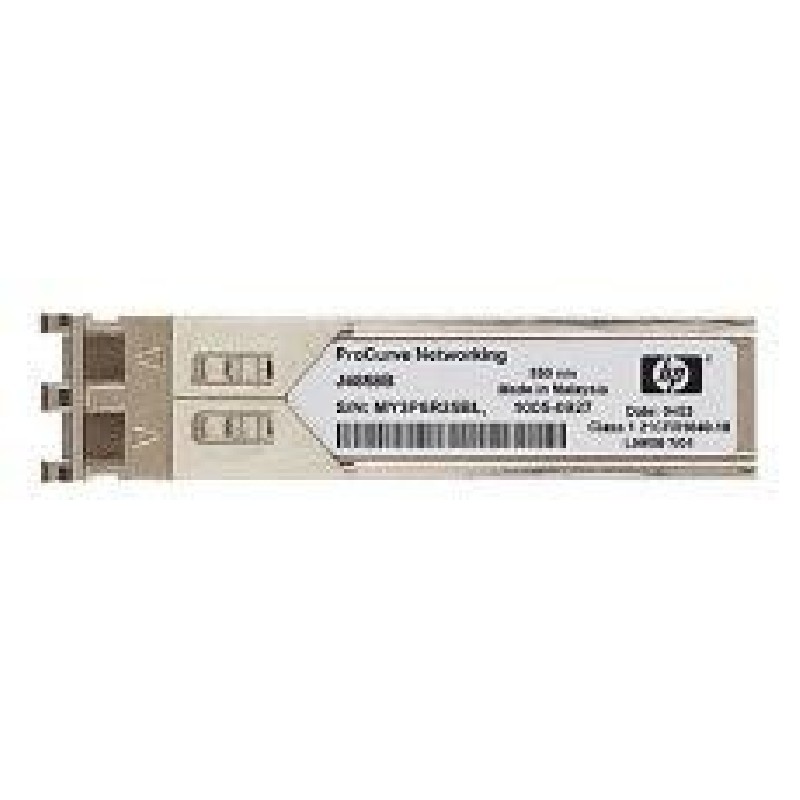

HPE X120 1G SFP LC LX Transceiver
Typ kabelu Either single mode or multimode / Hmotnost 20 g / Šířka 55 mm / Výška 12 mm / Hloubka 15 mm / Síťové standardy IEEE 802.3z
Všechny parametryKód: JD119B Výrobce: HPE EAN: 0885631249611
Popis
HP X120 1G SFP LC LX Transceiver (JD119B)
A small form-factor pluggable (SFP) Gigabig LX transceiver that provides a full duplex Gigabit solution up to 550m on MMF or 10Km on SMF
Ports: 1 SFP 1000BASE-LX port (IEEE 802.3z Type 1000BASE-LX)
Connectivity: Connector type: LC Wavelength: 1300 nm
Electrical characteristics: Power consumption typical: 0.8 W Power consumption maximum: 1.0 W Cable type: Either single mode or multimode Maximum distance: 550m for Multimode 10km for Singlemode Fiber type: Both
Compatible products: • HP 3100 EI Switch Series • HP MSR20 Series • HP MSR20-1x Series • HP MSR30 Series • HP 6600 Router Series • HP 8800 Router Series • HP MSR50 Series • HP 9500 Switch Series • HP 3600 EI Switch Series • HP 3600 SI Switch Series • HP 3610 Switch Series • HP 5120 EI Switch Series • HP 5120 SI Switch Series • HP 5500 EI Switch Series • HP 5500 SI Switch Series • HP 4500 Switch Series • HP 4800G Switch Series • HP 5500 Switch Series • HP 5500G Switch Series • HP WX3000 Wireless Switch Series • HP 1910 Switch Series • HP 4210 Switch Series • HP 5810-48G Switch • HP 4210G Switch Series • HP 1905 Switch Series • HP 1900-8G Switch • HP WX5000 Access Controller Series • HP 10500 Switch Series • HP 5830 Switch Series • HP 7500 Switch Series • HP 12500 Switch Series • HP 5800 Switch Series • HP 5820 Switch Series • HP 5830 Switch Series • HP 12500 Switch Series
Ports: 1 SFP 1000BASE-LX port (IEEE 802.3z Type 1000BASE-LX)
Connectivity: Connector type: LC Wavelength: 1300 nm
Electrical characteristics: Power consumption typical: 0.8 W Power consumption maximum: 1.0 W Cable type: Either single mode or multimode Maximum distance: 550m for Multimode 10km for Singlemode Fiber type: Both
Compatible products: • HP 3100 EI Switch Series • HP MSR20 Series • HP MSR20-1x Series • HP MSR30 Series • HP 6600 Router Series • HP 8800 Router Series • HP MSR50 Series • HP 9500 Switch Series • HP 3600 EI Switch Series • HP 3600 SI Switch Series • HP 3610 Switch Series • HP 5120 EI Switch Series • HP 5120 SI Switch Series • HP 5500 EI Switch Series • HP 5500 SI Switch Series • HP 4500 Switch Series • HP 4800G Switch Series • HP 5500 Switch Series • HP 5500G Switch Series • HP WX3000 Wireless Switch Series • HP 1910 Switch Series • HP 4210 Switch Series • HP 5810-48G Switch • HP 4210G Switch Series • HP 1905 Switch Series • HP 1900-8G Switch • HP WX5000 Access Controller Series • HP 10500 Switch Series • HP 5830 Switch Series • HP 7500 Switch Series • HP 12500 Switch Series • HP 5800 Switch Series • HP 5820 Switch Series • HP 5830 Switch Series • HP 12500 Switch Series
Parametry
| Typ kabelu | Either single mode or multimode |
|---|---|
| Hmotnost | 20 g |
| Šířka | 55 mm |
| Výška | 12 mm |
| Hloubka | 15 mm |
| Síťové standardy | IEEE 802.3z |
| Maximální přenosová rychlost | 1000 Mbit/s |
| Vlnová délka | 1300 nm |
| Optický konektor | LC |
| Typ rozhraní | SFP |
| Kód harmonizovaného systému | 85369010 |
| Kompatibilní produkty | HP 6600, 8800, MSR20, MSR20-1x, MSR30, 10500, 12500, 1900, 1905, 1910, 3100 EI, 3600 EI, 3600 SI, 3610, 4210, 4210G, 4500, 4800G, 5120 EI, 5120 SI, 5500 EI, 5500 HI, 5500 SI, 5800, 5820, 5830, 5900, 5920, 7500, 9500, E5500, E5500G, WX3000, WX5000 |
| Počet optických portů | 1 |
| Provedení switche | Moduly |
| Typ konektoru | LC |
| Standard transceiveru SFP | LX |
| Typ optického vlákna | Both |
