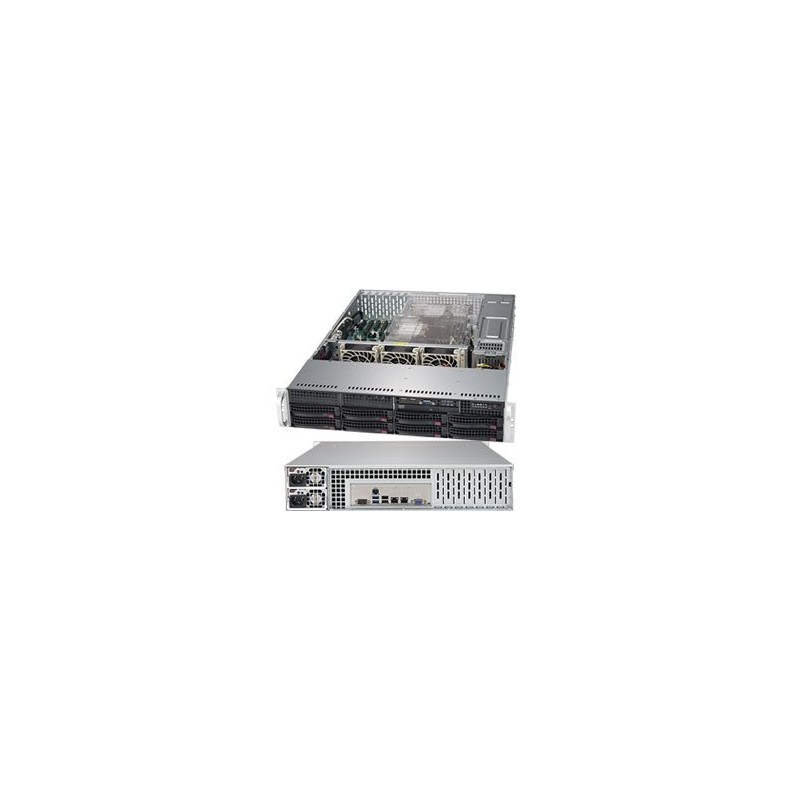

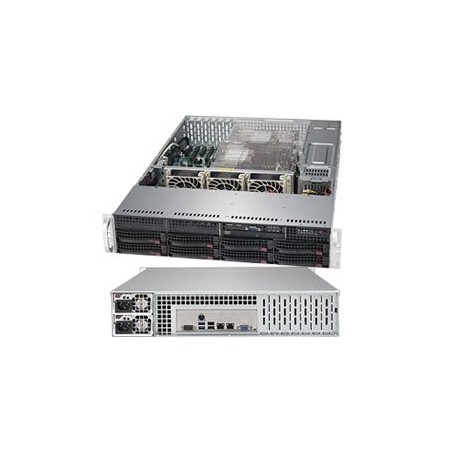

SUPERMICRO 2U server 2x LGA3647, iC621, 16x DDR4 ECC R, 8x SATA3 HS (3,5"), 2x10GbE, 2x 1000W(80+titanium), IPMI, LPB

Product SKUs SYS-6029P-TRT SuperServer 6029P-TRT (Black) Motherboard Super X11DPi-NT Processor/Cache CPU Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡, Dual UPI up to 10.4GT/s Support CPU TDP 70-205W Cores Up to 28 Cores Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) System Memory Memory Capacity 16 DIMM slots Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM†† Memory Type 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. On-Board Devices Chipset Intel® C622 chipset SATA SATA3 (6Gbps); RAID 0, 1, 5, 10 Network Controllers Intel® X722 10GBase-T Ethernet Controller Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Graphics ASPEED AST2500 BMC Input / Output SATA 8 SATA3 (6Gbps) ports LAN 2 RJ45 10GBase-T Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port USB Rear USB: 2 USB 3.0 + 2 USB 2.0 Front USB: 2 USB 2.0 USB Header: 1 Type A VGA 1 VGA port Serial Port / Header 2 Fast UART 16550 serial 2 COM Ports (1 rear, 1 header) DOM 2 SuperDOM (Disk on Module) ports System BIOS BIOS Type AMI UEFI Management Software Intel® Node Manager IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor® 5 Watch Dog Power Configurations ACPI / APM Power Management PC Health Monitoring CPU Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator FAN Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment Thermal Control for fan connectors Chassis Form Factor 2U Rackmount Model CSE-825TQC-R1K03LPB Dimensions and Weight Width 17.2" (437mm) Height 3.5" (89mm) Depth 25.5" (647mm) Package 26.7" (H) x 11.4" (W) x 34.5" (D) Weight Net Weight: 35.5 lbs (16.1 kg) Gross Weight: 69 lbs (31.2 kg) Available Colors Black Front Panel Buttons Power On/Off button System Reset button UID button LEDs Power status LED HDD activity LED Network activity LEDs System information (overheat/UID) LED Expansion Slots PCI-Express 4 PCI-E 3.0 x16 (Low-profile) 2 PCI-E 3.0 x8 (Low-profile) Drive Bays Hot-swap 8 Hot-swap 3.5" SATA drive bays Backplane 2U SAS/SATA backplane System Cooling Fans 3 Heavy duty 80mm fans with PWM fan speed control Power Supply (76mm Width) 1000W Redundant Power Supplies with PMBus Total Output Power 800W/1000W Dimension (W x H x L) 76 x 40 x 336 mm Input 100-127Vac / 12-9A / 50-60Hz 200-240Vac / 7.2-6A / 50-60Hz 200-240Vdc / 7.2-6A (for CCC only) +12V Max: 66.7A / Min. 0A (100-127Vac) Max: 83A / Min. 0A (200-240Vac) Max: 83A / Min. 0A (200-240Vdc) 5Vsb Max: 4A / Min: 0A Output Type 19 Pairs Gold Finger Connector Certification Titanium Level Certified96% Titanium Level [ Test Report ] Operating Environment RoHS RoHS Compliant Environmental Spec. Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
