HPE 5520 48G PoE+ 4SFP+ HI Swch
search
  • HPE 5520 48G PoE+ 4SFP+ HI Swch

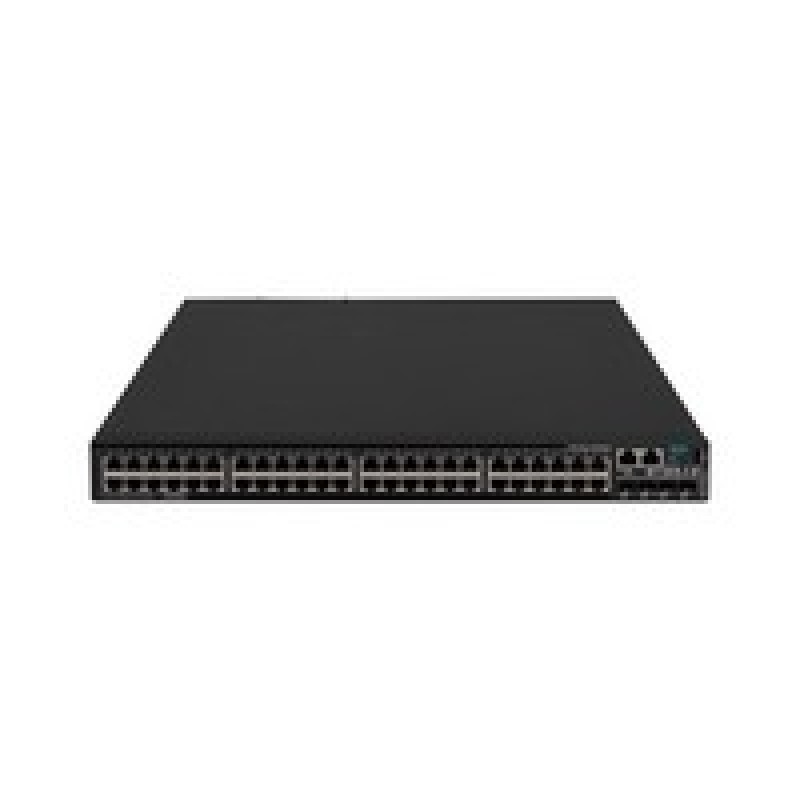

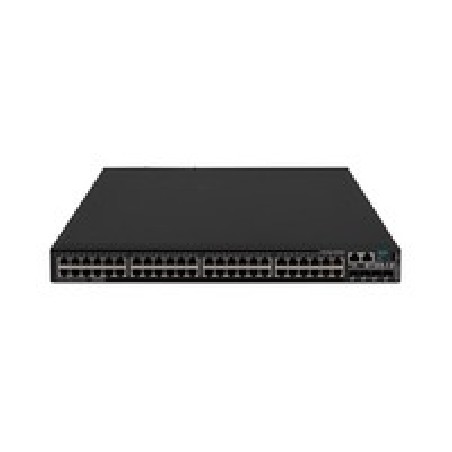

HPE 5520 48G PoE+ 4SFP+ HI Swch

Barva Černá / Hmotnost 9600 g / Šířka 440 mm / Výška 43.6 mm / Hloubka 460 mm / Vnitřní paměť 2 GB

Všechny parametry
294 098 Kč
S DPH

243 056 Kč bez DPH

Momentálně nedostupné

Poptat tento produkt

Kód: R8M29A Výrobce: HPE EAN: 0190017531014

Popis

The HPE Networking Comware Switch Series 5520 HI delivers superior performance, high availability and manageability with advanced features at the access and aggregation layer of medium and large enterprise networks. These switches deliver faster performance and advanced L3 features with support for larger ARP/MAC tables and Longest Prefix Match (LPM). VXLAN and EVPN enable greater scalability. Support for Virtual Router Redundancy Protocol (VRRP), Equal-Cost Multipath (ECMP) and Bi-directional Forwarding Detection (BFD) provide resiliency. Intelligent Resilient framework (IRF) ensures high availability. Support for IPv4/IPv6, OpenFlow, and MPLS/VPLS features for investment protection with an easy transition from IPv4 to IPv6 networks. These switches also include SmartMC at no additional cost, and when combined with Intelligent Management Center (IMC), it provides both embedded network management and enhanced network visibility.

What is new supporting point:
Smart Management Center (SmartMC) provides centralized network management and maintains dispersed network edge devices at no additional cost.
New made in USA TAA-compliant SKUs offer heightened security via manual and automated source code analysis to address common programming issues, easing concerns about 'made in China' products.
Virtual Extensible LAN (VXLAN) and Ethernet VPN (EVPN) enable both isolation and greater scalability of L2/L3 overlay services and multicast.
Larger MAC tables (up to 64K), Longest Prefix Match (LPM), switching capacity of up to 336 Gbps and throughput of upto 180 Mpps enable faster switching.

Parametry

BarvaČerná
Hmotnost9600 g
Šířka440 mm
Výška43.6 mm
Hloubka460 mm
Vnitřní paměť2 GB
Vstupní střídavé napětí90 - 264 V
Typ napájeníAC-to-DC
Typ vnitřní pamětiRAM
Počet vrstev na paletě9
Typ přepínačeŘízený
Podpora 10GAno
Power over Ethernet (PoE)Ano
Typ přepínacích portů Ethernetu (RJ-45)Gigabit Ethernet (10/100/1000)
Počet přepínacích portů Ethernetu (RJ-45)48
Přepínací kapacita336 Gbit/s
Montáž do rackuAno
Spotřeba energie (maximální)1110 W
Vstupně-výstupní porty(48) RJ-45 autosensing 10/100/1000 BASE-T ports( PoE+); Duplex: Ports 1-48 support 10BASE-T/100BASE-TX, 1000BASE-T (full only), (4) SFP+ 1/10GbE ports, (1) port expansion module slot.
Propustnost180 Mpps
Flash paměť512 MB
Vrstva přepínačeL3
Počet instalovaných SFP+ modulů4
Celkový rozpočet Power over Ethernet (PoE)1440 W
Počet portů Power over Ethernet Plus (PoE+)4
StohovatelnýAno
Poznámka ke spotřebě energie1110W (maximum)
Správa výkonuIMC - Intelligent Management Center; Command-line interface; SNMP manager
Paměť a procesor2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash
Vstupní napětí DC36 - 72 V
Latence1000 Mb Latency: < 5 μs 10 Gbps Latency: < 3 μs
