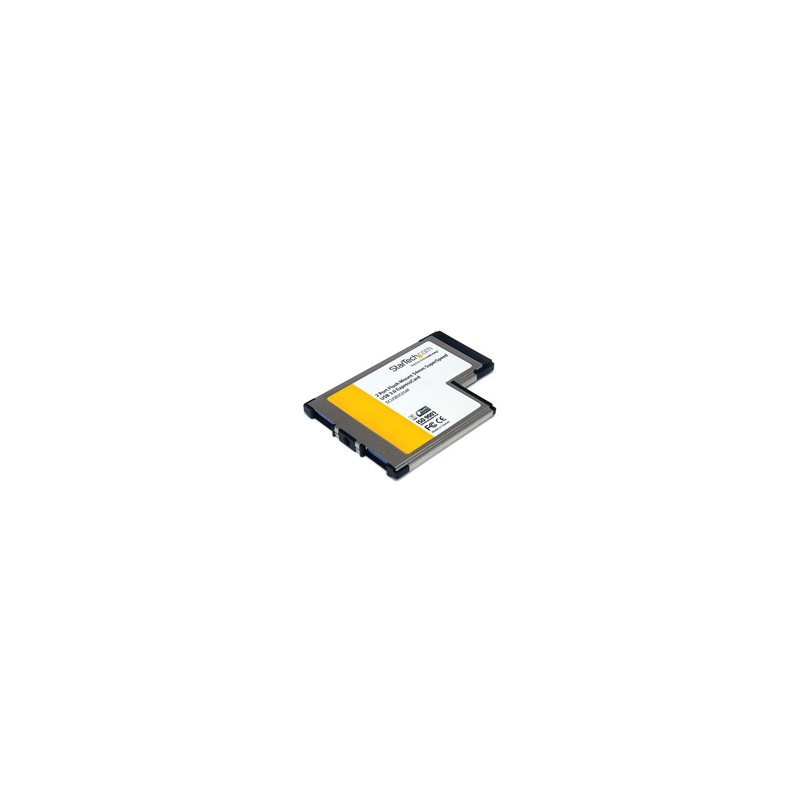

FLUSH MOUNT EXPRESSCARD USB 3/.
1 012 Kč
S DPH
Momentálně nedostupné
Kód: ECUSB3S254F
- Barva: Černá
- Hmotnost: 23,8 g
- Šířka: 54 mm
- Výška: 5 mm
- Hloubka: 74 mm
- Provozní rozsah teplot (T-T): 0 - 85 °C
StarTech.com 2 Port Flush Mount ExpressCard 54mm SuperSpeed USB 3.0 Card Adapter with UASP - Dual Port Laptop ExpressCard USB 3 Controller
Popis
Add two flushmount USB 3.0 (USB 3.2 Gen 1) ports to your ExpressCard-enabled laptop
The ECUSB3S254F 2-Port Flush Mount USB 3.2 Gen 1 ExpressCard Adapter lets you add two USB 3.2 Gen 1 ports to your ExpressCard-enabled laptop.
The USB 3.2 Gen 1 card uses a unique design that allows it to sit flush in a standard 54mm laptop ExpressCard slot, creating a seamless add-on that can be left installed even while on the move, without having to worry about impact damage to either the card or the ExpressCard slot.
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.
The SuperSpeed USB 3.2 Gen 1 Card supports data transfer rates of up to 5Gbps, and is backward compatible with USB 2.0 (at up to 480Mbps), or USB 1.1/1.0 at up to 1.5/1.2 Mbps respectively - the perfect laptop accessory for users to connect USB devices, both new and old.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows® 8 and Server 2012. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
The ECUSB3S254F 2-Port Flush Mount USB 3.2 Gen 1 ExpressCard Adapter lets you add two USB 3.2 Gen 1 ports to your ExpressCard-enabled laptop.
The USB 3.2 Gen 1 card uses a unique design that allows it to sit flush in a standard 54mm laptop ExpressCard slot, creating a seamless add-on that can be left installed even while on the move, without having to worry about impact damage to either the card or the ExpressCard slot.
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.
The SuperSpeed USB 3.2 Gen 1 Card supports data transfer rates of up to 5Gbps, and is backward compatible with USB 2.0 (at up to 480Mbps), or USB 1.1/1.0 at up to 1.5/1.2 Mbps respectively - the perfect laptop accessory for users to connect USB devices, both new and old.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows® 8 and Server 2012. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
Parametry
| Barva | Černá |
|---|---|
| Hmotnost | 23,8 g |
| Šířka | 54 mm |
| Výška | 5 mm |
| Hloubka | 74 mm |
| Provozní rozsah teplot (T-T) | 0 - 85 °C |
| Rozsah teplot při skladování (T-T) | -65 - 125 °C |
| Rozhraní | ExpressCard |
| Hmotnost včetně balení | 105 g |
| Šířka balení | 143 mm |
| Hloubka balení | 173 mm |
| Výška balení | 32 mm |
| Množství na kartonové balení | 75 kusů |
| Hmotnost balení | 105 g |
| Počet kusů v přepravním kartonu | 75 pc(s) |
| Podporované operační systémy Windows | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Hom |
| Délka vnějšího kartonu | 690 mm |
| Délka hlavního (vnějšího) balení | 690 mm |
| Šířka hlavního (vnějšího) balení | 350 mm |
| Výška hlavního (vnějšího) balení | 320 mm |
| Počet portů USB 3.2 (3.1 1. generace) Typ A | 2 |
| Podporované operační systémy | Windows XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ Server 2008 R2/ 7(32/64-bit) |
| Rychlost přenosu dat | 5 Gbit/s |
| Interní | Ano |
| Hostitelské rozhraní | ExpressCard |
| Vnitřní | Ano |
| Kód harmonizovaného systému | 84733020 |
| Kompatibilní operační systémy | Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit) |
| Chipset | NEC uPD720200 |
| Přenosová rychlost dat | 5 Gbit/s |
| Výstupní rozhraní | USB 3.2 Gen 1 (3.1 Gen 1) |
