PCIE SERIAL ADAPTER CARD/.
search
  • PCIE SERIAL ADAPTER CARD/.

PCIE SERIAL ADAPTER CARD/.

2 447 Kč
S DPH

Momentálně nedostupné

Kód: PEX4S553

  • Certifikace: CE, FCC, REACH
  • Hmotnost: 74 g
  • Šířka: 130 mm
  • Výška: 19 mm
  • Hloubka: 120 mm
  • Provozní rozsah teplot (T-T): 0 - 50 °C
Všechny parametry

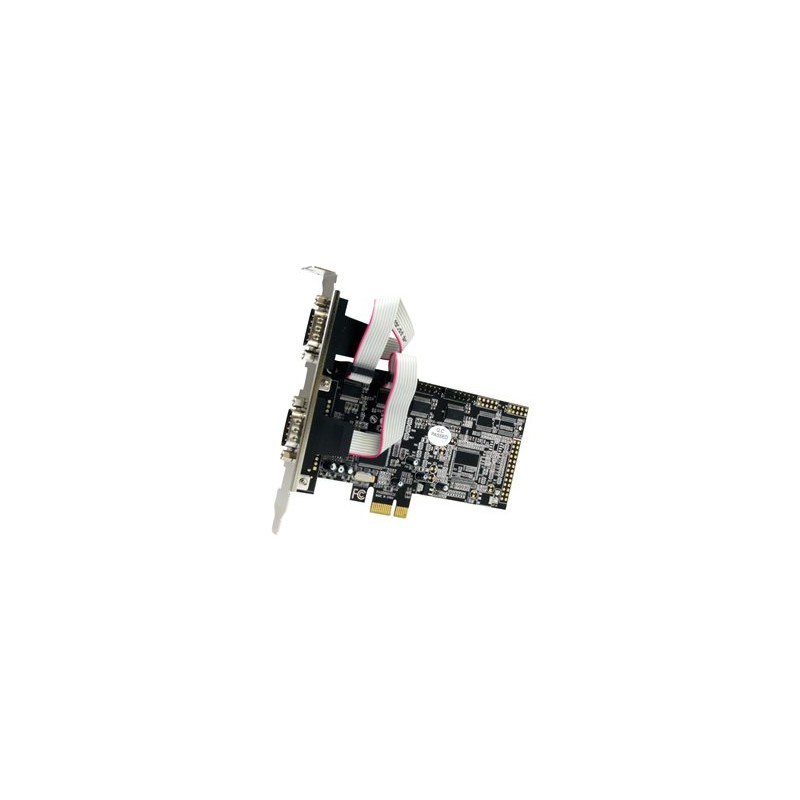

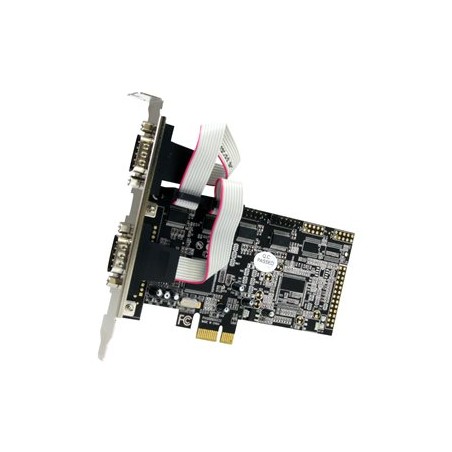

4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART

Popis

Add 4 RS-232 serial ports to your standard or small form factor computer through a PCI Express expansion slot
The PEX4S553 4-Port Native PCI Express RS232 Serial Adapter Card with 16550 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot.
Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards.
The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Native single-chip, single lane PCI Express chipset delivers true PCIe performance, up to 48% more efficient than bridge chip designs
- Standard and low profile/half-height brackets included to ensure fitment in any system

Parametry

CertifikaceCE, FCC, REACH
Hmotnost74 g
Šířka130 mm
Výška19 mm
Hloubka120 mm
Provozní rozsah teplot (T-T)0 - 50 °C
Rozsah teplot při skladování (T-T)-20 - 60 °C
Doporučená provozní relativní vlhkost5 - 85 %
RozhraníPCI Express
Návod na použitíAno
Hmotnost včetně balení230 g
Certifikáty shodyRoHS
Šířka balení141 mm
Hloubka balení170 mm
Výška balení30 mm
Hmotnost balení230 g
Podporované operační systémy MacMac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Podporované operační systémy WindowsWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64
Množství1
Podporované operační systémy LinuxAno
InterníAno
Počet sériových portů4
Ostatní podporované operační systémyWindows Embedded POSReady 2009, Windows Embedded Standard 2009, Windows XP Embedded
Hostitelské rozhraníPCI Express
VnitřníAno
Kód harmonizovaného systému84733020
Obsah krabiceAno
Střední doba mezi poruchami (MTBF)26280 h
Typ sériového rozhraníRS-232
Přenosová rychlost128 Kbit/s
ChipsetASIX - MCS9904CV-AA
Podporované serverové operační systémyWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Dodávané ovladačeAno
Výstupní rozhraníSériový
Datové bity5, 6, 7, 8
FIFO (první dovnitř, první ven)256 B
Přenosová rychlost (baud)128 Kbit/s
Montážní držáky v baleníAno
