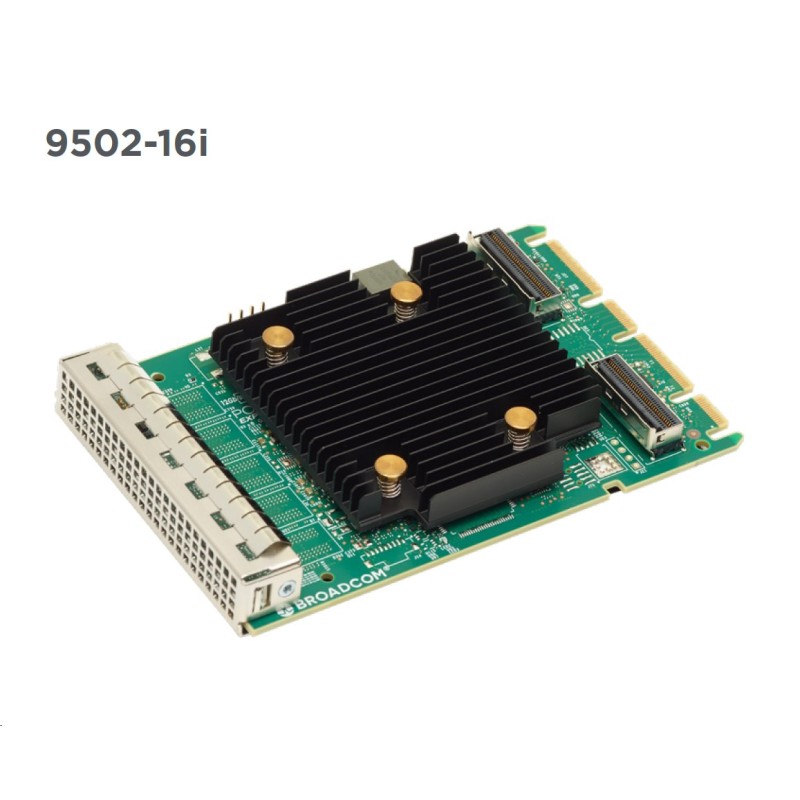

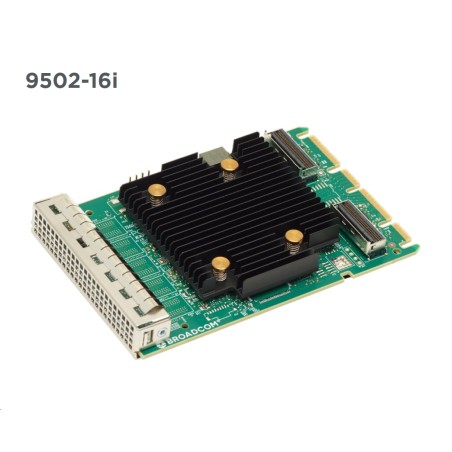

Broadcom HBA 9502-16i, 12Gb/s, NVMe/SAS/SATA, 2x SFF-8654 x8, OCP 3.0 (PCIe 4.0 x8), SAS3816 ROC
19 344 Kč
S DPH
Momentálně nedostupné
Kód: 55013702
- Typ: SATA / SAS
- Formát: OCP 3.0 NIC SFF
- Generace: 12 Gb/s
- Vnitřní porty: 16
- Software pro správu: LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
Broadcom 9502-16i
Popis
HBA 9502-16i Tri-Mode OCP 3.0 Storage Adapter
PCIe Gen 4.0 Tri-Mode HBA OCP 3.0 SFF storage adapters utilizing a NIC small form factor
The 16-port, OCP 3.0 SFF Tri-Mode 9502-16i NVMe/SAS/SATA HBA enables more flexibility when integrating storage into the server, where a small form factor is required.
The OCP HBA enables the operation of NVMe, SAS or SATA devices in a single drive bay. By using an OCP slot for storage, users can free up a standard PCIe adapter slot for other uses.
- Connects up to 1024 SAS/SATA devices or 32 NVMe devices
- Provides maximum connectivity and performance for high-end servers and applications
- Support critical applications with the bandwidth of PCIe 4.0 connectivity
- Universal Bay Management (UBM) ready
- SFF-9402 compliant connector pinout
| Product | Manufacturer Part # | What's in the Box |
|---|---|---|
| HBA 9502-16i | 05-50137-02 | 9502-16i HBA adapter |
| Specification | Value |
|---|---|
| Lifecycle | Active |
| Distributor Inventory | No |
| Brackets | Internal Lock |
| Connectors | 2x8 SFF-8654 (Vertical) |
| Devices Supported | SAS/SATA: 1024, NVMe: 32 |
| FORM FACTOR | OCP 3.0 NIC SFF |
| Generation | 12 Gb/s |
| Host Bus Type | x8 lane PCI Express 4.0 |
| Internal Ports | 16 |
| I/O Controller | SAS3816 |
| Management Software | LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) |
| MTBF | > 5,000,000 hours at 40° C |
| OCP Thermal Tier | Tier 4 |
| Operating Humidity | 20% to 80% Non-condensing |
| Operating Temperature°C | 0°C to 55°C |
| OS Support | Microsoft Windows, VMware vSphere, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD |
| Physical Dimensions | 115.00 (+/-0.13) mm x 76.00 (+/-0.13) mm |
| Regulatory Certifications | Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE |
| Typical Power | 9W |
| Warranty | 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba |
| What's in the box | 9502-16i HBA, Low Profile Bracket, FH |
Parametry
| Typ | SATA / SAS |
|---|---|
| Formát | OCP 3.0 NIC SFF |
| Generace | 12 Gb/s |
| Vnitřní porty | 16 |
| Software pro správu | LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) |
Ke stažení
- Datasheet EN (553.76KB)
