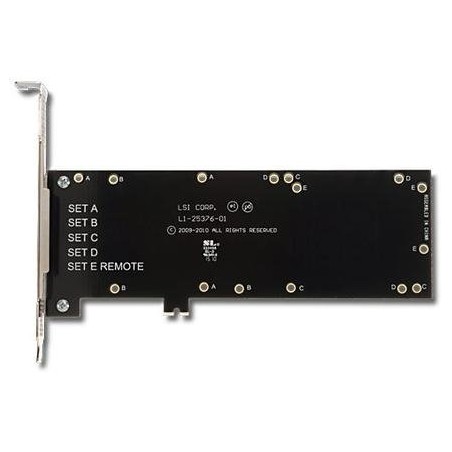

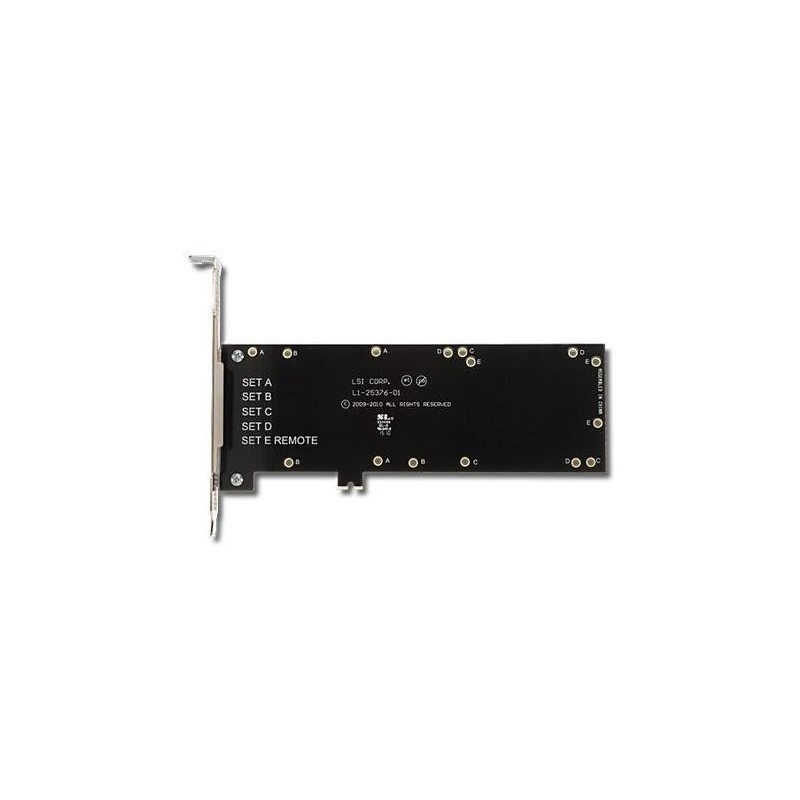

Broadcom LSI Remote Battery Mounting Bracket BBU-BRACKET-05 for LSI BBUs and CacheVault Power Modules

Avago-LSI BBUBRACKET05 LSI00291 L52537600 - Držák záložní baterie Key features 1yr Warranty BBU-BRACKET-05 Part #: LSI00291 The new LSI BBU-BRACKET-05 is a remote mounting board that allows customers to remotely mount their battery backup or CacheVault Power Module (CVPM) in an adjacent server PCI slot. The BBU-BRACKET-05 allows one or two BBUs or CVPMs to be attached at a time and comes with a full-height bracket installed, while an optional low-profile bracket is included as part of the kit. Both brackets are ‘vented’ to allow for maximum cooling air flow in the vicinity of the battery. LSI BBU-BRACKET-05 is a remote mounting board that allows customers to remotely mount their battery backup or CacheVault Power Module (CVPM) in an adjacent server PCI slot. Compatible Products : LSIiBBU06 (Requires LSI00260) LSIiBBU07 (Requires LSI00260) LSIiBBU08 (Requires LSI00260 when using 9260-4i/8i controllers) LSIiBBU09 All LSI CacheVault Power Modules Specifications Solution Provided : Remote Mounting Bracket for LSI BBUs and CacheVault Power Modules Packaging Configuration : Kit Weight (lbs) : 1 lbs / 0.45kg Product Dimensions ; 6" x 6" x 2" / 15.2 x 15.2 x 5 cm Warranty 1 Year In the Box BBU-BRACKET-05 with vented full height bracket installed, Quick Installation Guide, and vented LP bracket
