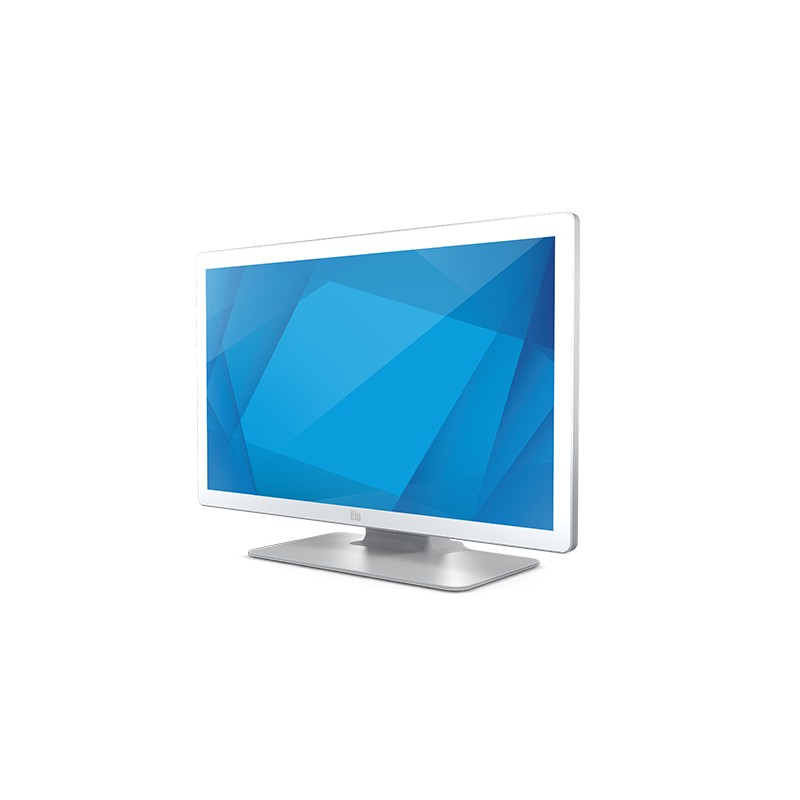

Elo 2703LM 27-inch wide LCD Medical Grade Touch Monitor E659793
26 478 Kč
S DPH
Skladem
Kód: E659793
- Barva: Bílá
- Úhlopříčka displeje: 27"
- Rozlišení displeje: 1920 x 1080 pixels
- Typ HD rozlišení: Full HD
- Nativní poměr stran: 16:9
- Stupeň krytí IP: IP54
27", 1920 x 1080, 16:9, TFT, 225 nits, HDMI, VGA, USB, White
Popis
DICOM Medical Grade Touchscreen Monitors
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
DICOM 14 - Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
DICOM 14 - Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.
Parametry
| Barva | Bílá |
|---|---|
| Úhlopříčka displeje | 27" |
| Rozlišení displeje | 1920 x 1080 pixels |
| Typ HD rozlišení | Full HD |
| Nativní poměr stran | 16:9 |
| Stupeň krytí IP | IP54 |
| Typ panelu | LCD |
| Dotyková obrazovka | Ano |
| Antireflexní obrazovka | Ano |
| Tvar obrazovky | Plochý |
| Vodorovný pozorovací úhel | 178 ° |
| Svislý pozorovací úhel | 178 ° |
| Vestavěné reproduktory | Ano |
| Provozní rozsah teplot (T-T) | 0 - 40 °C |
| Rozsah teplot při skladování (T-T) | -20 - 60 °C |
| Doporučená provozní relativní vlhkost | 20 - 80 % |
| Rozsah relativní vlhkosti při skladování (H-H) | 10 - 95 % |
| Počet HDMI portů | 1 |
| Podpora standardu VESA pro montáž | Ano |
| Nastavení výšky | Ano |
| Spotřeba energie (v pohotovosti) | 1 W |
| Spotřeba energie (vypnuto) | 0.24 W |
| Dodávané kabely | HDMI,USB,VGA |
| Certifikáty shody | RoHS |
| Rozlišení | 1920x1080 (Full HD) |
| Typ displeje | LCD TN |
| Dotykový displej | ano |
| Kontrast | 200:1 – 1 000:1 |
| Šířka balení | 764 mm |
| Hloubka balení | 560 mm |
| Výška balení | 322 mm |
| Hmotnost balení | 14280 g |
| USB port | Ano |
| LED indikátory | Výkon |
| Vestavěná kamera | Ne |
| Reproduktory | Ano |
| Technologie | LCD dotykový |
| Integrovaný TV tuner | Ne |
| Jas | 220 cd/m2 |
| Odezva | 14 ms |
| Kontrastní poměr (typický) | 1000:1 |
| Maximální rychlost obnovy | 70 Hz |
| Jas displeje | 270 cd/m² |
| Konektor displeje | NE |
| Spotřeba energie (typická) | 17.37 W |
| Technologie dotykové obrazovky | PCT (projektovaný kapacitní systém) |
| Typ napájecího zdroje | Stejnosměrný proud |
| Střední doba mezi poruchami (MTBF) | 50000 h |
| Počet barev displeje | 16.78 million colours |
| Viditelná velikost (vodorovně) | 597.88 mm |
| Viditelná velikost (svisle) | 336.31 mm |
| On Screen Display (OSD) | Ano |
| Spotřeba energie (SDR) na 1000 hodin | 21 kWh |
| Podporovaná grafická rozlišení | 640 x 400,640 x 480 (VGA),720 x 400,800 x 500,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 800 (WXGA),1366 x 768,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080) |
| Úhlopříčka displeje (metrická) | 68.6 cm |
| Jmenovitý RMS výkon | 2 W |
| Jazyky On Screen Display (OSD) | CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN |
| Energetická třída (SDR) | E |
| Stupnice energetické účinnosti | A to G |
| Šířka se stojanem | 647.6 mm |
| Hloubka se stojanem | 233 mm |
| Hmotnost (se stojanem) | 10270 g |
| Výška (se stojanem) | 450.9 mm |
| Hmotnost (bez stojanu) | 7130 g |
| RJ45 | Ne |
| Formát zobrazení | 16:9 (širokoúhlý) |
| VGA | Ano |
| Port DVI | Ne |
| HDMI počet | 0 |
| Povrch displeje | Matný |
| Pivot | Ne |
| USB-C zpětné nabíjení ntb | Ne |
| USB-C integrovaná dokovací stanice | Ne |
| Prohnutá obrazovka | Ne |
| Podpora VESA | Ano |
| Možnost montáže na zeď | Ano |
| Spotřeba energie (maximální) | 22.4 W |
| Počet jazyků OSD | 8 |
| Počet současných dotykových bodů | 10 |
| Viditelná plocha displeje (ŠxV) | 597.88 x 336.31 mm |
