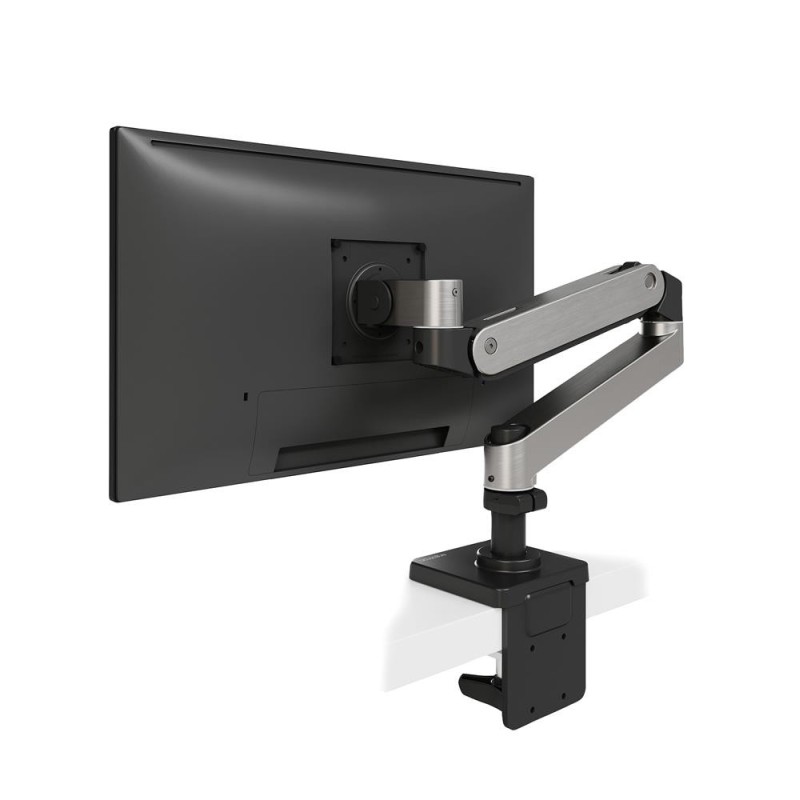

Ergotron LX Pro Arm Single/Display Desk Mount

ERGOTRON LX Pro Desk Monitor Arm, stolní rameno, monitor, leštěný hliník

Introducing the LX Pro—an evolution of the industry-leading LX design. LX Pro combines everything you love about the LX arm with modern enhancements that further streamline installation and maximize ergonomics. It's bound to become the preferred solution when upgrading a workstation. Experience the perfect blend of style and functionality!

Part Number: 45-682-026
Product Weight: 3.7 kg
Shipping Weight: 5.0 kg
Shipping Dimensions: 16.3" x 13.8" x 6.5" (41.5 x 35 x 16.5 cm)
Includes arm, extension, monitor pivot, 2-piece desk clamp, standard base, 5" pole, pole collar, attachment hardware
Desk clamp attaches to surface edge 0.4" to 2.4" (10 to 60 mm) thick
Requires under-surface area ? 2.8" (70 mm) deep to be clear of obstacles
A tension-level indicator provides a visual reference when counterbalancing an arm with its device; when installing multiple arms, note the first arm’s setting for quicker adjustment
Built-in rotation-stop on the extension can be engaged to limit side-to-side motion to deter impacts with wall
Can be configured to hold a laptop instead of a display; also order the accessory Laptop Tray (50-193-200)
Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Aluminum construction offers greater durability and enhanced aesthetics
† LCD screen size is approximate. This size may be exceeded if display does not surpass weight capacity
* Weight Capacity: 4 to 22 lbs (1.8 to 10 kg). Display depth greater than 3.6" (9 cm) may affect weight capacity
‡ Tilt Range: 70° backward, 15° forward
§ Overall side-to-side panning motion is 360°, with 3 turning points at base/extension (360°), extension/arm (360°), and arm/pivot (180°). Motion at the base/extension point can be restricted to 180° by engaging the built-in rotation stop
Maximum Extension: ? 25" (64 cm)
Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
